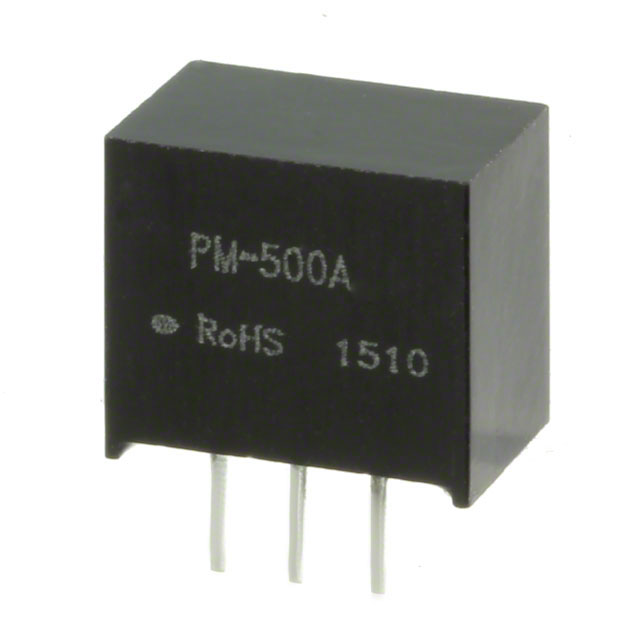

PM-500 Series
Manufacturer: Volgen + Furuno
Beta
⌘K
DC DC CONVERTER 15V
| Part | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Number of Outputs | Efficiency | Mounting Type | Features | Voltage - Input (Min) [Min] | Applications | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Package / Case | Current - Output (Max) [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Volgen + Furuno | 15 V | 0.46 in | 10.2 mm | 0.4 " | 11.6 mm | 7.6 mm | 0.3 " | 1 | 96 % | Through Hole | OTP SCP | 18 V | ITE (Commercial) | Linear Regulator Replacement | 85 °C | -40 C | 32 V | 3-SIP Module | 500 mA | |
Volgen + Furuno | 6.5 V | 0.46 in | 10.2 mm | 0.4 " | 11.6 mm | 7.6 mm | 0.3 " | 1 | 94 % | Through Hole | OTP SCP | 8 V | ITE (Commercial) | Linear Regulator Replacement | 85 °C | -40 C | 32 V | 3-SIP Module | 500 mA | 0.5 W |
Volgen + Furuno | 3.3 V | 0.46 in | 10.2 mm | 0.4 " | 11.6 mm | 7.6 mm | 0.3 " | 1 | 91 % | Through Hole | OTP SCP | 4.75 V | ITE (Commercial) | Linear Regulator Replacement | 85 °C | -40 C | 28 V | 3-SIP Module | 500 mA | 0.5 W |
