EAST1608 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED UNI-COLOR YELLOW 591NM 2-PIN SMD-B T/R

Part	Mounting Type	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Package / Case	Package / Case	Color	Millicandela Rating	Viewing Angle	Supplier Device Package	Lens Style	Lens Transparency	Lens Color	Lens Size [y]	Lens Size [x]	Configuration	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Current - Test	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [z]	Current - Test [custom]	Current - Test [custom]
Everlight Electronics Co Ltd EAST1608YA2	Surface Mount	590 nm	2 V	591 nm	1608 Metric	0603	Yellow	79 mcd	100 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.2 mm	Standard	1.6 mm	0.8 mm	0.9 mm	20 mA
Everlight Electronics Co Ltd EAST1608RGBA0	Surface Mount	470 nm 525 nm 624 nm	2 V 3.3 V 3.3 V	468 nm 518 nm 632 nm	1608 Metric	0603	Blue Green Red		120 °	2-SMD 4-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.6 mm	Common Anode	1.6 mm	0.8 mm			20mA Blue 20mA Green 20mA Red	100 mcd	180 mcd	50 mcd	0.5 mm
Everlight Electronics Co Ltd EAST1608YA1	Surface Mount	589 nm	2.05 V	591 nm	1608 Metric	0603	Yellow	79 mcd	100 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.2 mm	Standard	1.6 mm	0.8 mm	0.9 mm	20 mA
Everlight Electronics Co Ltd EAST1608RA6	Surface Mount	624 nm	2 V	632 nm	1608 Metric	0603	Red	56 mcd	100 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.2 mm	Standard	1.6 mm	0.8 mm	0.9 mm	20 mA
Everlight Electronics Co Ltd EAST1608RGA1	Surface Mount	572 nm 624 nm	2 V 2 V	575 nm 632 nm	1608 Metric	0603	Green Red	40 mcd 79 mcd	120 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.6 mm	Independent	1.6 mm	0.8 mm							0.5 mm	20 mA	20 mA
Everlight Electronics Co Ltd EAST1608AA1	Surface Mount	607 nm	2.05 V	611 nm	1608 Metric	0603		126 mcd	100 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.2 mm	Standard	1.6 mm	0.8 mm	0.9 mm	20 mA
Everlight Electronics Co Ltd EAST1608RA3	Surface Mount	632 nm	2.05 V	639 nm	1608 Metric	0603	Red	63 mcd	100 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.2 mm	Standard	1.6 mm	0.8 mm	0.9 mm	20 mA
Everlight Electronics Co Ltd EAST1608YA0	Surface Mount	590 nm	2 V	591 nm	1608 Metric	0603	Yellow	20 mcd	100 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.2 mm	Standard	1.6 mm	0.8 mm	0.9 mm	5 mA

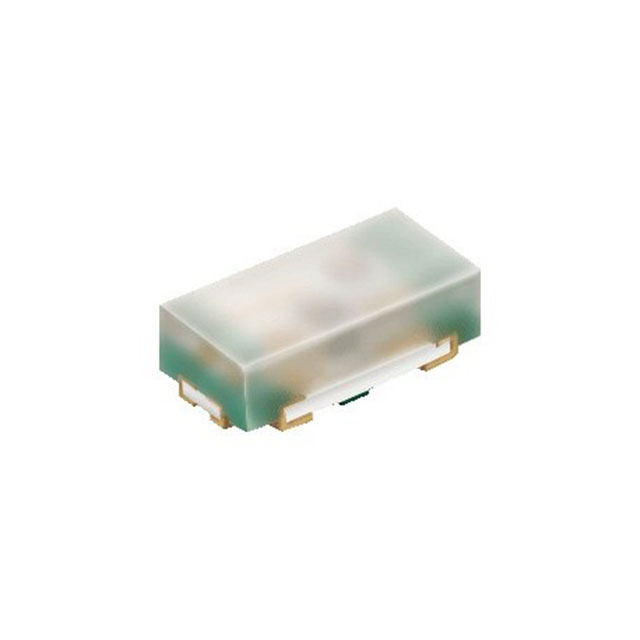

Everlight Electronics Co Ltd EAST1608RGA2	Surface Mount	572 nm 621 nm	2 V 2 V	575 nm 632 nm	1608 Metric	0603	Green Red	50 mcd 79 mcd	120 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.6 mm	Independent	1.6 mm	0.8 mm							0.5 mm	20 mA	20 mA

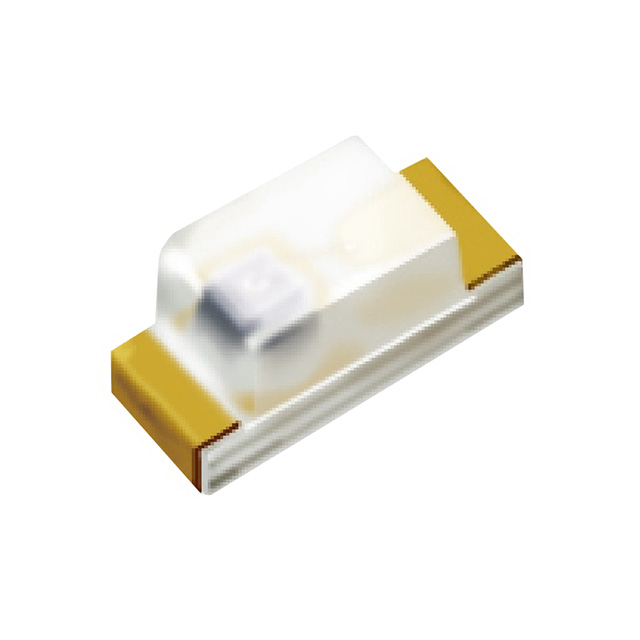

Everlight Electronics Co Ltd EAST1608GA0	Surface Mount	574 nm	2 V	575 nm	1608 Metric	0603	Yellow-Green	20 mcd	100 °	2-SMD	Rectangle with Flat Top	Clear	Colorless	0.8 mm	1.2 mm	Standard	1.6 mm	0.8 mm	0.9 mm	5 mA
