M4646 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

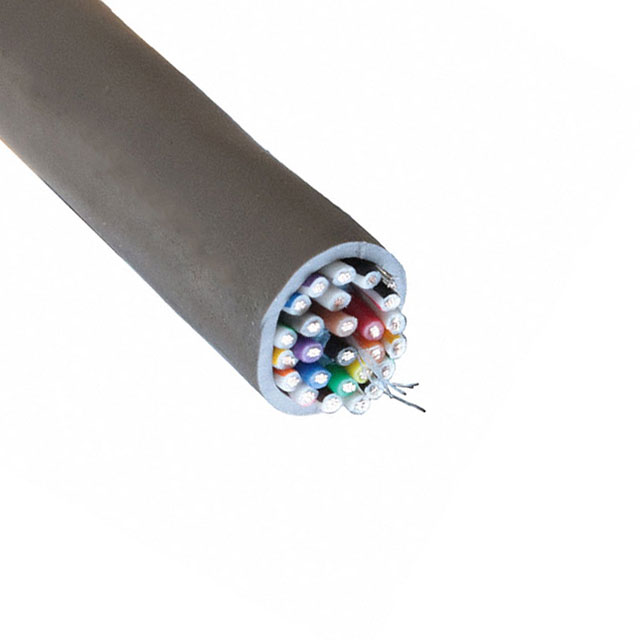

CABLE 25COND 22AWG SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Number of Conductors [custom] | Conductor Insulation | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Cable Type | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.813 mm | 0.032 in | 0.371 in | 9.42 mm | Drain Wire Rip Cord | Slate | 28 AWG | 7 | 300 VDC | UL Style 2464 | 80 °C | -20 ░C | 152.4 m | 500 ft | 25 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 22 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Foil |
