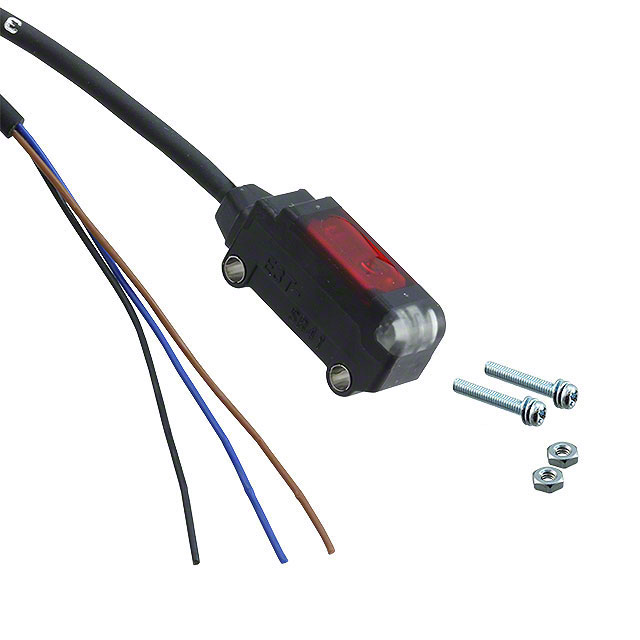

E3T-SL21 Series

Catalog

SENSOR REFLECTIVE 30MM NPN LT ON

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time	Sensing Method	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Light Source	Output Configuration	Sensing Distance	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]
Omron Electronics Inc-EMC Div E3T-SL21M	12 V	24 V	1 ms	Convergent Reflective	IEC IP67	55 °C	-25 °C	Wire	RED (650nm)	NPN - Open Collector/Light-ON	ADJ	5 mm	1.181 in	0.197 in	30 mm
Omron Electronics Inc-EMC Div E3T-SL21R	12 V	24 V	1 ms	Convergent Reflective	IEC IP67	55 °C	-25 °C	Wire	RED (650nm)	NPN - Open Collector/Light-ON	ADJ	5 mm	1.181 in	0.197 in	30 mm
Omron Electronics Inc-EMC Div E3T-SL21 5M	12 V	24 V	1 ms	Convergent Reflective	IEC IP67	55 °C	-25 °C	Cable	RED (650nm)	NPN - Open Collector/Light-ON	ADJ	5 mm	1.181 in	0.197 in	30 mm
