PEC19 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 19POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Insulation Height	Insulation Height	Insulation Color	Style	Overall Contact Length	Overall Contact Length	Shrouding	Contact Shape	Number of Positions	Number of Positions Loaded	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Material	Connector Type	Contact Finish - Post	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]

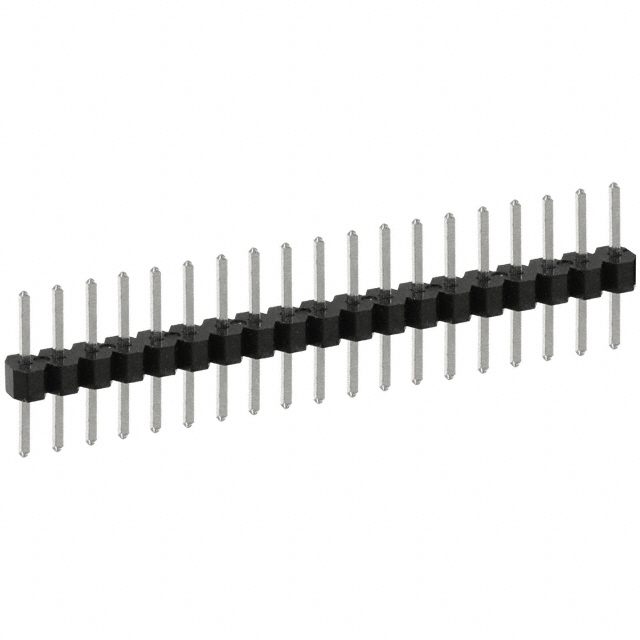

Sullins Connector Solutions PEC19SABN	2.54 µm	100 µin	Male Pin	5.84 mm	0.23 "	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.23 in	5.84 mm	Through Hole	0.1 in	2.54 mm	Black	Board to Board Cable	0.56 in	14.22 mm	Unshrouded	Square	19	All	1	-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull

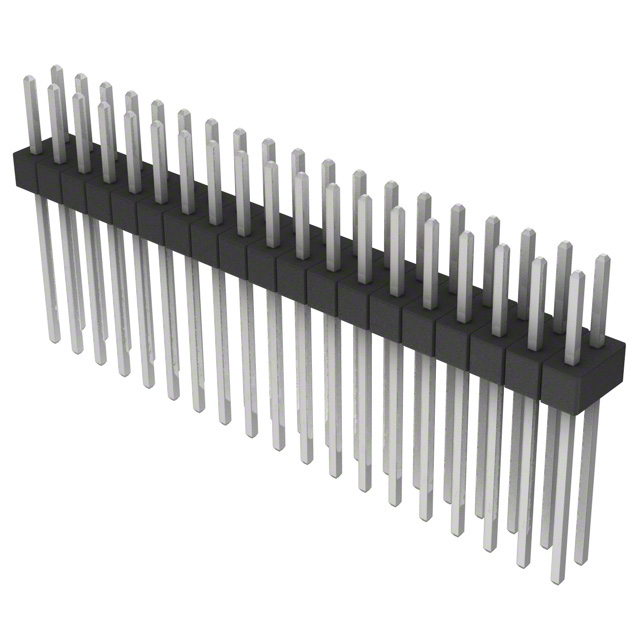

Sullins Connector Solutions PEC19DAEN	2.54 µm	100 µin	Male Pin	13.21 mm	0.52 in	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.23 in	5.84 mm	Through Hole	0.1 in	2.54 mm	Black	Board to Board Cable	0.85 in	21.59 mm	Unshrouded	Square	38	All		-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull	0.1 in	2.54 mm	2

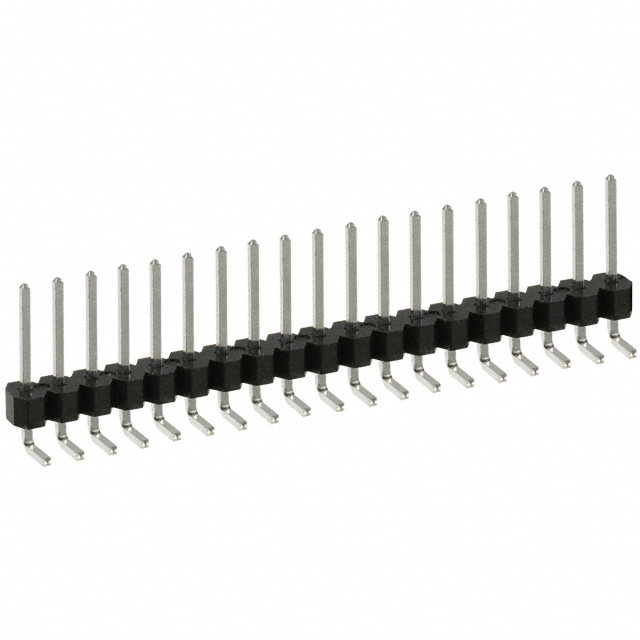

Sullins Connector Solutions PEC19SGAN	2.54 µm	100 µin	Male Pin	2.54 mm	0.1 in	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.318 in	8.08 mm	Right Angle Through Hole	0.14 in	3.56 mm	Black	Board to Board Cable			Unshrouded	Square	19	All	1	-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull

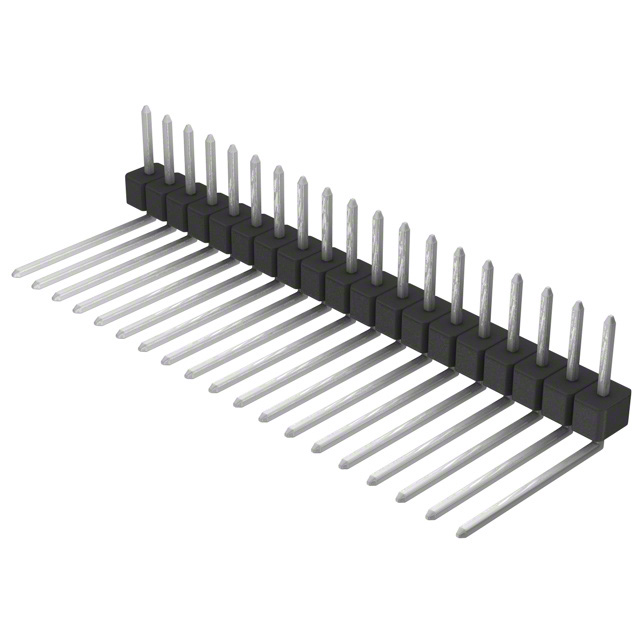

Sullins Connector Solutions PEC19SBEN	2.54 µm	100 µin	Male Pin	12.7 mm	0.5 "	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.23 in	5.84 mm	Right Angle Through Hole	0.14 in	3.56 mm	Black	Board to Board Cable			Unshrouded	Square	19	All	1	-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull

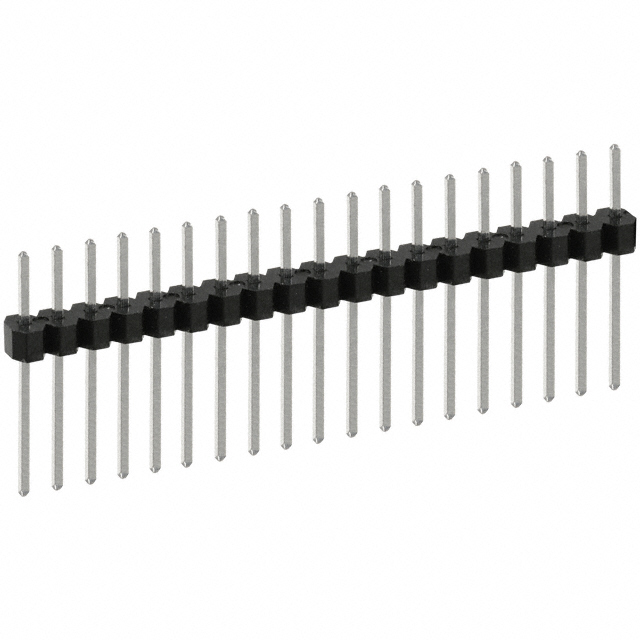

Sullins Connector Solutions PEC19SADN	2.54 µm	100 µin	Male Pin	10.67 mm	0.42 in	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.23 in	5.84 mm	Through Hole	0.1 in	2.54 mm	Black	Board to Board Cable			Unshrouded	Square	19	All	1	-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull				19.05 mm	0.75 in

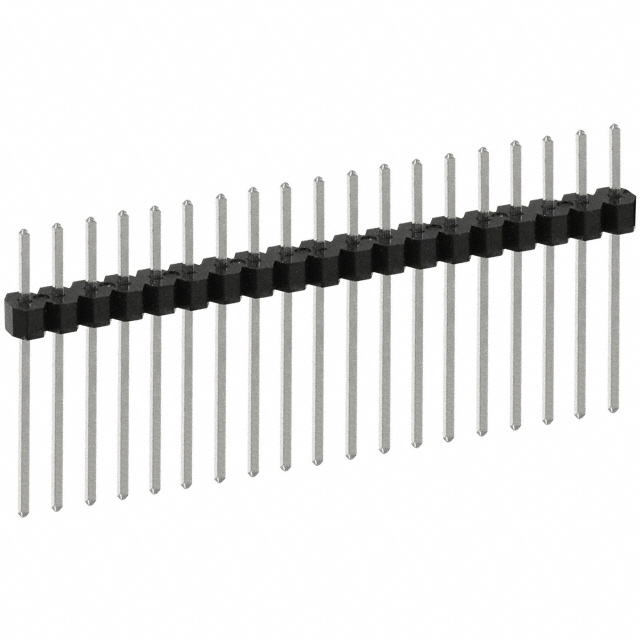

Sullins Connector Solutions PEC19SAGN	2.54 µm	100 µin	Male Pin	18.29 mm	0.72 "	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.23 in	5.84 mm	Through Hole	0.1 in	2.54 mm	Black	Board to Board Cable	1.05 in	26.67 mm	Unshrouded	Square	19	All	1	-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull

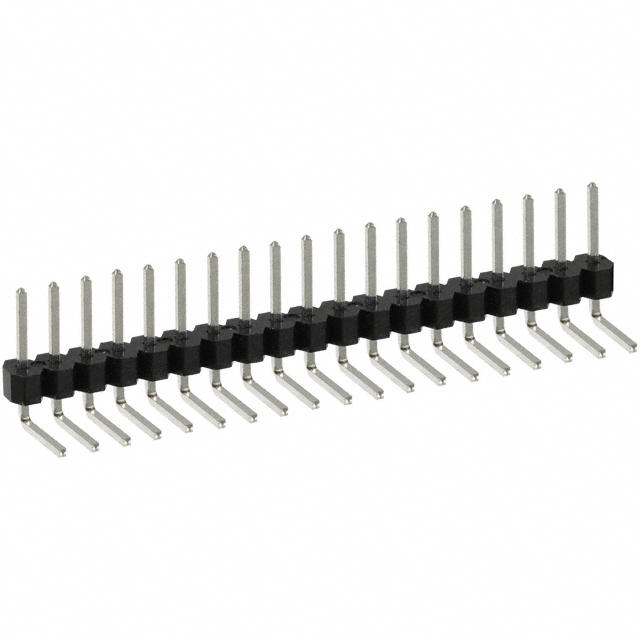

Sullins Connector Solutions PEC19SBBN	2.54 µm	100 µin	Male Pin			UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.23 in	5.84 mm	Right Angle Through Hole	0.14 in	3.56 mm	Black	Board to Board Cable			Unshrouded	Square	19	All	1	-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull						5.08 mm	0.2 "

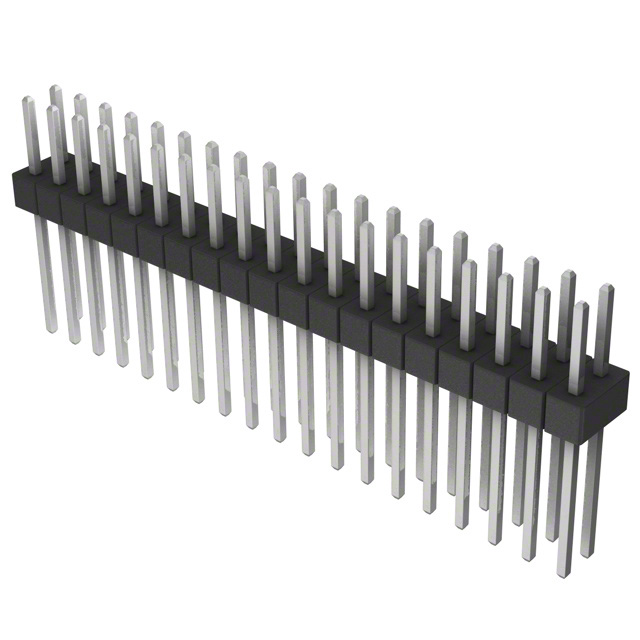

Sullins Connector Solutions PEC19DADN	2.54 µm	100 µin	Male Pin	10.67 mm	0.42 in	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.23 in	5.84 mm	Through Hole	0.1 in	2.54 mm	Black	Board to Board Cable			Unshrouded	Square	38	All		-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull	0.1 in	2.54 mm	2	19.05 mm	0.75 in
Sullins Connector Solutions PEC19DBAN	2.54 µm	100 µin	Male Pin	2.54 mm	0.1 in	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.23 in	5.84 mm	Right Angle Through Hole			Black	Board to Board Cable			Unshrouded	Square	38	All		-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull	0.1 in	2.54 mm	2					6.1 mm	0.24 in
Sullins Connector Solutions PEC19SFAN	2.54 µm	100 µin	Male Pin	3.05 mm	0.12 in	UL94 V-0	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Phosphor Bronze	0.318 in	8.08 mm	Through Hole	0.1 in	2.54 mm	Black	Board to Board Cable			Unshrouded	Square	19	All	1	-65 ░C	125 °C	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	Tin	Push-Pull				13.67 mm	0.538 in
