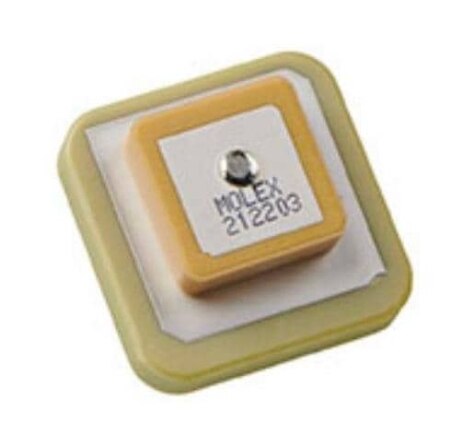

GPS L1/L5 25.00mm Stacked Patch Antenna
GPS L1/L5 25.00mm Stacked Patch Antenna
| Part | Height (Max) [Max] | Height (Max) [Max] [z] | Power - Max [Max] | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Return Loss | Antenna Type | Mounting Type | Frequency Range [Min] | Frequency Range [Max] | Applications | Number of Bands | Gain | RF Family/Standard | Frequency (Center/Band) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 8 mm | 0.315 in | 2 W | 2 GHz | 1 GHz | UHF | -20 dB -15 dB | Ceramic Patch | Adhesive | 1.171 GHz 1.57 GHz | 1.181 GHz 1.58 GHz | GNSS GPS | 2 | 3.1 dBi 4.9 dBi | Navigation | 1.176 GHz 1.575 GHz |
