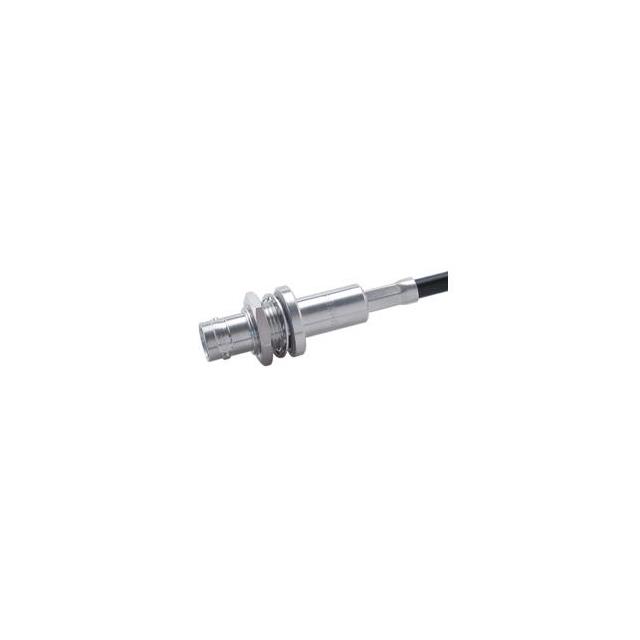

24_SHV-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
24_SHV-50-4-1/133_NE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Body Finish | Mating Cycles | Center Contact Plating | Voltage Rating | Connector Type | Mounting Type | Fastening Type | Mounting Feature | Impedance | Frequency - Max [Max] | Contact Termination | Center Contact Material | Number of Ports | Shield Termination | Cable Group | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | 500 | Gold | 3500 V | Female Socket Jack | Panel Mount | Bayonet Lock | Bulkhead - Front Side Nut | 50 Ohms | 300 MHz | Crimp | Brass | 1 | Crimp | RG-59 | SHV | Silver |
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | 500 | Gold | 3500 V | Female Socket Jack | Panel Mount | Bayonet Lock | Bulkhead - Front Side Nut | 50 Ohms | 300 MHz | Crimp | Brass | 1 | Crimp | RG-58 | SHV | Silver |
