HE16HWPR Series

Catalog

CONN TERM STRIP 9 POLES 15MM

Part	Material Flammability Rating	Mounting Type	Material - Insulation	Terminal Screw Material	Operating Temperature (Min)	Operating Temperature (Max)	Terminal Screw Finish	Color	Number of Rows	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Barrier Type	Bottom Termination	Number of Wire Entries	Top Termination	Terminal Block Type	Voltage Rating	Number of Circuits	Current Rating	Pitch

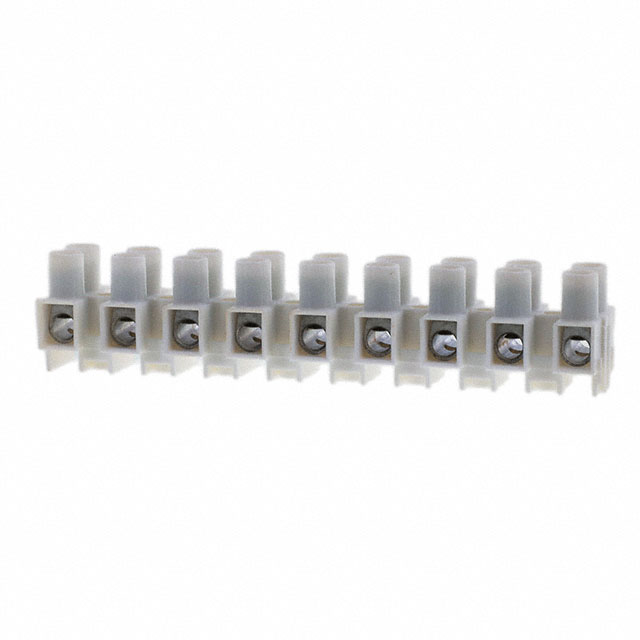

Altech Corporation HE16HWPR/09	UL94 V-0	Chassis Panel	Nylon 6/6 PA66 Polyamide	Steel	-30 °C	125 °C	Blue Chromate	White	2	18 AWG	6 AWG	Enclosed	Closed	18	Screws	Eurostyle Terminal Strip	600 V	9	63 A	0.591 in
Altech Corporation HE16HWPR/04								White	2	18 AWG	6 AWG	Enclosed	Closed	8	Screws	Eurostyle Terminal Strip	600 V	4	63 A	0.591 in
Altech Corporation HE16HWPR/07								White	2	18 AWG	6 AWG	Enclosed	Closed	14	Screws	Eurostyle Terminal Strip	600 V	7	63 A	0.591 in
Altech Corporation HE16HWPR/06	UL94 V-0	Chassis Panel	Nylon 6/6 PA66 Polyamide	Steel	-30 °C	125 °C	Blue Chromate	White	2	18 AWG	6 AWG	Enclosed	Closed	12	Screws	Eurostyle Terminal Strip	600 V	6	63 A	0.591 in

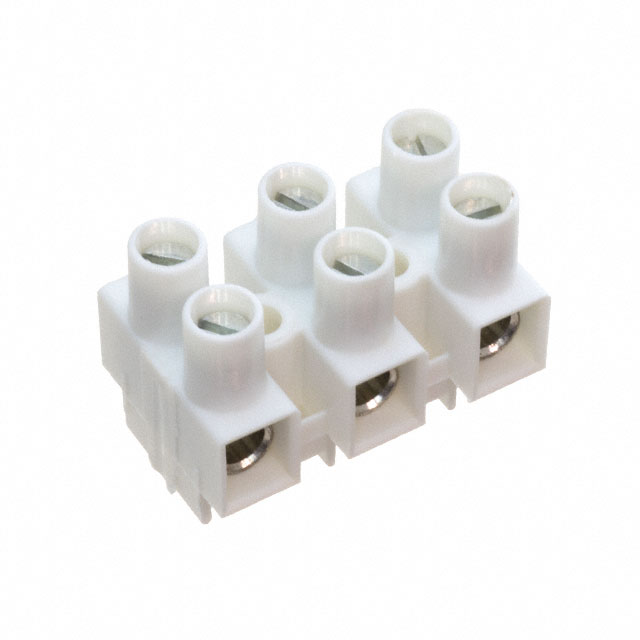

Altech Corporation HE16HWPR/03	UL94 V-0	Chassis Panel	Nylon 6/6 PA66 Polyamide	Steel	-30 °C	125 °C	Blue Chromate	White	2	18 AWG	6 AWG	Enclosed	Closed	6	Screws	Eurostyle Terminal Strip	600 V	3	63 A	0.591 in
Altech Corporation HE16HWPR/10								White	2	18 AWG	6 AWG	Enclosed	Closed	20	Screws	Eurostyle Terminal Strip	600 V	10	63 A	0.591 in
Altech Corporation HE16HWPR/05								White	2	18 AWG	6 AWG	Enclosed	Closed	10	Screws	Eurostyle Terminal Strip	600 V	5	63 A	0.591 in
Altech Corporation HE16HWPR/11								White	2	18 AWG	6 AWG	Enclosed	Closed	22	Screws	Eurostyle Terminal Strip	600 V	11	63 A	0.591 in
Altech Corporation HE16HWPR/12	UL94 V-0	Chassis Panel	Nylon 6/6 PA66 Polyamide	Steel	-30 °C	125 °C	Blue Chromate	White	2	18 AWG	6 AWG	Enclosed	Closed	24	Screws	Eurostyle Terminal Strip	600 V	12	63 A	0.591 in
Altech Corporation HE16HWPR/02								White	2	18 AWG	6 AWG	Enclosed	Closed	4	Screws	Eurostyle Terminal Strip	600 V	2	63 A	0.591 in
