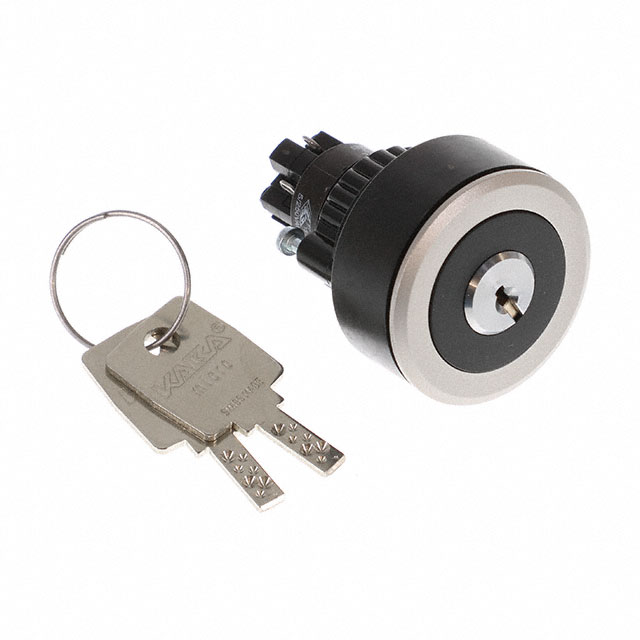

K14-141 Series
Manufacturer: EAO
Beta
⌘K
SWITCH KEYLOCK 2POS DPST 5A 250V
| Part | Depth Behind Flange | Mechanical Life | Mounting Type | Key Removable Positions | Voltage Rating - AC | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Termination Style | Contact Finish | Number of Positions | Features | Circuit | Angle of Throw | Contact Timing | Actuator Type | Switch Function | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
46.5 mm | 2000000 Cycles | Panel Mount | 1 | 250 V | 5 A | 55 °C | -25 °C | 30.5 mm | Solder Lug | Gold | 2 | IP65 | DPST-NO/NC | 42 ° | Not Specified | Flat Key | Off-Mom | Silver (Ag) |
