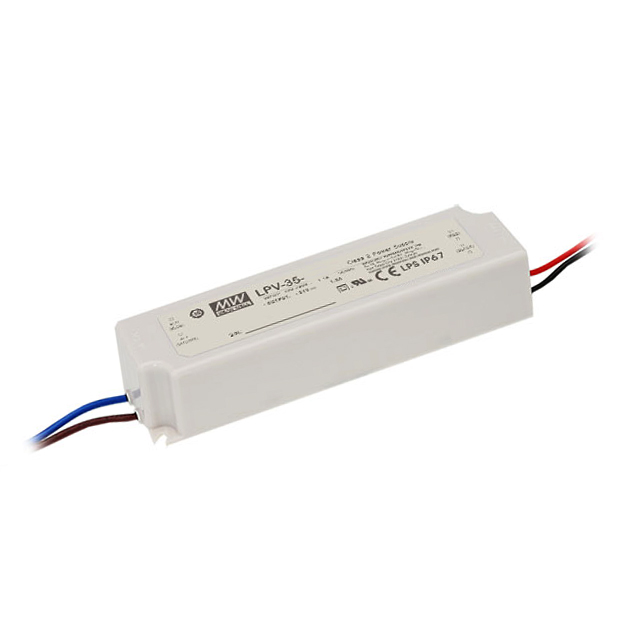

LPV-35 Series

Catalog

LED DRIVER CV AC/DC 15V 2.4A

Part	Mounting Type	Ratings	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Features	Voltage - Output	Termination Style	Power (Watts)	Number of Outputs	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Input (Min) [Min]	Topology	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output (Max)
MEAN WELL USA Inc. LPV-35-15	Chassis Mount	IP67	2.4 A	1.57 "	148 mm	40 mm	1.18 in	30 mm	5.83 "	Constant Voltage	OCP OVP SCP	15 V	Wire Leads	36 W	1	264 VAC	CB CE cURus	90 VAC	AC DC Converter	84 %	-30 ░C	65 °C	3000 V
MEAN WELL USA Inc. LPV-35-24	Chassis Mount	IP67	1.5 A	1.57 "	148 mm	40 mm	1.18 in	30 mm	5.83 "	Constant Voltage	OCP OVP SCP	24 V	Wire Leads	36 W	1	264 VAC	CB CE cURus	90 VAC	AC DC Converter	85 %	-30 ░C	65 °C	3000 V
MEAN WELL USA Inc. LPV-35-5	Chassis Mount	IP67		1.57 "	148 mm	40 mm	1.18 in	30 mm	5.83 "	Constant Voltage	OCP OVP SCP	5 V	Wire Leads	30 Watts	1	264 VAC	CB CE cURus	90 VAC	AC DC Converter	77 %	-30 ░C	65 °C	3000 V	5 A
