119K101 Series
Manufacturer: Rosenberger
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS STRAIGHT JACK
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Voltage Rating | Body Finish | Number of Ports | Mounting Type | Fastening Type | Impedance | Connector Type | Contact Termination | Frequency - Max [Max] | Center Contact Material | Shield Termination | Housing Color | Connector Style | For Use With/Related Products | Accessory Type | Type | Adapter Type | Convert From (Adapter End) | Conversion Type | Fastening Type | Style | Convert To (Adapter End) | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

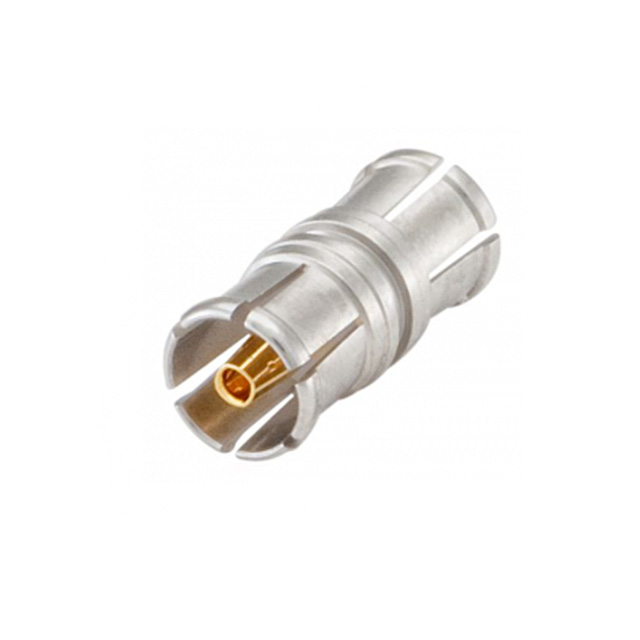

 Rosenberger | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Gold | 480 V | White Bronze | 1 | Free Hanging (In-Line) | Snap-On | 50 Ohms | Female Socket Jack | Solder | 10 GHz | Beryllium Copper | Solder | Silver | PSMP | ||||||||||

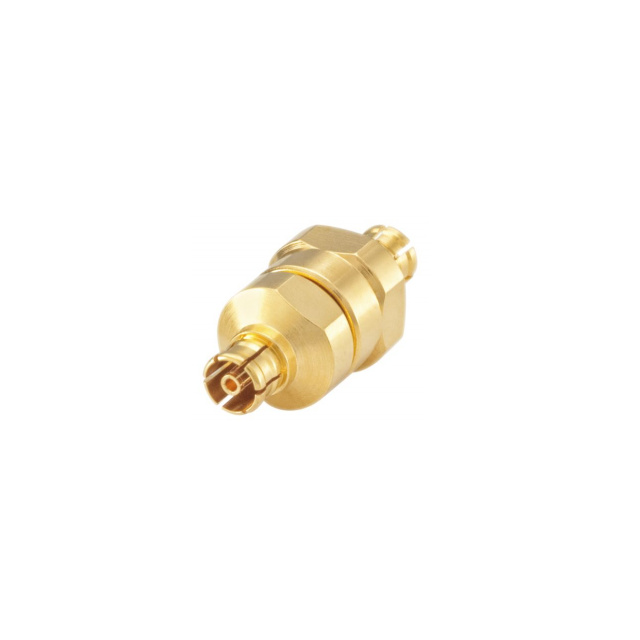

 Rosenberger | Network Analyzer | Calibration Adapter | Specialized | |||||||||||||||||||||||||

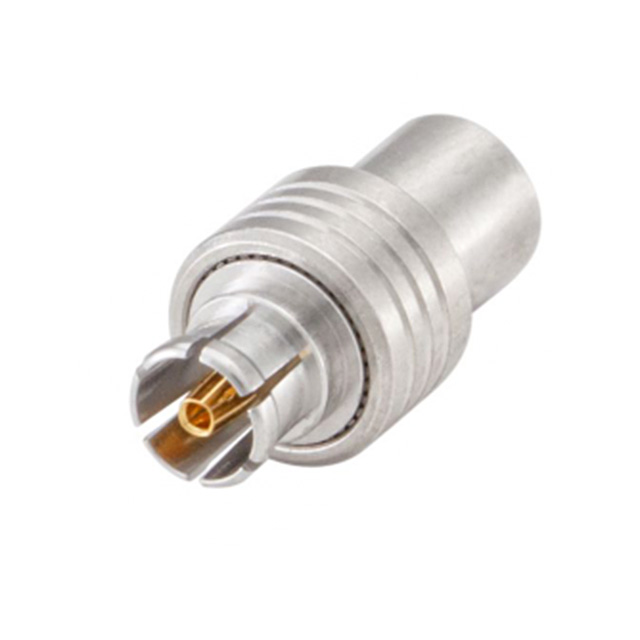

 Rosenberger | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Gold | White Bronze | Free Hanging (In-Line) | Snap-On | 50 Ohms | 10 GHz | Beryllium Copper | Jack to Jack | Female Socket PSMP Jack | Same Series | Snap-On | Straight | PSMP Jack Female Socket | Female to Female |
