2SH-H Series
Manufacturer: Adam Tech
Beta
⌘K

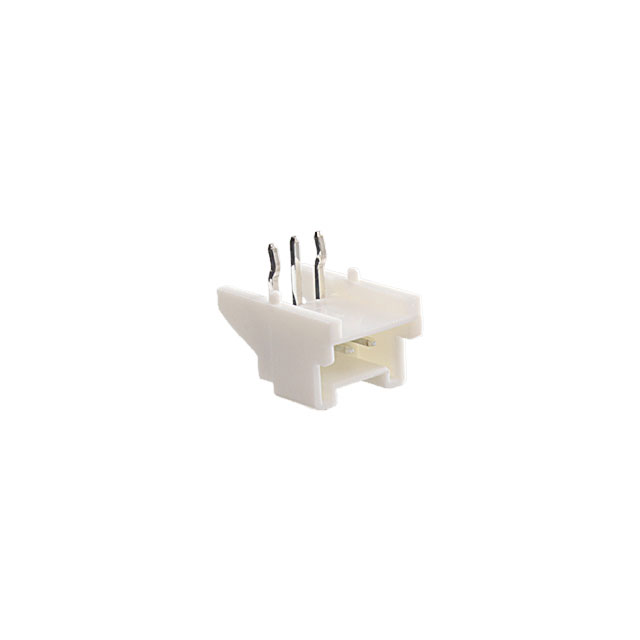

CONN HDR T-H R/A 3POS 2.00MM
| Part | Style | Contact Length - Post [x] | Contact Length - Post | Connector Type | Contact Shape | Voltage Rating | Shrouding | Material Flammability Rating | Termination | Contact Material | Number of Rows | Features | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Mounting Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Board to Board Cable | 0.134 " | 3.4 mm | Header | Square | 100 VAC | Shrouded - 4 Wall | UL94 V-0 | Kinked Pin Solder | Brass | 1 | Board Guide | All | 85 °C | -25 °C | Male Pin | Right Angle Through Hole | Tin | 0.079 " | 2 mm | Locking Ramp |
