054809 Series

Manufacturer: Molex

Catalog

0548092575

Part	Current Rating (Amps)	Mounting Type	Actuator Material	Height Above Board	Height Above Board [z]	Mating Cycles	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature	Voltage Rating	Cable End Type	FFC, FCB Thickness	Connector/Contact Type	Contact Material	Flat Flex Type	Housing Material	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Finish	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness
Molex 0548092575	200 mA	Surface Mount Right Angle	Nylon 4/6 Polyamide (PA46)	1.3 mm	0.051 "	20	Solder	85 °C	-20 C	Flip Lock	50 V	Tapered	0.2 mm	Contacts Bottom	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	0.012 in	0.3 mm	UL94 V-0	Gold

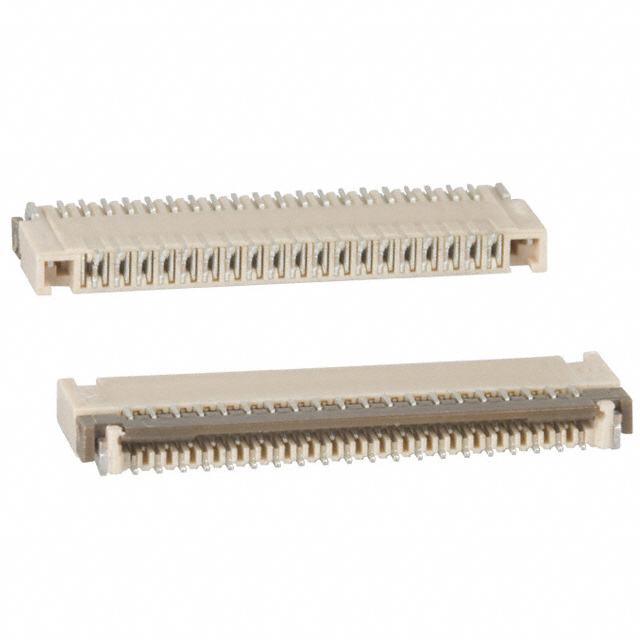

Molex 0548093998	300 mA	Surface Mount Right Angle	Nylon 4/6 Polyamide (PA46)	1.3 mm	0.051 "	20	Solder	85 °C	-20 C	Flip Lock	50 V	Tapered	0.2 mm	Contacts Bottom	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	0.012 in	0.3 mm	UL94 V-0	Tin Bismuth	39	Solder Retention Zero Insertion Force (ZIF)

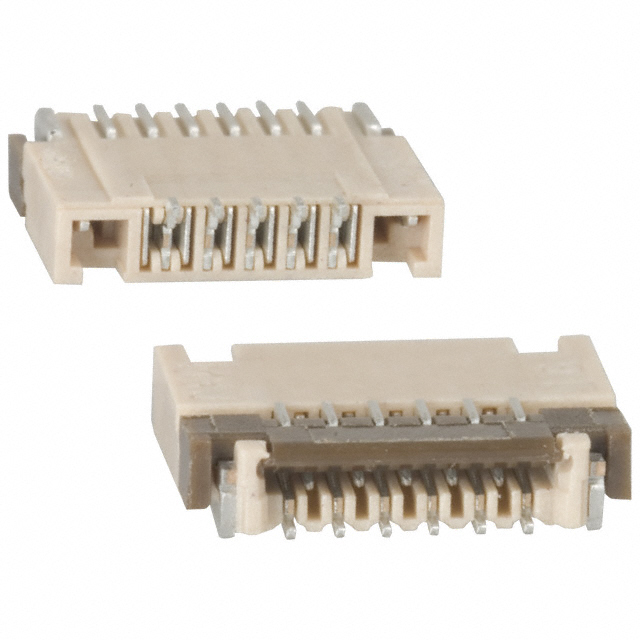

Molex 0548091198	300 mA	Surface Mount Right Angle	Nylon 4/6 Polyamide (PA46)	1.3 mm	0.051 "	20	Solder	85 °C	-20 C	Flip Lock	50 V	Tapered	0.2 mm	Contacts Bottom	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	0.012 in	0.3 mm	UL94 V-0	Tin Bismuth	11	Solder Retention Zero Insertion Force (ZIF)

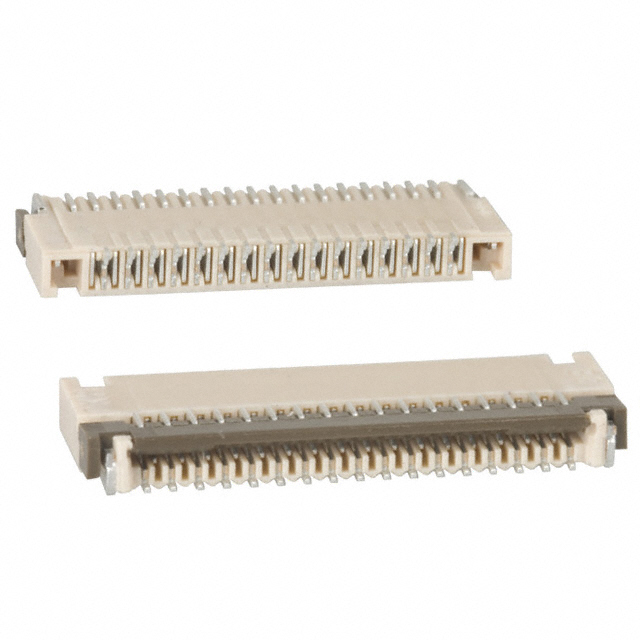

Molex 0548093398	300 mA	Surface Mount Right Angle	Nylon 4/6 Polyamide (PA46)	1.3 mm	0.051 "	20	Solder	85 °C	-20 C	Flip Lock	50 V	Tapered	0.2 mm	Contacts Bottom	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	0.012 in	0.3 mm	UL94 V-0	Tin Bismuth	33	Solder Retention Zero Insertion Force (ZIF)
Molex 0548092798	300 mA	Surface Mount Right Angle	Nylon 4/6 Polyamide (PA46)	1.3 mm	0.051 "	20	Solder	85 °C	-20 C	Flip Lock	50 V	Tapered	0.2 mm	Contacts Bottom	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	0.012 in	0.3 mm	UL94 V-0	Tin Bismuth	27	Solder Retention Zero Insertion Force (ZIF)

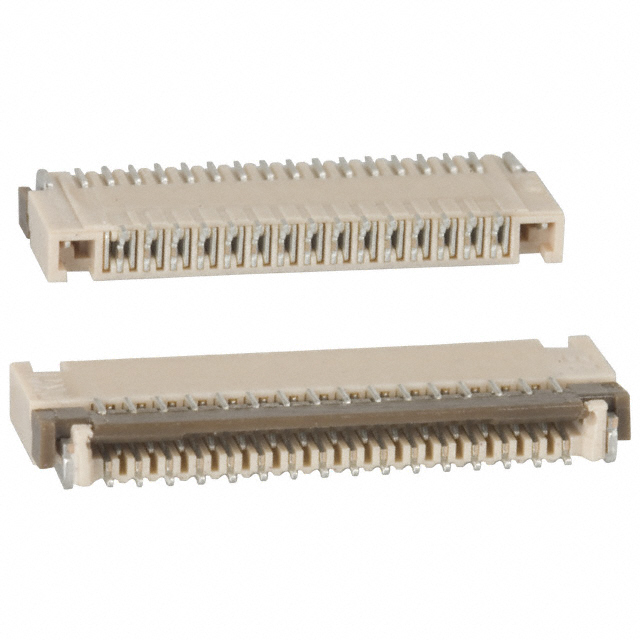

Molex 0548093198	300 mA	Surface Mount Right Angle	Nylon 4/6 Polyamide (PA46)	1.3 mm	0.051 "	20	Solder	85 °C	-20 C	Flip Lock	50 V	Tapered	0.2 mm	Contacts Bottom	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	0.012 in	0.3 mm	UL94 V-0	Tin Bismuth	31	Solder Retention Zero Insertion Force (ZIF)

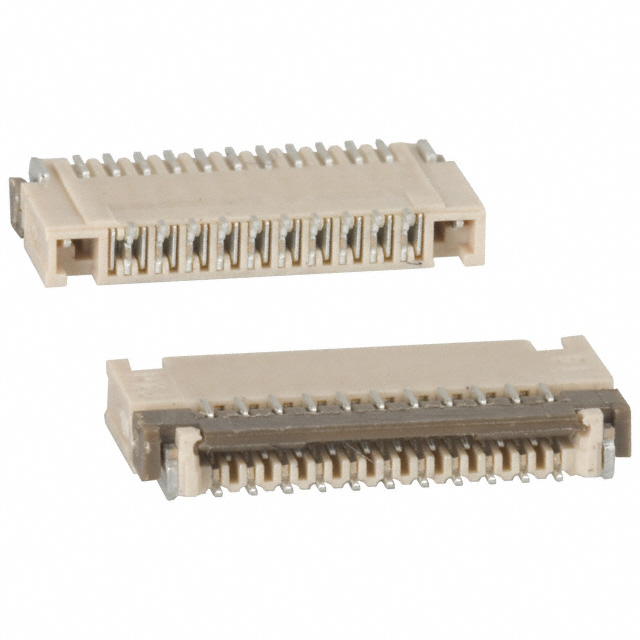

Molex 0548092198	300 mA	Surface Mount Right Angle	Nylon 4/6 Polyamide (PA46)	1.3 mm	0.051 "	20	Solder	85 °C	-20 C	Flip Lock	50 V	Tapered	0.2 mm	Contacts Bottom	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	0.012 in	0.3 mm	UL94 V-0	Tin Bismuth	21	Solder Retention Zero Insertion Force (ZIF)

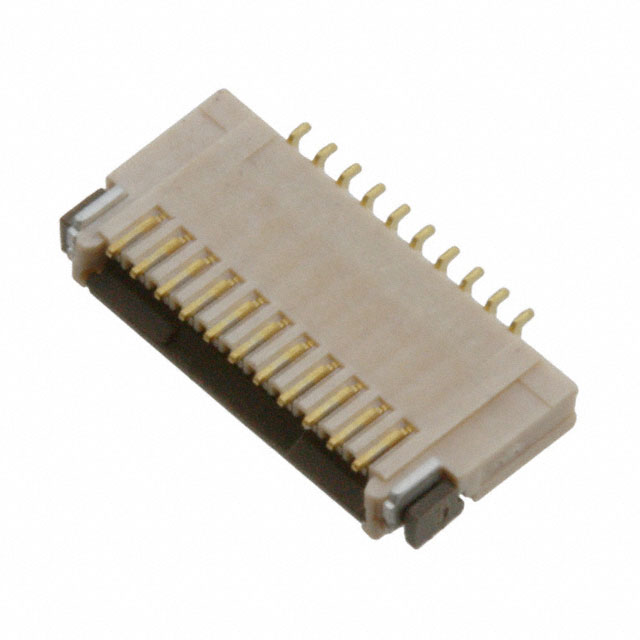

Molex 0548092175	0.2 A	Surface Mount Right Angle	Nylon 4/6 Polyamide (PA46)	1.3 mm	0.051 "	20	Solder	85 °C	-20 C	Flip Lock	50 V	Tapered	0.2 mm	Contacts Bottom	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	0.012 in	0.3 mm	UL94 V-0	Gold	21	Solder Retention Zero Insertion Force (ZIF)	8 çin	0.203 çm
