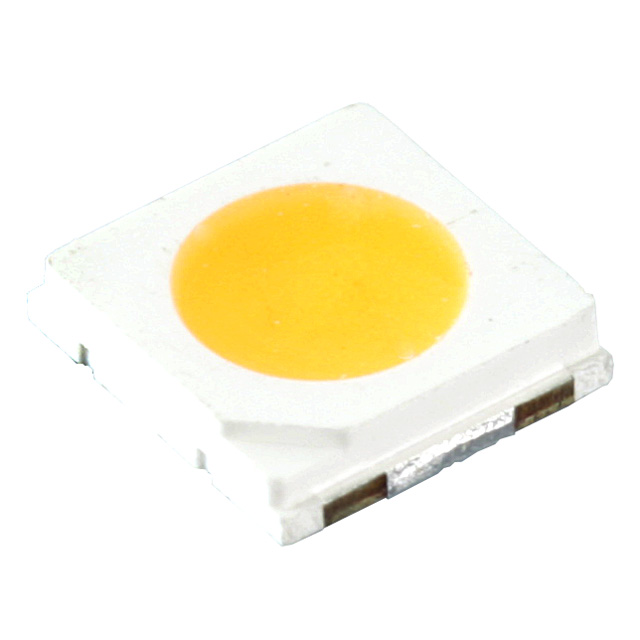

LUXEON 3535L HE Series

Manufacturer: Lumileds

Catalog

LUXEON MID-POWER NEUTRAL-WHITE 3535L HE 90 CRI CCT 4000K CRI90

Part	Thermal Resistance of Package	Mounting Type	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Current - Test	Supplier Device Package	CRI (Color Rendering Index)	Color	Current - Max [Max]	Viewing Angle	CCT (K)	Height - Seated (Max) [Max]	Height - Seated (Max)	Flux @ 25°C, Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Lumileds MXA9-PW40-H001	18 °C/W	Surface Mount	145 lm/W	2.9 V	1414 (3535 Metric)	100 mA	3535	90	Neutral White	300 mA	115 °	4000 K	0.031 in	0.8 mm	42 lm	3.4 mm	0.138 in	3.5 mm	0.134 in
Lumileds MXA9-PW27-H001	18 °C/W	Surface Mount	128 lm/W	2.9 V	1414 (3535 Metric)	100 mA	3535	90	Warm White	300 mA	115 °	2700 K	0.031 in	0.8 mm	37 lm	3.4 mm	0.138 in	3.5 mm	0.134 in
Lumileds MXA9-PW65-H001		Surface Mount	138 lm/W	2.9 V	1414 (3535 Metric)	100 mA	3535	90	Cool White	300 mA	115 °	6500 K	0.031 in	0.8 mm	40 lm	3.4 mm	0.138 in	3.5 mm	0.134 in
Lumileds MXA7-PW50-H001	18 °C/W	Surface Mount	186 lm/W	2.9 V	1414 (3535 Metric)	100 mA	3535	70	Cool White	300 mA	115 °	5000 K	0.031 in	0.8 mm	54 lm	3.4 mm	0.138 in	3.5 mm	0.134 in
