EPS060175 Series
Manufacturer: CUI Inc.
Beta
⌘K

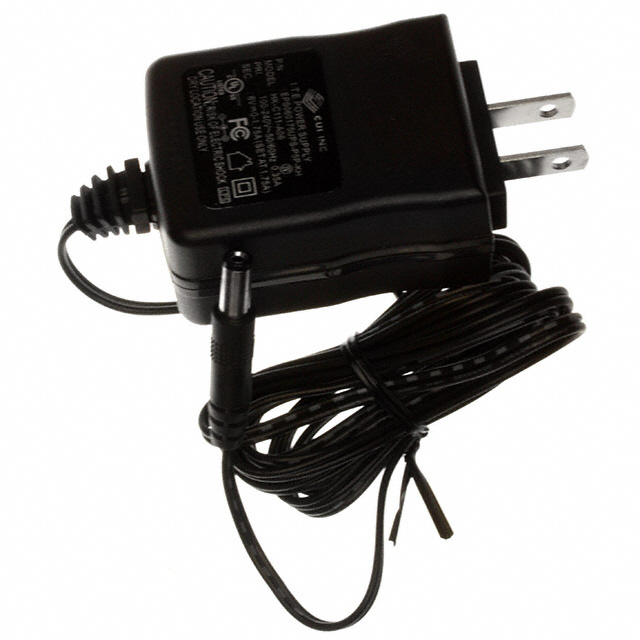

AC/DC WALL MOUNT ADAPTER 6V 11W
| Part | Applications | Region Utilized | Polarization | Current - Output (Max) [Max] | No Load Power Consumption | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Cord Length | Cord Length | Output Connector [custom] | Output Connector [custom] | Output Connector | Output Connector [x] | Voltage - Output | Approval Agency | Power (Watts) | Form | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | ITE (Commercial) | North America | Positive Center | 1.75 A | 500 mW | 2.43 " | 61.8 mm | 45.5 mm | 30 mm | 1.18 " | 1.77 in | Level IV | Fixed Blade | 40 °C | 0 °C | 70.9 " | 1.8 m | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | 6 V | cULus | 11 W | Wall Mount | 264 VAC | 90 VAC | NEMA 1-15P |
