887-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

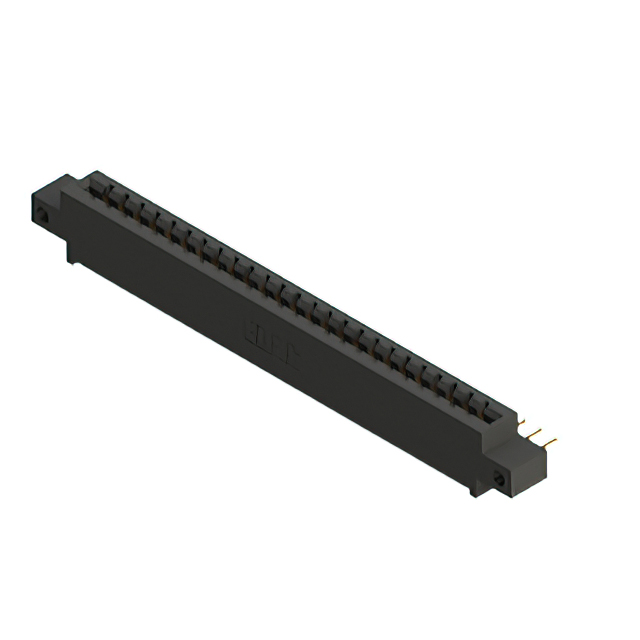

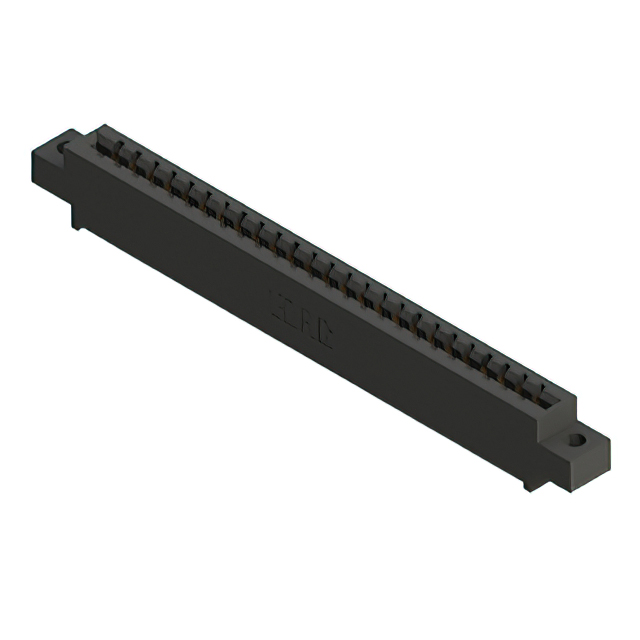

CONN EDGE SGL FMALE 25POS 0.156
| Part | Material - Insulation | Termination Rows | Color | Termination | Number of Positions/Bay/Row | Pitch | Pitch | Card Type | Contact Finish | Read Out | Flange Feature | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Type | Number of Rows | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Solder | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | M3 Threaded Insert Top Mount Opening | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Wire Wrap | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | Flush Mount M3 Threaded Insert Top Opening | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Wire Wrap | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | Floating Bobbin Top Mount Opening | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Wire Wrap | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | Floating Bobbin Top Mount Opening | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Solder | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | Side Mount Opening Unthreaded | 25 | 0.25 Ám | 10 Áin | Right Angle Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Wire Wrap | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | M3 Threaded Insert Top Mount Opening | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Wire Wrap | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Wire Wrap | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | M3 Threaded Insert Top Mount Opening | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Wire Wrap | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Black | Solder | 25 | 3.96 mm | 0.156 in | Non Specified - Single Edge | Gold | Single | 25 | 0.25 Ám | 10 Áin | Through Hole | 125 °C | -40 C | Female | Cantilever | 1 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm |
