TRG36A48 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

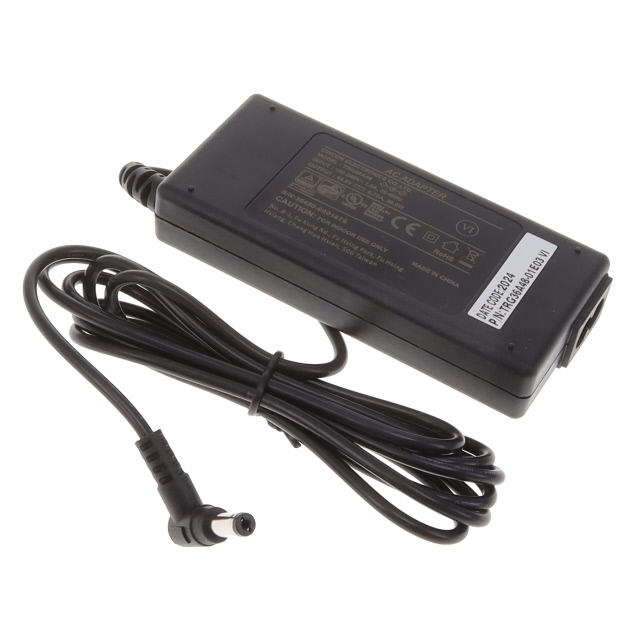

AC/DC DESKTOP ADAPTER 48V 36W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Output | Cord Length | Cord Length | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Current - Output (Max) [Max] | Region Utilized | Standard Number | No Load Power Consumption | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Form | Output Connector [z] | Output Connector [diameter] | Output Connector | Polarization | Input Type | Power (Watts) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | -20 ░C | 60 °C | CoC Tier 2 Level VI | 48 V | 70.9 " | 1.8 m | ITE (Commercial) | 264 VAC | 90 VAC | IEC 320-C8 | 750 mA | International | 60950-1 62368-1 | 75 mW | 111 mm | 51 mm | 4.37 in | 0.89 " | 22.5 mm | 2.01 " | Desktop (Class II) | 12 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | Positive Center | Cord (Sold Separately) | 36 W | CE cULus FCC GS PSE TUV |
