EL0631 Series

Catalog

OPTOCOUPLER LOGIC-OUT DC-IN 2-CH 8-PIN SOP

Part	Number of Channels	Voltage - Supply	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Current - DC Forward (If) (Max) [Max]	Current - Output / Channel	Mounting Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Propagation Delay tpLH / tpHL (Max) [Max]	Input Type	Common Mode Transient Immunity (Min) [Min]	Output Type	Package / Case	Package / Case	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Data Rate
Everlight Electronics Co Ltd EL0631(TA)-V	2	7 V	2	0	20 mA	50 mA	Surface Mount	3750 Vrms	-40 C	100 °C	1.4 V	8-SOP	100 ns	DC	10 kV/µs	Open Collector	0.154 in	8-SOIC	3.9 mm	10 ns	40 ns	10 Mbps

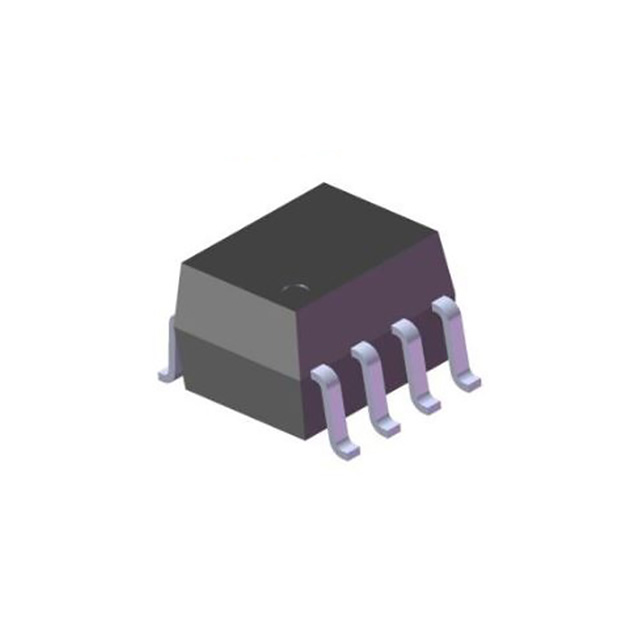

Everlight Electronics Co Ltd EL0631(TA)	2	7 V	2	0	20 mA	50 mA	Surface Mount	3750 Vrms	-40 C	100 °C	1.4 V	8-SOP	100 ns	DC	10 kV/µs	Open Collector	0.154 in	8-SOIC	3.9 mm	10 ns	40 ns	10 Mbps
