1586043 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN WIRE TO BOARD HDR 6POWER POS 4.2MM SOLDER RA THRU-HOLE BOX/TRAY

Part	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Insulation Color	Mounting Type	Style	Contact Type	Material Flammability Rating	Connector Type	Voltage Rating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Current Rating (Amps)	Shrouding	Termination	Features	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Height	Insulation Height	Applications	Number of Rows

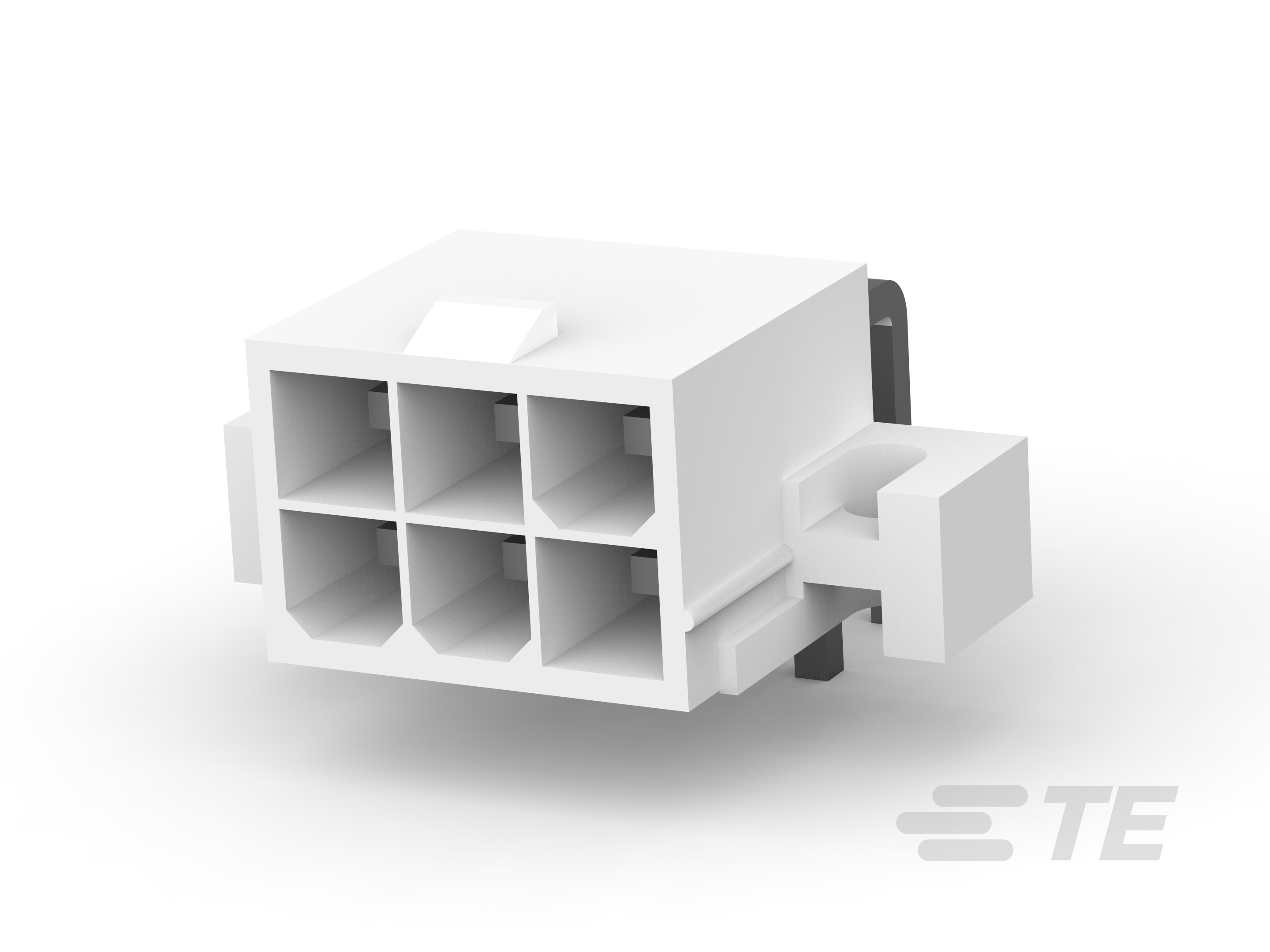

TE Connectivity Raychem Cable Protection 1586043-6	All	-40 °C	105 ░C	Nylon Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	6	Natural	Through Hole Right Angle	Board to Cable/Wire	Male Pin	UL94 V-2	Header	600 VAC	Brass Alloy	2.03 µm	80 µin	2.03 µm	80 µin	Tin	9 A	Shrouded - 4 Wall	Solder	Mounting Flange	4.2 mm	0.165 in	3.6 mm	0.142 in	Square	9.8 mm	0.386 in	General Purpose Industrial Lighting	2

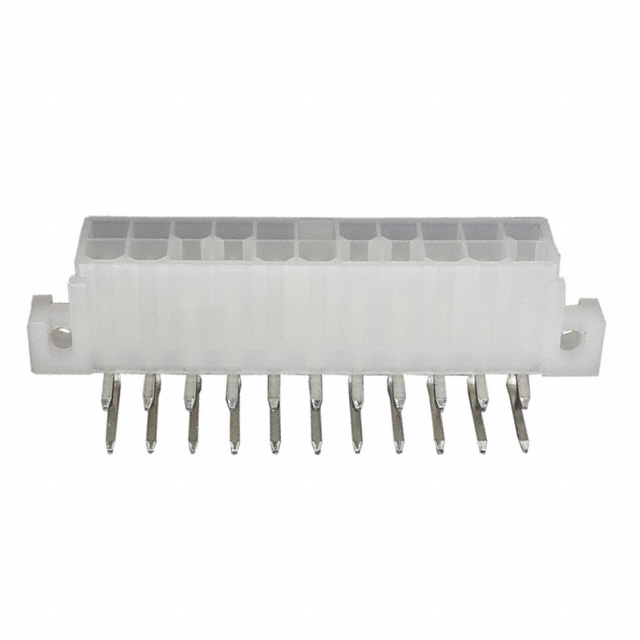

TE Connectivity Raychem Cable Protection 2-1586043-2	All	-40 °C	105 ░C	Nylon Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	22 positions	Natural	Through Hole Right Angle	Board to Cable/Wire	Male Pin	UL94 V-2	Header	600 VAC	Brass Alloy	2.03 µm	80 µin	2.03 µm	80 µin	Tin	9 A	Shrouded - 4 Wall	Solder	Mounting Flange	4.2 mm	0.165 in	3.6 mm	0.142 in	Square	9.8 mm	0.386 in	General Purpose Industrial Lighting	2

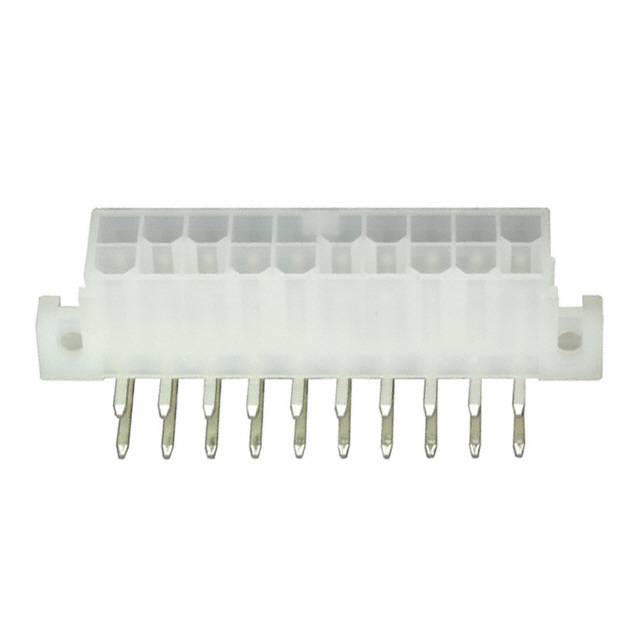

TE Connectivity Raychem Cable Protection 2-1586043-0	All	-40 °C	105 ░C	Nylon Polyamide (PA)	Locking Ramp	4.2 mm	0.165 in	20	Natural	Through Hole Right Angle	Board to Cable/Wire	Male Pin	UL94 V-2	Header	600 VAC	Brass Alloy	2.03 µm	80 µin	2.03 µm	80 µin	Tin	9 A	Shrouded - 4 Wall	Solder	Mounting Flange	4.2 mm	0.165 in	3.6 mm	0.142 in	Square	9.8 mm	0.386 in	General Purpose Industrial Lighting	2
