1604002 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RECTANGULAR POWER CONNECTOR, 1 CONTACTS, POWER 120 SERIES, CABLE MOUNT, CRIMP, PLUG, RECEPTACLE
| Part | Current Rating (Amps) | Contact Material | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Voltage Rating | Fastening Type | Connector Style | Number of Rows | Connector Type | Number of Positions | Wire Gauge | Mounting Type | Features | Color | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

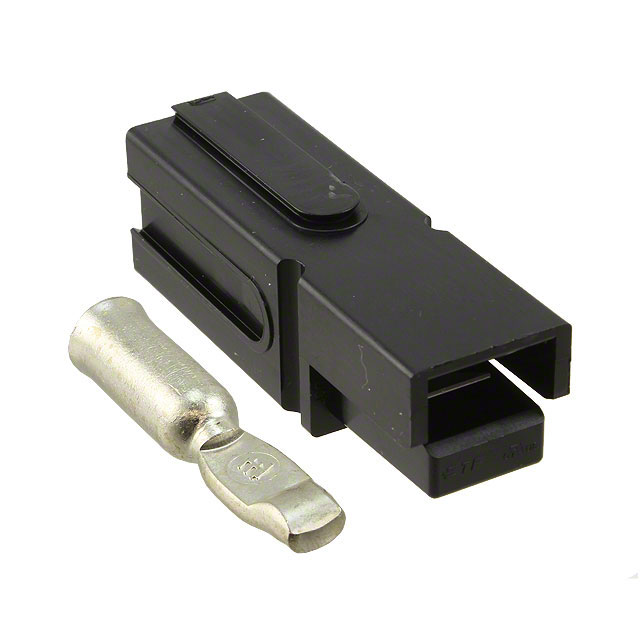

 TE Connectivity AMP Connectors | 120 A | Copper | Silver | -20 ░C | 105 ░C | Polycarbonate (PC) | 600 V | Spring Retention | Single Pole | 1 | Non-Gendered | 1 | 2 AWG | Free Hanging (In-Line) | Stackable | Black | Crimp |

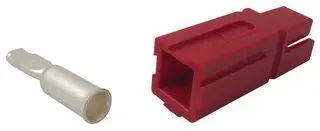

 TE Connectivity AMP Connectors | 120 A | Copper | Silver | -20 ░C | 105 ░C | Polycarbonate (PC) | 600 V | Spring Retention | Single Pole | 1 | Non-Gendered | 1 | 2 AWG | Free Hanging (In-Line) | Stackable | Red | Crimp |

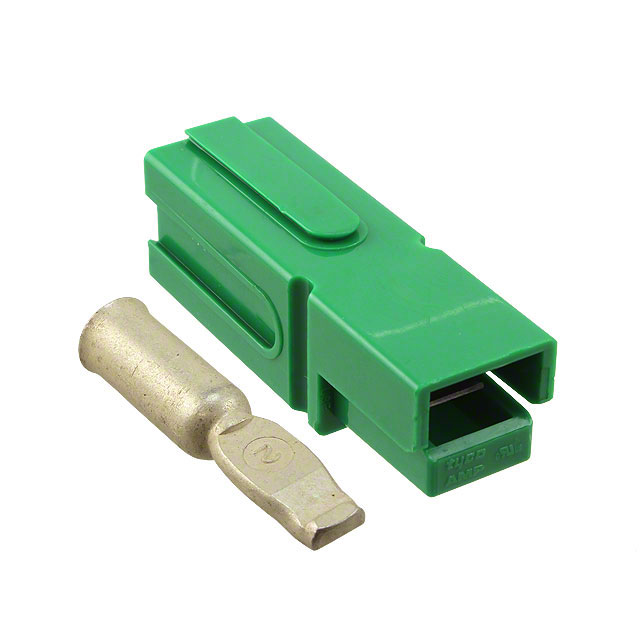

 TE Connectivity AMP Connectors | 120 A | Copper | Silver | -20 ░C | 105 ░C | Polycarbonate (PC) | 600 V | Spring Retention | Single Pole | 1 | Non-Gendered | 1 | 2 AWG | Free Hanging (In-Line) | Stackable | Green | Crimp |
