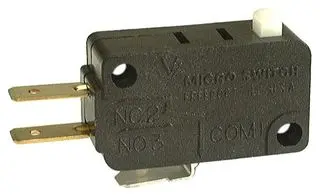

v7 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
MICROSWITCH SNAP ACTION; 6A/125VAC; WITH LEVER; SPST-NO; POS: 2
| Part | Electrical Life | Mounting Type | Switch Function | Termination Style | Release Force | Pretravel | Pretravel | Operating Position | Operating Position | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Differential Travel | Differential Travel | Voltage Rating - AC | Current Rating (Amps) | Operating Force | Circuit | Overtravel [custom] | Overtravel [custom] | Differential Travel [x] | Differential Travel [x] | Voltage Rating - DC | Operating Position [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 100000 Cycles | Chassis Mount | Off-Mom | Quick Connect | 2 gf | 0.25 in | 6.35 mm | 15.3 mm | 0.602 in | 10000000 Cycles | 177 °C | -40 C | Lever Straight | 1.4 mm | 0.055 in | 125 V | 6 A | 35 gf | SPST-NO | 0.125 in | 3.2 mm | ||||
 Honeywell Sensing and Productivity Solutions | 100000 Cycles | Chassis Mount | On-Mom | Quick Connect | 0.047 in | 1.2 mm | 14.7 mm | 0.579 in | 10000000 Cycles | 85 °C | -40 C | Round (Pin Plunger) | 125 V | 5 A | SPDT | 0.05 " | 1.27 mm | 0.01 in | 0.25 mm | ||||||
 Honeywell Sensing and Productivity Solutions | 100000 Cycles | Chassis Mount | On-Mom | Quick Connect | 14 gf | 0.075 in | 1.9 mm | 20.8 mm | 10000000 Cycles | 85 °C | -40 C | Lever Formed | 0.43 mm | 0.017 in | 125 V | 15 A 500 mA | 130 gf | SPDT | 0.045 " | 1.1 mm | 125 VDC | 0.82 in |
