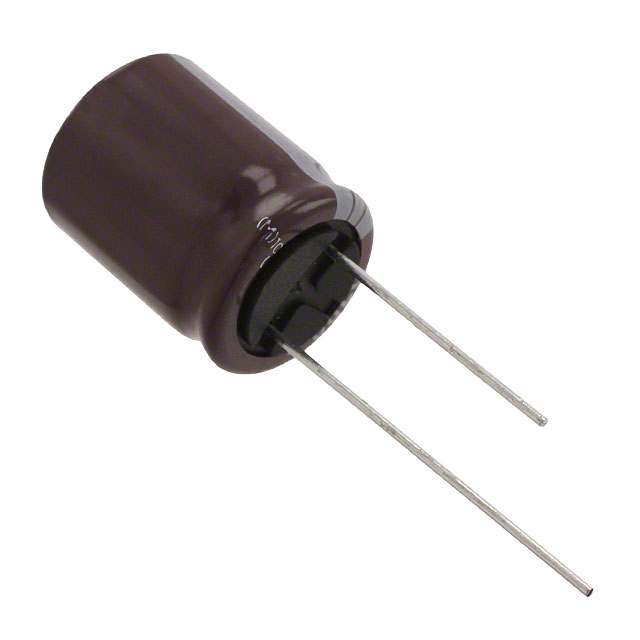

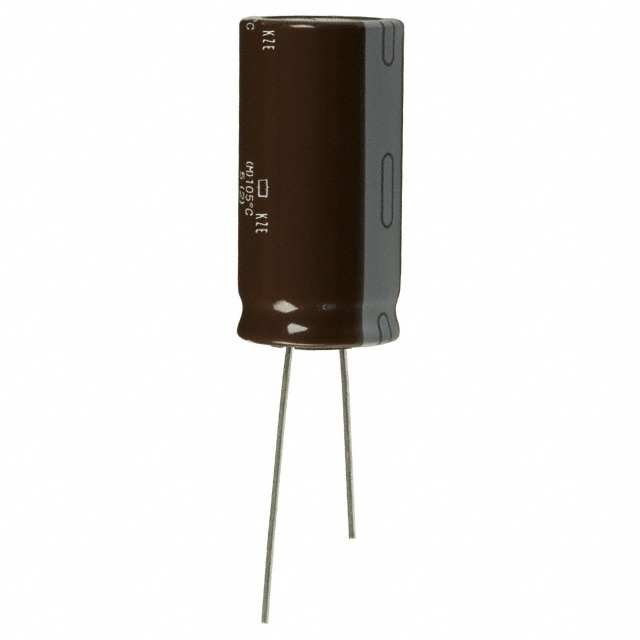

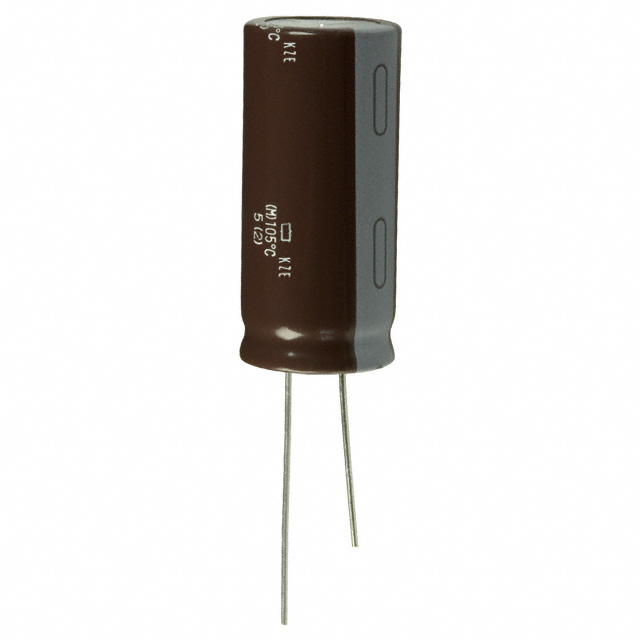

KZE Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 680UF 16 VOLT

Part	Tolerance	Package / Case	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Capacitance	Voltage - Rated	Mounting Type	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Chemi-Con EKZE160ETD681MJ16S	20 %	Can Radial	General Purpose	17.5 mm	0.689 in	38 mOhms	680 µF	16 V	Through Hole	0.197 "	5 mm	1.43 A	0.394 in	10 mm	Polar	858 mA	-40 C	105 ░C	4000 Hrs
Chemi-Con EKZE101ELL221ML20S	20 %	Can Radial	General Purpose			48 mOhms	220 µF	100 V	Through Hole	0.295 in	7.5 mm	1.35 A	0.63 in	16 mm	Polar	675 mA	-40 C	105 ░C	5000 Hrs	0.846 "	21.5 mm
Chemi-Con EKZE6R3ELL331MF11D	20 %	Can Radial	General Purpose		11 mm	130 mOhms	330 µF	6.3 VDC	Through Hole	0.098 in	2.5 mm	405 mA	0.248 "	6.3 mm	Polar	202.5 mA	-40 C	105 ░C	2000 Hrs			0.433 in
Chemi-Con EKZE500ETD821MK35S	20 %	Can Radial	General Purpose		36.5 mm	19 mOhms	820 µF	50 VDC	Through Hole	0.197 "	5 mm	2.96 A	0.492 in	12.5 mm	Polar	1.776 A	-40 C	105 ░C	5000 Hrs			1.437 "
Chemi-Con EKZE350ETD102MK25S	20 %	Can Radial	General Purpose		26.5 mm	18 mOhms	1000 µF	35 V	Through Hole	0.197 "	5 mm	2.77 A	0.492 in	12.5 mm	Polar	1.662 A	-40 C	105 ░C	5000 Hrs			1.043 in
Chemi-Con EKZE630ELL821MM25S	20 %	Can Radial	General Purpose		26.5 mm	24 mOhms	820 µF	63 V	Through Hole	0.295 in	7.5 mm	2.8 A	0.709 in	18 mm	Polar	1.68 A	-40 C	105 ░C	5000 Hrs			1.043 in
Chemi-Con EKZE500ETD471MK20S	20 %	Can Radial	General Purpose			27 mOhms	470 µF	50 VDC	Through Hole	0.197 "	5 mm	2.05 A	0.492 in	12.5 mm	Polar		-40 C	105 ░C	5000 Hrs	0.846 "	21.5 mm
Chemi-Con EKZE800ELL391MK30S	20 %	Can Radial	General Purpose			42 mOhms	390 µF	80 V	Through Hole	0.197 "	5 mm	1.5 A	0.492 in	12.5 mm	Polar	750 mA	-40 C	105 ░C	5000 Hrs	1.24 in	31.5 mm
Chemi-Con EKZE101ELL391MK40S	20 %	Can Radial	General Purpose			32 mOhms	390 µF	100 V	Through Hole	0.197 "	5 mm	1.8 A	0.492 in	12.5 mm	Polar	900 mA	-40 C	105 ░C	5000 Hrs	1.634 in			41.5 mm
Chemi-Con EKZE630ELL681ML25S	20 %	Can Radial	General Purpose		26.5 mm	25 mOhms	680 µF	63 V	Through Hole	0.295 in	7.5 mm	2.6 A	0.63 in	16 mm	Polar	1.56 A	-40 C	105 ░C	5000 Hrs			1.043 in
