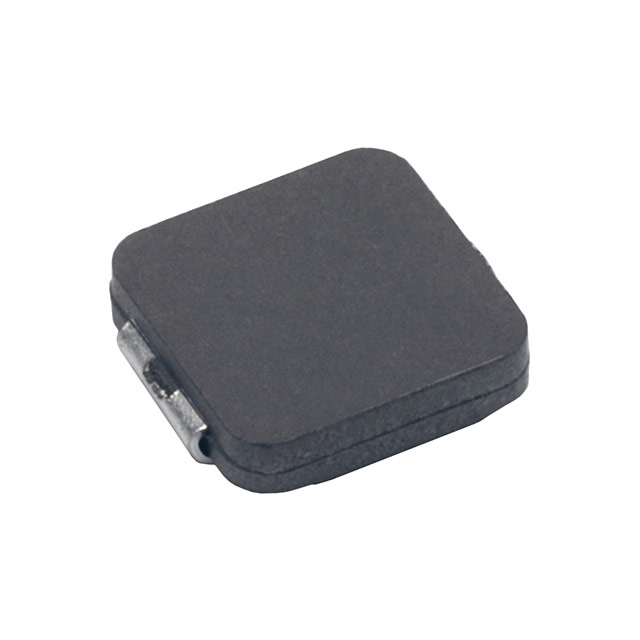

MPX1D1250 Series

Manufacturer: KEMET

Catalog

INDUCTOR POWER SHIELDED WIREWOUND 0.47UH 20% 100KHZ METAL 34.8A 0.0018OHM DCR T/R

Part	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	DC Resistance (DCR) [Max]	Tolerance	Current Rating (Amps)	Shielding	Type	Frequency - Self Resonant	Material - Core	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	DC Resistance (DCR)
KEMET MPX1D1250LR47	470 nH	0.197 in	5 mm	Nonstandard	1.8 mOhm	20 %	34.8 A	Shielded	Drum Core Wirewound	54 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	55 A	155 C	-55 C	Surface Mount
KEMET MPX1D1250L680	68 µH	0.197 in	5 mm	Nonstandard		20 %	3.6 A	Shielded	Drum Core Wirewound	3 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	4.5 A	155 C	-55 C	Surface Mount	163 mOhm
KEMET MPX1D1250LR22	220 nH	0.197 in	5 mm	Nonstandard		20 %	42.7 A	Shielded	Drum Core Wirewound	95 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	85 A	155 C	-55 C	Surface Mount	1.2 mOhm
KEMET MPX1D1250L470	47 µH	0.197 in	5 mm	Nonstandard	105.4 mOhm	20 %	4.5 A	Shielded	Drum Core Wirewound	4 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	5.5 A	155 C	-55 C	Surface Mount
KEMET MPX1D1250L4R7	4.7 ÁH	0.197 in	5 mm	Nonstandard		20 %	14.4 A	Shielded	Drum Core Wirewound	13 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm		155 C	-55 C	Surface Mount	10.1 mOhm
KEMET MPX1D1250L330	33 µH	0.197 in	5 mm	Nonstandard		20 %	5.4 A	Shielded	Drum Core Wirewound	5 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	7.5 A	155 C	-55 C	Surface Mount	72 mOhm
KEMET MPX1D1250L1R0	1 µH	0.197 in	5 mm	Nonstandard	2.6 mOhm	20 %	28.8 A	Shielded	Drum Core Wirewound	34 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	43 A	155 C	-55 C	Surface Mount
KEMET MPX1D1250L100	10 µH	0.197 in	5 mm	Nonstandard	20.6 mOhm	20 %	10.1 A	Shielded	Drum Core Wirewound	8.5 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	13.5 A	155 C	-55 C	Surface Mount
KEMET MPX1D1250LR33	330 nH	0.197 in	5 mm	Nonstandard	1.3 mOhm	20 %	41.6 A	Shielded	Drum Core Wirewound	68 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	65 A	155 C	-55 C	Surface Mount
KEMET MPX1D1250L1R5	1.5 µH	0.197 in	5 mm	Nonstandard	3.6 mOhm	20 %	24.2 A	Shielded	Drum Core Wirewound	25 MHz	Metal Composite	100 kHz	0.52 in	13.2 mm	0.492 "	12.5 mm	32 A	155 C	-55 C	Surface Mount
