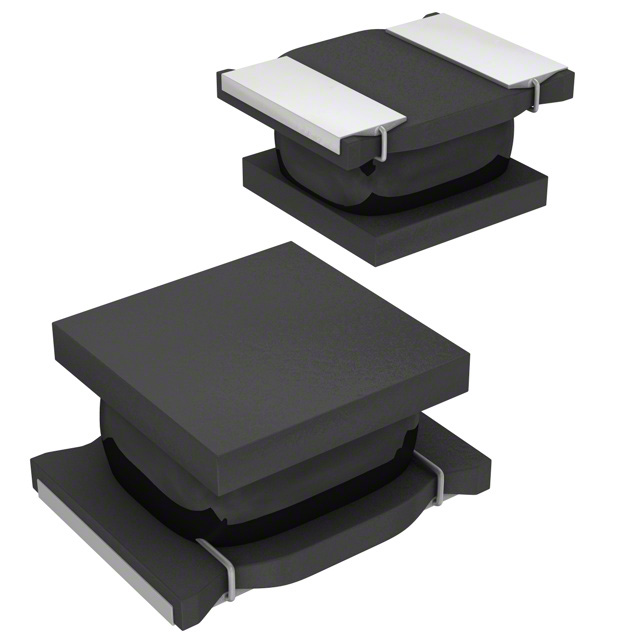

LQH3NPN Series

Manufacturer: Murata Power Solutions Inc.

Catalog

FIXED IND 1UH 1.62A 48 MOHM SMD

Part	Current - Saturation (Isat)	Type	Inductance Frequency - Test	Package / Case	Package / Case	Supplier Device Package	Supplier Device Package	Mounting Type	Material - Core	Inductance	Tolerance	Shielding	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)
Murata Power Solutions Inc. LQH3NPN1R0NJ0L	1.65 A	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	1 µH	30 %	Shielded	1.62 A	1.2 mm	0.047 in	140 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C
Murata Power Solutions Inc. LQH3NPN220MJ0L	350 mA	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	22 µH	20 %	Shielded	0.51 A	1.2 mm	0.047 in	25 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C	720 mOhm
Murata Power Solutions Inc. LQH3NPN330NJ0L	280 mA	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	33 µH	30 %	Shielded	410 mA	1.2 mm	0.047 in	20 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C	1.08 Ohm
Murata Power Solutions Inc. LQH3NPN2R2NJ0L	1.15 A	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	2.2 µH	30 %	Shielded	1.46 A	1.2 mm	0.047 in	90 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C	82.8 mOhm
Murata Power Solutions Inc. LQH3NPN3R3MM0L	1 A	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	3.3 µH	20 %	Shielded	1.45 A	1.5 mm		75 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C	111 mOhm	0.059 "
Murata Power Solutions Inc. LQH3NPN1R5NG0L	1.3 A	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	1.5 µH	30 %	Shielded	1.47 A	1 mm	0.039 "	130 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C			120 mOhm
Murata Power Solutions Inc. LQH3NPN151MGRL	160 mA	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	150 µH	20 %	Shielded	0.18 A	1 mm	0.039 "	3 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C			5.88 Ohm
Murata Power Solutions Inc. LQH3NPN4R7NJ0L	780 mA	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	4.7 ÁH	30 %	Shielded	1.12 A	1.2 mm	0.047 in	65 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C	156 mOhm
Murata Power Solutions Inc. LQH3NPN1R5NJ0L	1.2 A	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	1.5 µH	30 %	Shielded	1.5 A	1.2 mm	0.047 in	90 MHz	0.118 in	3 mm	3 mm	0.118 in	85 °C	-40 °C			66 mOhm
Murata Power Solutions Inc. LQH3NPN470MGRL	260 mA	Drum Core Wirewound	1 MHz	1212	3030 Metric	3030 Metric	1212	Surface Mount	Ferrite	47 µH	20 %	Shielded	270 mA	1 mm	0.039 "	5 MHz	0.118 in	3 mm	3 mm	0.118 in	105 ░C	-40 °C	1.68 Ohm
