TLHB-V88R Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

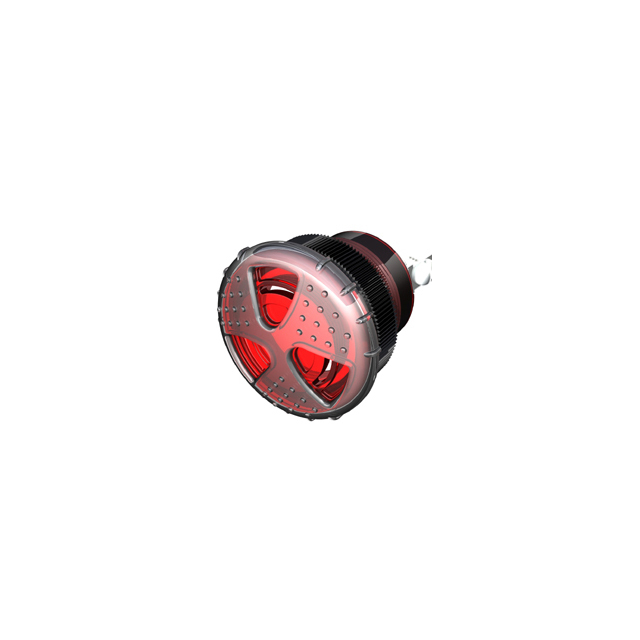

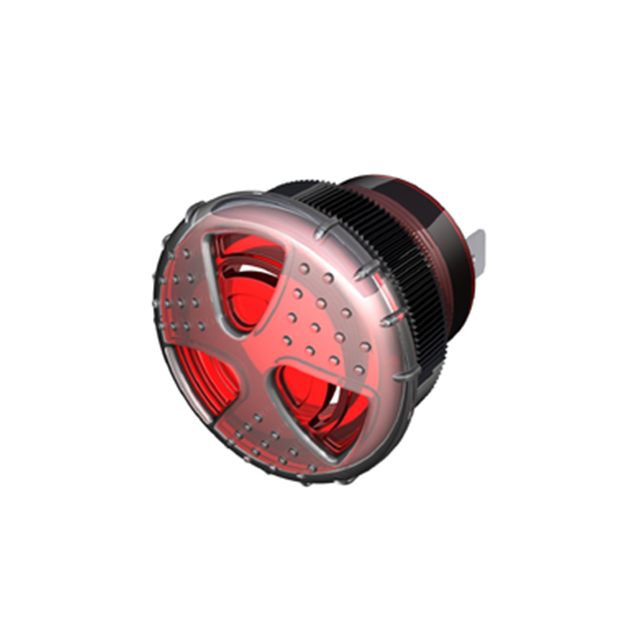

BUZZER 35.8MM PNL MNT
| Part | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Voltage Range [Max] | Voltage Range [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Input Type | Mounting Type | Operating Mode | Size / Dimension [diameter] | Size / Dimension [diameter] | Driver Circuitry | Port Location | Ingress Protection | Sound Pressure Level (SPL) | Termination | Termination | Termination | Approval Agency | Frequency | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 50 mA | 110 mA | 30 V | 9 V | 1.25 " | 31.75 mm | DC | Panel Mount | Pulse Slow | 35.8 mm | 1.409 in | Indicator Internally Driven | Top | IP68 - Dust Tight Waterproof | 103 dB | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | UL UR | 2.9 kHz | |
 Floyd Bell Inc | 50 mA | 110 mA | 30 V | 9 V | 1.25 " | 31.75 mm | DC | Panel Mount | Fast Pulse | 35.8 mm | 1.409 in | Indicator Internally Driven | Top | IP68 - Dust Tight Waterproof | 103 dB | 0.25 " | Quick Connect Tab | 6.35 mm | UL UR | 2.9 kHz | |
Floyd Bell Inc | 50 mA | 110 mA | 30 V | 9 V | 1.25 " | 31.75 mm | DC | Panel Mount | Pulse Slow | 35.8 mm | 1.409 in | Indicator Internally Driven | Top | IP68 - Dust Tight Waterproof | 103 dB | 0.25 " | Quick Connect Tab | 6.35 mm | UL UR | 2.9 kHz | |
 Floyd Bell Inc | 50 mA | 110 mA | 30 V | 9 V | 1.25 " | 31.75 mm | DC | Panel Mount | Fast Pulse | 35.81 mm | Indicator Internally Driven | Top | IP68 - Dust Tight Waterproof | 103 dB | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | UL UR | 2.9 kHz | 1.41 in |
