284865 Series

Catalog

CONN RCPT 4POS IDC 22-24AWG TIN

Part	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Wire Type	Contact Type	Cable Termination	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Features	Color
TE Connectivity Raychem Cable Protection 284865-4	Receptacle	24 AWG	22 AWG	Free Hanging (In-Line) Right Angle	Discrete	Female Blade Socket	IDC	Tin	4	0.098 in	2.5 mm	1	Mates to PCB
TE Connectivity Raychem Cable Protection 2-284865-0	Receptacle	24 AWG	22 AWG	Free Hanging (In-Line) Right Angle	Discrete	Female Blade Socket	IDC	Tin	10	0.098 in	2.5 mm	1	Mates to PCB
TE Connectivity Raychem Cable Protection 2-284865-5	Receptacle	24 AWG	22 AWG	Free Hanging (In-Line) Right Angle	Discrete	Female Blade Socket	IDC	Tin		0.098 in	2.5 mm	1	Mates to PCB	Red
TE Connectivity Raychem Cable Protection 284865-9	Receptacle	24 AWG	22 AWG	Free Hanging (In-Line) Right Angle	Discrete	Female Blade Socket	IDC	Tin	9	0.098 in	2.5 mm	1	Mates to PCB

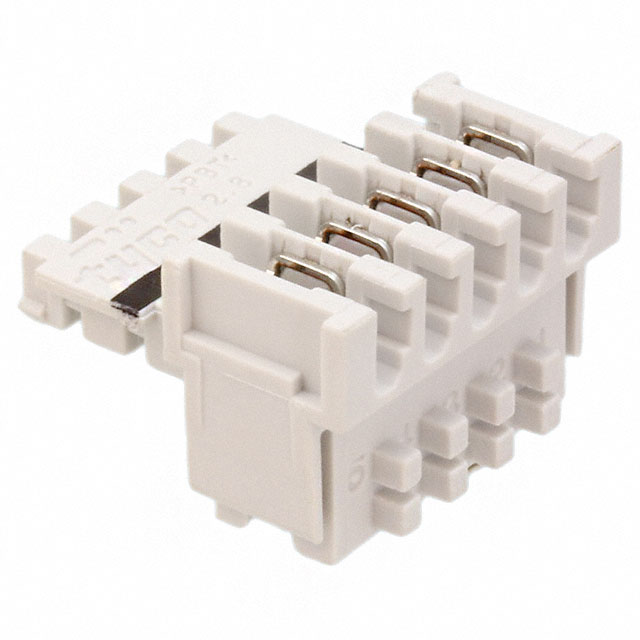

TE Connectivity Raychem Cable Protection 284865-5	Receptacle	24 AWG	22 AWG	Free Hanging (In-Line) Right Angle	Discrete	Female Blade Socket	IDC	Tin		0.098 in	2.5 mm	1	Mates to PCB
TE Connectivity Raychem Cable Protection 1-284865-0	Receptacle	24 AWG	22 AWG	Free Hanging (In-Line) Right Angle	Discrete	Female Blade Socket	IDC	Tin	10	0.098 in	2.5 mm	1	Mates to PCB
