CMD15-21 Series

Manufacturer: Visual Communications Company - VCC

Catalog

LED BLUE CLEAR 1206 SMD

Part	Lens Style	Height (Max) [z]	Package / Case	Wavelength - Peak	Color	Current - Test	Lens Size [y]	Lens Size [x]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Configuration	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Mounting Type	Millicandela Rating	Height (Max) [Max] [z]
Visual Communications Company - VCC CMD15-21UBC/TR8	Rectangle with Flat Top	1.1 mm	1206 (3216 Metric)	468 nm	Blue	20 mA	1.5 mm	2 mm	1206	3.3 V	Standard	Colorless	3.2 mm	1.5 mm	Clear	Surface Mount	45 mcd

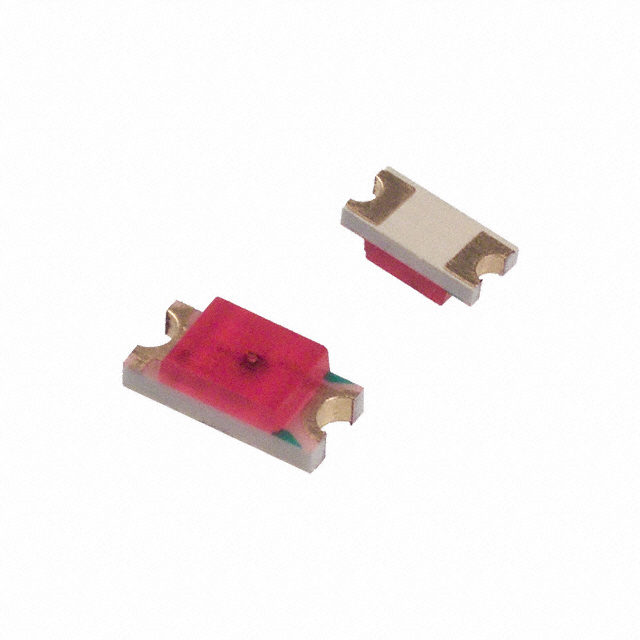

Visual Communications Company - VCC CMD15-21VRD/TR8	Rectangle with Flat Top	1.1 mm	1206 (3216 Metric)	632 nm	Red	20 mA	1.5 mm	2 mm	1206	1.7 V	Standard	Red	3.2 mm	1.5 mm	Diffused	Surface Mount	40 mcd

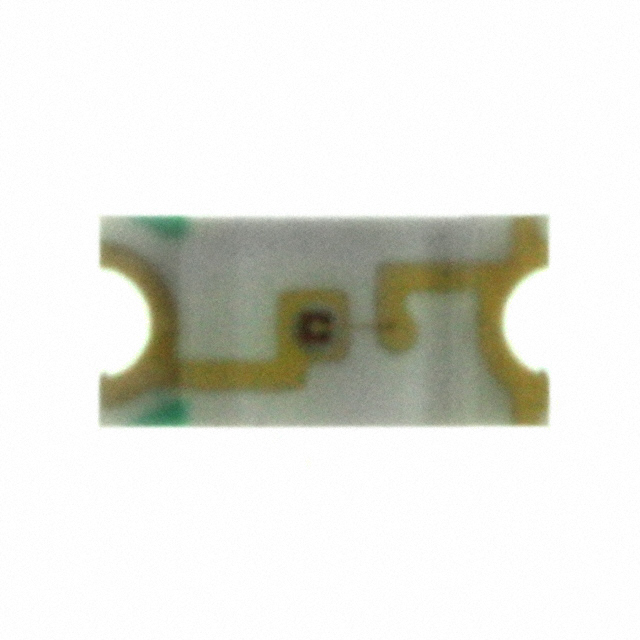

Visual Communications Company - VCC CMD15-21VRC/TR8	Rectangle with Flat Top	1.1 mm	1206 (3216 Metric)	632 nm	Red	20 mA	1.5 mm	2 mm	1206	2 V	Standard	Colorless	3.2 mm	1.5 mm	Clear	Surface Mount	38 mcd
Visual Communications Company - VCC CMD15-21VGD/TR8	Rectangle with Flat Top	1.1 mm	1206 (3216 Metric)	573 nm	Green	20 mA	1.5 mm	2 mm	1206	2 V	Standard	Green	3.2 mm	1.5 mm	Diffused	Surface Mount	24 mcd

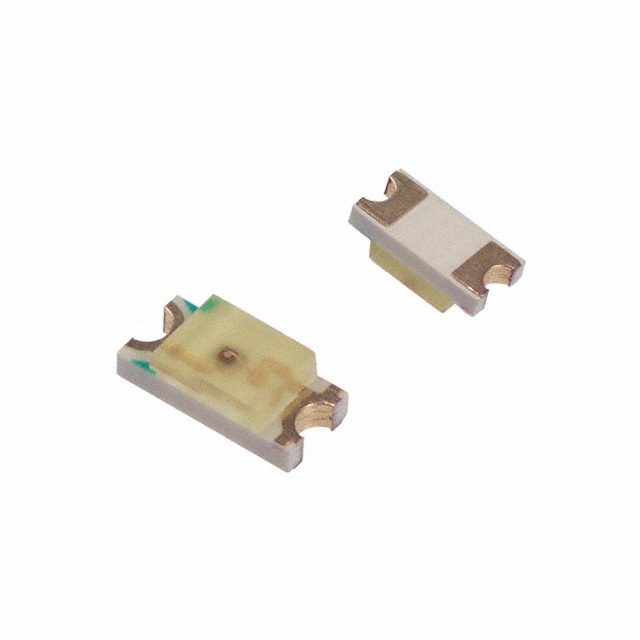

Visual Communications Company - VCC CMD15-21VYD/TR8	Rectangle with Flat Top	1.1 mm	1206 (3216 Metric)	591 nm	Yellow	20 mA	1.5 mm	2 mm	1206	2 V	Standard	Yellow	3.2 mm	1.5 mm	Diffused	Surface Mount	25 mcd
Visual Communications Company - VCC CMD15-21VGC/TR8	Rectangle with Flat Top	1.1 mm	1206 (3216 Metric)	575 nm	Green	20 mA	1.5 mm	2 mm	1206	2 V	Standard	Colorless	3.2 mm	1.5 mm	Clear	Surface Mount	15 mcd
Visual Communications Company - VCC CMD15-21UGC/TR8	Rectangle with Flat Top		1206 (3216 Metric)	565 nm	Green	20 mA	1.5 mm	2 mm	1206	2.1 V	Standard	Colorless	3.2 mm	1.5 mm	Clear	Surface Mount	12 mcd	1.3 mm
