151048 Series

CP-6.5 Header, 6.50mm Pitch, Dual Row, Vertical, Polarized, Positive Lock, Tray Packaging, Glow-Wire Capable, 2 Circuits, Black

Manufacturer: Molex

Catalog

CP-6.5 Header, 6.50mm Pitch, Dual Row, Vertical, Polarized, Positive Lock, Tray Packaging, Glow-Wire Capable, 2 Circuits, Black

Part	Material Flammability Rating	Insulation Material	Applications	Insulation Color	Contact Finish - Post	Number of Rows	Contact Material	Number of Positions Loaded	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Style	Shrouding	Contact Shape	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Type	Features	Connector Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating
Molex 1510481209	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Red	Tin	2	Copper Alloy	All	2	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm

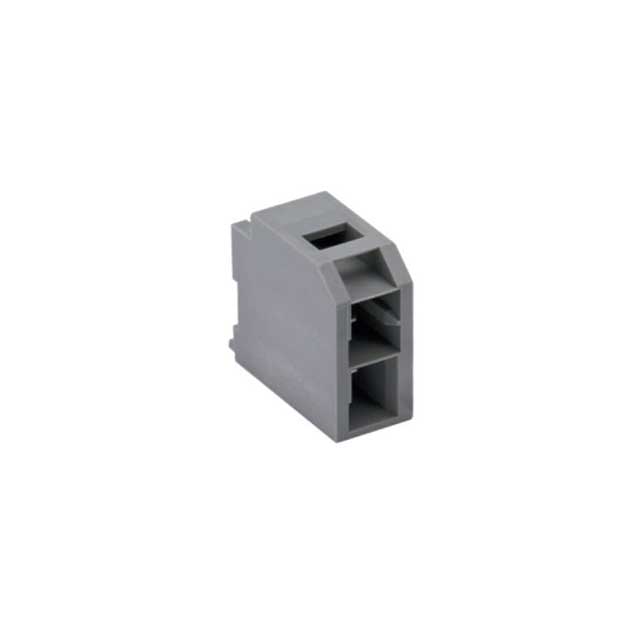

Molex 1510481202	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Gray	Tin	2	Copper Alloy	All	2	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm

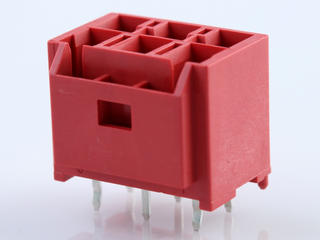

Molex 1510481609	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Red	Tin	2	Copper Alloy	All	6	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm	6.5 mm	0.256 in

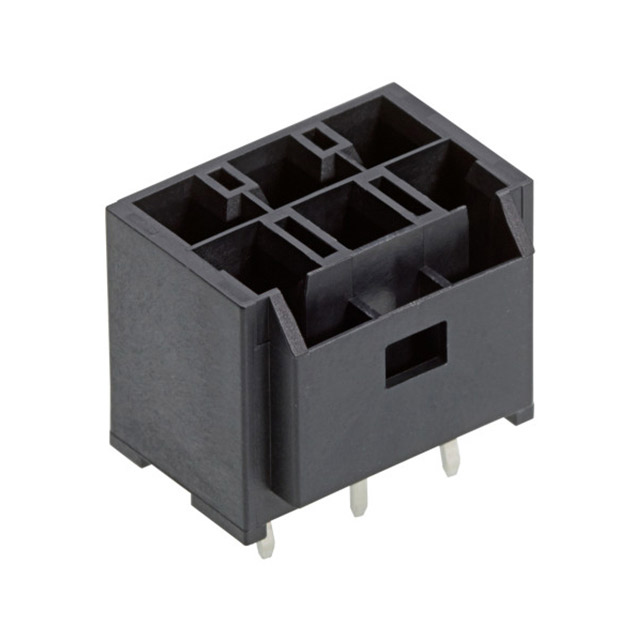

Molex 1510481606	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Black	Tin	2	Copper Alloy	All	6	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm	6.5 mm	0.256 in

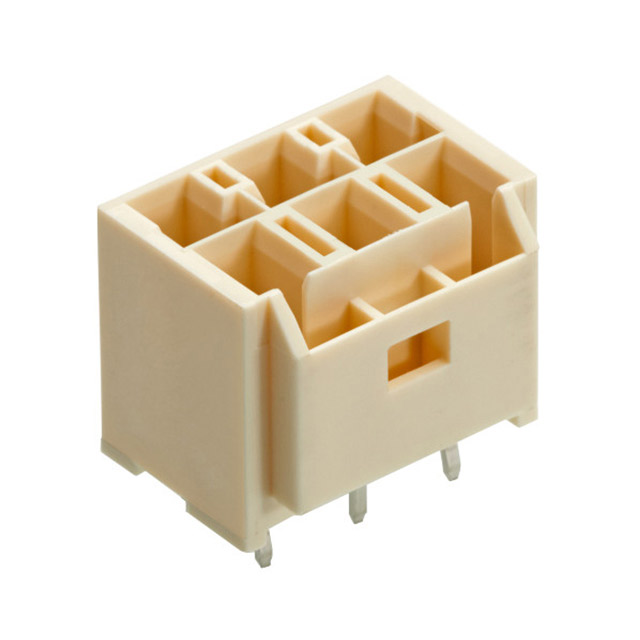

Molex 1510481611	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Natural	Tin	2	Copper Alloy	All	6	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm	6.5 mm	0.256 in

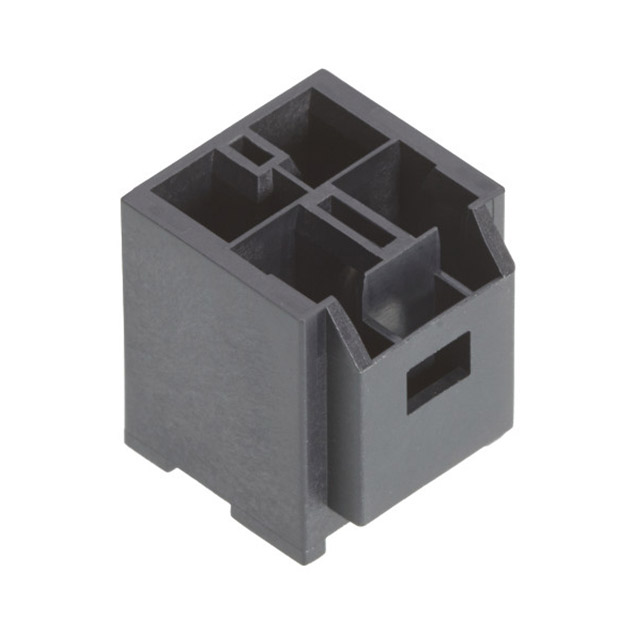

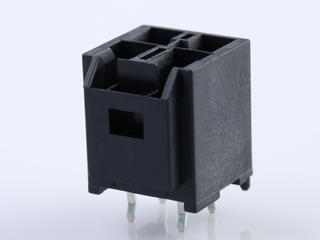

Molex 1510481406	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Black	Tin	2	Copper Alloy	All	4	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm	6.5 mm	0.256 in
Molex 1510482205	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial		Tin	2	Copper Alloy	All	2	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm

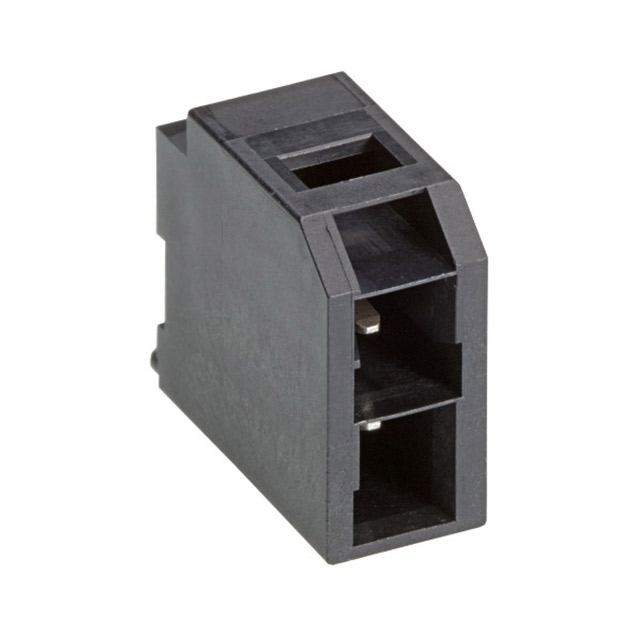

Molex 1510482206	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Black	Tin	2	Copper Alloy	All	2	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm

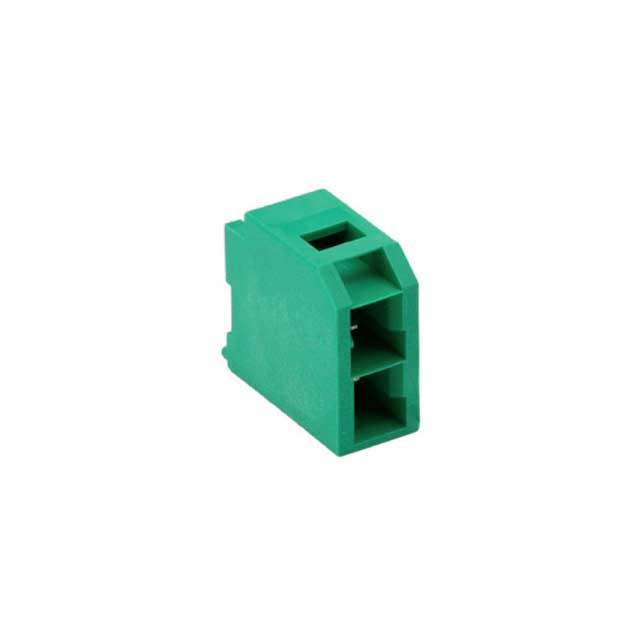

Molex 1510482207	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Green	Tin	2	Copper Alloy	All	2	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm

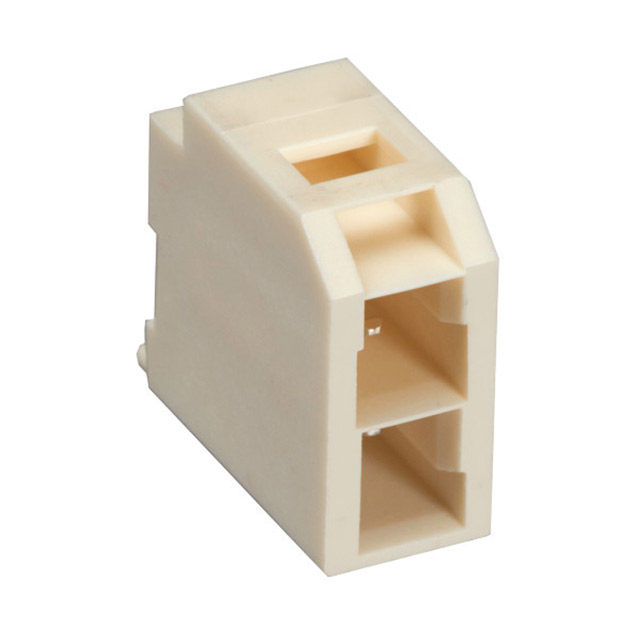

Molex 1510481211	UL94 V-0	Glass Filled Nylon Polyamide (PA)	General Purpose Industrial	Natural	Tin	2	Copper Alloy	All	2	6.5 mm	0.256 in	Through Hole	Board to Cable/Wire	Shrouded - 4 Wall	Square	Kinked Pin Solder	1.27 µm	50 µin	0.348 in	8.85 mm	0.63 in	16 mm	Male Pin	Board Guide	Header	Latch Holder	0.15 in	3.81 mm
