178488 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

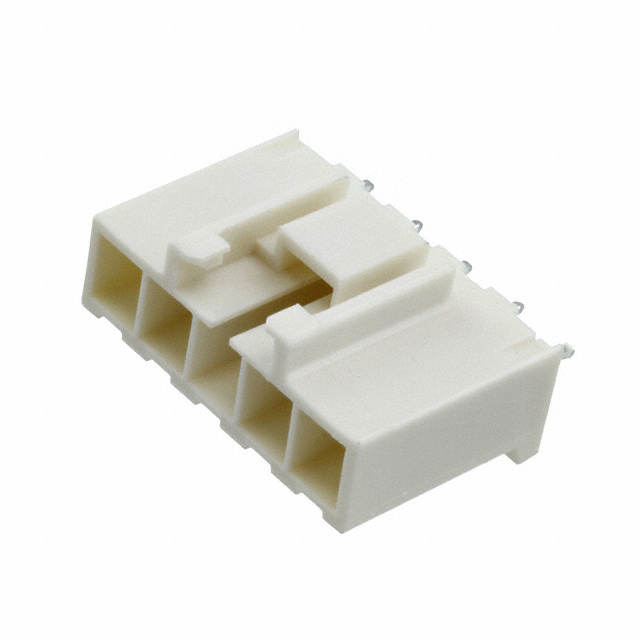

CONN HEADER VERT 5POS 3.96MM
| Part | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Material | Contact Type | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Insulation Height | Insulation Height | Current Rating (Amps) | Applications | Insulation Color | Insulation Material | Number of Rows | Mounting Type | Contact Shape | Pitch - Mating | Pitch - Mating | Connector Type | Style | Shrouding | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Locking Ramp | -30 ░C | 105 ░C | UL94 V-0 | Brass | Tab | Kinked Pin Solder | 0.15 in | 3.81 mm | Tin | 0.551 in | 14 mm | Varies by Wire Gauge | General Purpose | Natural | Polyamide (PA66) Nylon 6/6 | 1 | Through Hole | Rectangular | 0.156 in | 3.96 mm | Header | Board to Cable/Wire | Shrouded - 4 Wall | All |

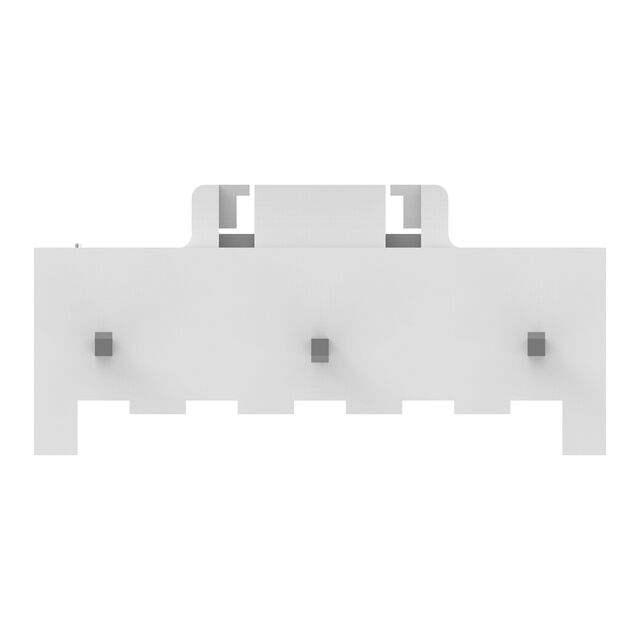

 TE Connectivity Raychem Cable Protection | Locking Ramp | -30 ░C | 105 ░C | UL94 V-0 | Brass | Tab | Kinked Pin Solder | 0.15 in | 3.81 mm | Tin | 0.551 in | 14 mm | Varies by Wire Gauge | General Purpose | Natural | Polyamide (PA66) Nylon 6/6 | 1 | Through Hole | Rectangular | 0.312 in | 7.92 mm | Header | Board to Cable/Wire | Shrouded - 4 Wall | All |
