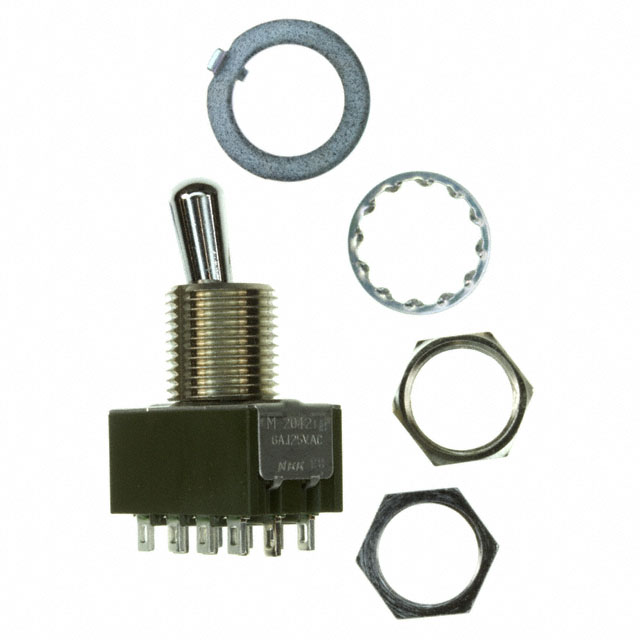

M2042BB Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 4PDT 6A 125V
| Part | Actuator Material | Electrical Life | Actuator Type | Current Rating (Amps) | Voltage Rating - AC | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Bushing Thread | Mounting Type | Switch Function | Termination Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | Standard Round | 4 A 6 A | 125 V | 11.5 mm | 12.5 mm | 30 V | Non-Illuminated | 85 °C | -30 ░C | 4PDT | M12 x 1 | Panel Mount | On-On | Solder Lug | |
 NKK Switches | Brass Chrome Plated | 25000 Steps | Standard Round | 4 A 6 A | 125 V | 11.5 mm | 12.5 mm | 30 V | Non-Illuminated | 85 °C | -30 ░C | 4PDT | M12 x 1 | Panel Mount | On-On | Solder Lug | Epoxy Sealed Terminals |
