TS5A12301E Series

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 1-channel analog switch with 1.8-V input logic

Catalog

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 1-channel analog switch with 1.8-V input logic

Part	Crosstalk	On-State Resistance (Max) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Package / Case	-3db Bandwidth	Number of Circuits	Mounting Type	Charge Injection	Switch Circuit	Supplier Device Package	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]

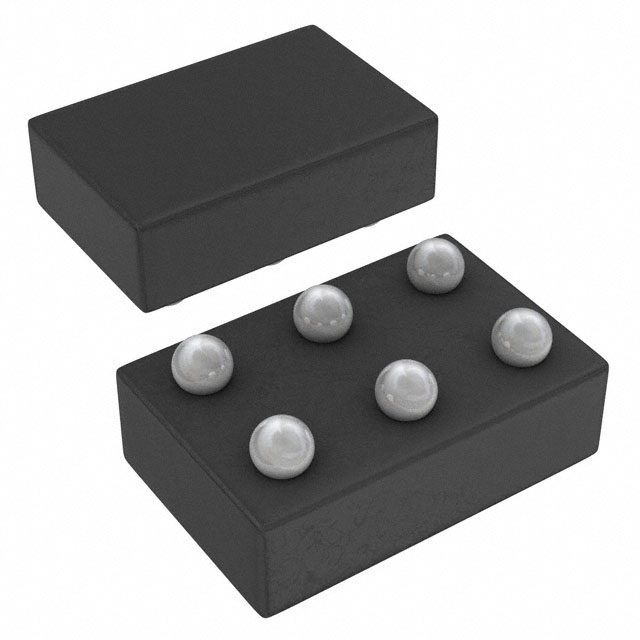

Texas Instruments TS5A12301EYFPR	-63 dB	750 mOhm	28 pF	28 pF	20 nA	2:1	85 °C	-40 °C	225 ns	215 ns	6-XFBGA DSBGA	55 MHz	1	Surface Mount	97 pC	SPDT	6-DSBGA	50 mOhm	2.25 V	5.5 V

Catalog

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 1-channel analog switch with 1.8-V input logic

Key Features

• Low ON-State Resistance (0.75 Ω)Low Charge InjectionExcellent ON-State Resistance MatchingIsolation in Power-Down Mode, VCC= 0Specified Break-Before-Make Switching2.25-V to 5.5-V Power Supply (VCC)6-MΩ Input Pulldown Allows Control Input (IN) to Be Unconnected1.8-V Compatible Control Input Threshold Independent of VCCLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Performance Tested Per JESD 223000-V Human-Body Model (A114-B, Class II)1000-V Charged-Device Model (C101)ESD Performance COM Port to GND8000-V Human-Body Model (A114-B, Class II)±8-kV Contact Discharge (IEC 61000-4-2)±15-kV Air-Gap Discharge (IEC 61000-4-2)APPLICATIONSCell PhonesPDAsPortable InstrumentationMP3 PlayersPortable Media PlayersAll other trademarks are the property of their respective ownersLow ON-State Resistance (0.75 Ω)Low Charge InjectionExcellent ON-State Resistance MatchingIsolation in Power-Down Mode, VCC= 0Specified Break-Before-Make Switching2.25-V to 5.5-V Power Supply (VCC)6-MΩ Input Pulldown Allows Control Input (IN) to Be Unconnected1.8-V Compatible Control Input Threshold Independent of VCCLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Performance Tested Per JESD 223000-V Human-Body Model (A114-B, Class II)1000-V Charged-Device Model (C101)ESD Performance COM Port to GND8000-V Human-Body Model (A114-B, Class II)±8-kV Contact Discharge (IEC 61000-4-2)±15-kV Air-Gap Discharge (IEC 61000-4-2)APPLICATIONSCell PhonesPDAsPortable InstrumentationMP3 PlayersPortable Media PlayersAll other trademarks are the property of their respective owners

Description

The TS5A12301E device is a bidirectional, 1-channel, single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with excellent channel-to-channel ON-state resistance matching and the break-before-make feature to prevent signal distortion during the transferring of a signal from one path to another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The control input (IN) pin can be connected to low-voltage GPIOs, allowing it to be controlled by 1.8-V signals. The TS5A12301E has ±15-kV air-gap discharge and ±8-kV contact discharge ESD protection for the COM port to GND, which makes it compliant with the IEC Level 4 ESD standard (IEC 61000-4-2). The TS5A12301E device is a bidirectional, 1-channel, single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with excellent channel-to-channel ON-state resistance matching and the break-before-make feature to prevent signal distortion during the transferring of a signal from one path to another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The control input (IN) pin can be connected to low-voltage GPIOs, allowing it to be controlled by 1.8-V signals. The TS5A12301E has ±15-kV air-gap discharge and ±8-kV contact discharge ESD protection for the COM port to GND, which makes it compliant with the IEC Level 4 ESD standard (IEC 61000-4-2).
