C016 10I014 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

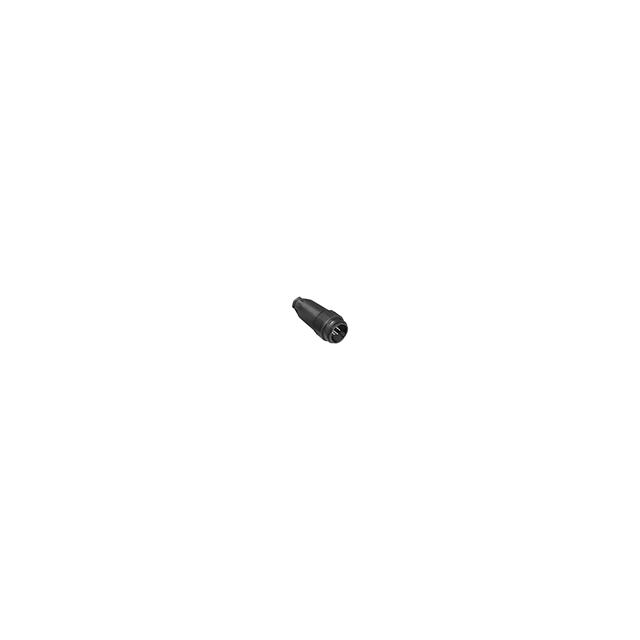

CONN PLUG HSNG MALE 15POS INLINE
| Part | Orientation | Features | Type | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Material Flammability Rating | Shell Material | Shell Size - Insert [custom] | Contact Size | Mounting Type | Housing Color | Shielding | Contact Type | Number of Positions | Ingress Protection | Fastening Type | Contact Shape | Note | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | N (Normal) | Backshell Cable Clamp Coupling Nut | For Male Pins | 125 °C | -40 C | 1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector | UL94 V-0 | Nylon 6/6 Polyamide (PA66) | 2 | 1.5 mm 1.6 mm | Free Hanging (In-Line) | Black | Unshielded | Crimp | 15 | IP65 - Dust Tight Water Resistant | Bayonet Lock | Circular | Contacts Not Included | Plug Housing |
