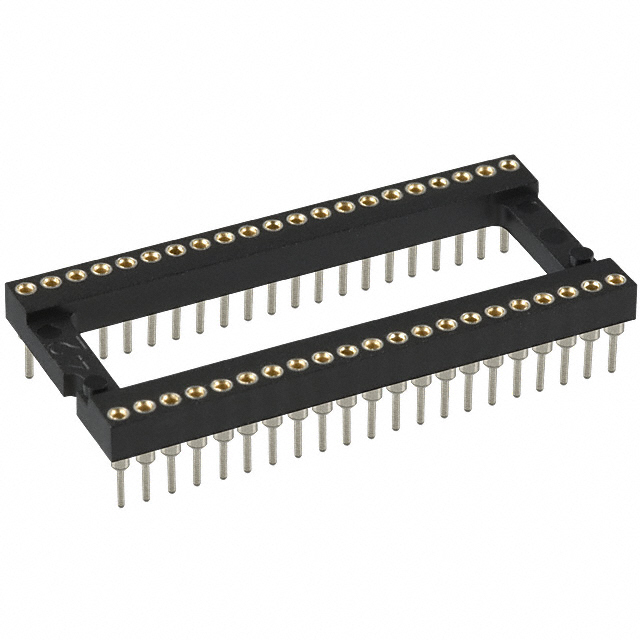

117-47 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
STANDRD SOLDRTL
| Part | Contact Resistance | Current Rating (Amps) | Termination Post Length | Termination Post Length | Material Flammability Rating | Features | Contact Material - Post | Contact Finish - Post | Termination | Mounting Type | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [x] | Type [custom] | Type [custom] | Type | Contact Finish Thickness - Mating | Contact Material - Mating | Contact Finish - Mating | Pitch - Post | Pitch - Post | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Housing Material | Number of Positions or Pins (Grid) | Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Open Frame | Brass Alloy | Tin | Solder | Through Hole | 2 | 48 | 24 | 15.24 mm | 0.6 in | DIP | Flash | Beryllium Copper | Gold | 0.07 in | 1.78 mm | -55 C | 125 °C | 0.07 in | 1.78 mm | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | |||
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Open Frame | Brass Alloy | Tin | Solder | Through Hole | 15.24 mm | 0.6 in | DIP | Flash | Beryllium Copper | Gold | 0.07 in | 1.78 mm | -55 C | 125 °C | 0.07 in | 1.78 mm | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 42 | |||||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Open Frame | Brass Alloy | Tin | Solder | Through Hole | 15.24 mm | 0.6 in | DIP | Flash | Beryllium Copper | Gold | 0.07 in | 1.78 mm | -55 C | 125 °C | 0.07 in | 1.78 mm | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 40 | |||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Open Frame | Brass Alloy | Tin | Solder | Through Hole | 32 | 2 | 15.24 mm | 0.6 in | DIP | Flash | Beryllium Copper | Gold | 0.07 in | 1.78 mm | -55 C | 125 °C | 0.07 in | 1.78 mm | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 64 | |||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Open Frame | Brass Alloy | Tin | Solder | Through Hole | DIP | Flash | Beryllium Copper | Gold | 0.07 in | 1.78 mm | -55 C | 125 °C | 0.07 in | 1.78 mm | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 28 | 0.4 in | ||||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | Open Frame | Brass Alloy | Tin | Solder | Through Hole | 15.24 mm | 0.6 in | DIP | Flash | Beryllium Copper | Gold | 0.07 in | 1.78 mm | -55 C | 125 °C | 0.07 in | 1.78 mm | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||||||
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Open Frame | Brass Alloy | Tin | Solder | Through Hole | 32 | 2 | DIP | Flash | Beryllium Copper | Gold | 0.07 in | 1.78 mm | -55 C | 125 °C | 0.07 in | 1.78 mm | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 64 | 0.75 in | 19.05 mm |
