2004 Series
Manufacturer: Curtis Industries
Beta
⌘K

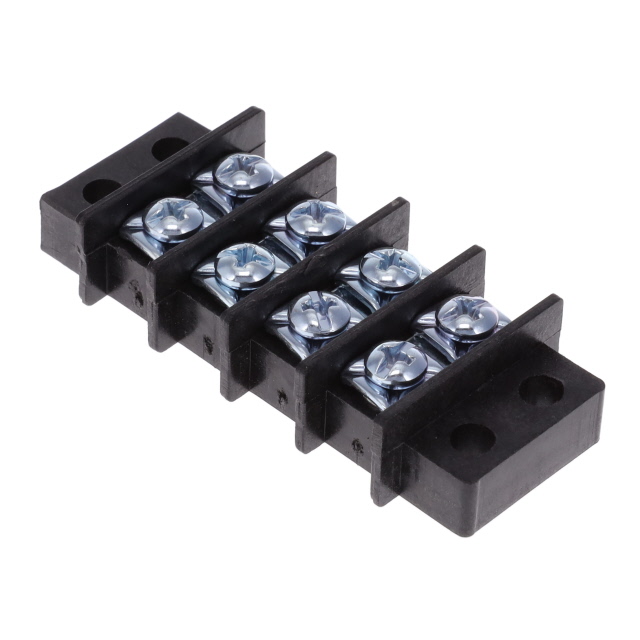

CONN BARRIER STRIP 4CIRC 0.438"
| Part | Operating Temperature | Mounting Type | Material Flammability Rating | Terminal Screw Material | Material - Insulation | Bottom Termination | Wire Gauge [Max] | Wire Gauge [Min] | Top Termination | Number of Wire Entries | Pitch [x] | Pitch [x] | Number of Rows [custom] | Current Rating (Amps) | Number of Circuits | Features | Terminal Block Type | Barrier Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | 110 °C | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide (PPO) | Closed | 22 AWG | 10 AWG | Screws with Captive Plate | 8 | 0.438 in | 11.12 mm | 2 | 30 A | 4 | Flange | Barrier Block | 2 Wall (Dual) |
