2307817 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

14P,2MM,BB,REC,DRVT,SMD,0.1AU,TR

Part	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Post	Fastening Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Number of Positions Loaded	Contact Shape	Features	Insulation Material	Contact Finish - Mating	Number of Positions	Mounting Type	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Type	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions
TE Connectivity Raychem Cable Protection 1-2307817-4	2	125 °C	-40 °C	3.94 µin	0.1 µm	Phosphor Bronze	Tin	Push-Pull	Solder	3 µm	118.1 µin	125 VDC	All	Square	Pick and Place	Liquid Crystal Polymer (LCP)	Gold	14	Surface Mount	2 A	0.079 in	2 mm	Receptacle Bottom or Top Entry	Female Socket	Black	UL94 V-0	0.177 in	4.5 mm	0.079 in	2 mm

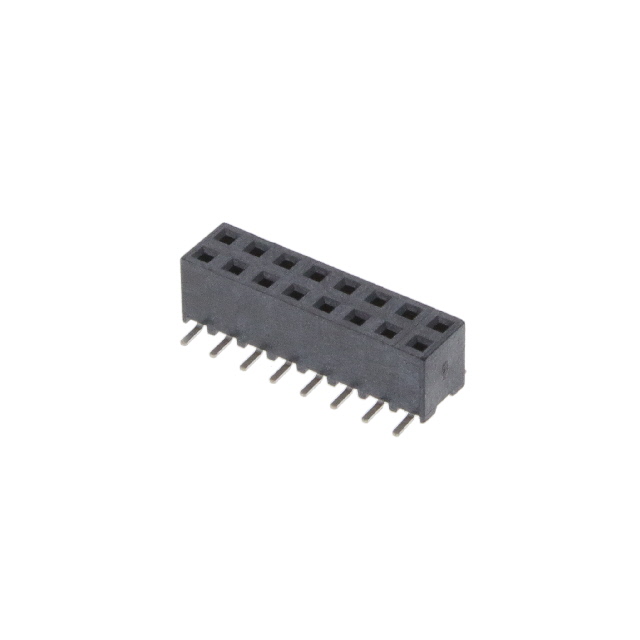

TE Connectivity Raychem Cable Protection 1-2307817-6	2	125 °C	-40 °C	3.94 µin	0.1 µm	Phosphor Bronze	Tin	Push-Pull	Solder	3 µm	118.1 µin	125 VDC	All	Square	Pick and Place	Liquid Crystal Polymer (LCP)	Gold		Surface Mount	2 A	0.079 in	2 mm	Receptacle Bottom or Top Entry	Female Socket	Black	UL94 V-0	0.177 in	4.5 mm	0.079 in	2 mm	16

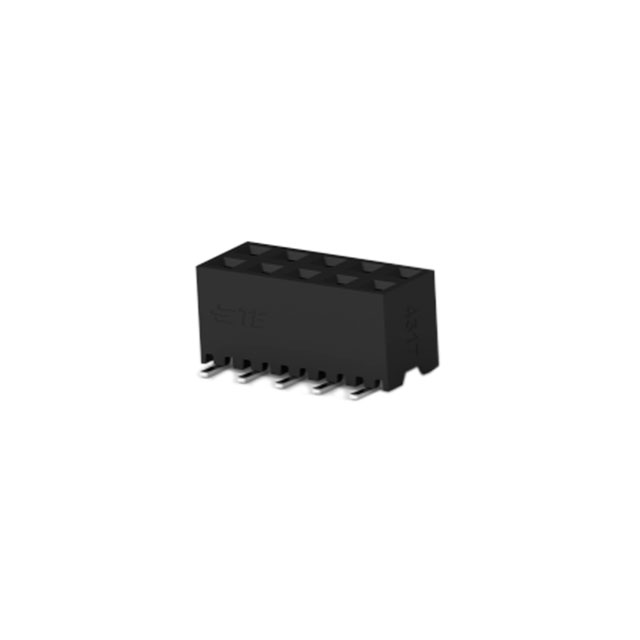

TE Connectivity Raychem Cable Protection 1-2307817-0	2	125 °C	-40 °C	3.94 µin	0.1 µm	Phosphor Bronze	Tin	Push-Pull	Solder	3 µm	118.1 µin	125 VDC	All	Square	Pick and Place	Liquid Crystal Polymer (LCP)	Gold	10	Surface Mount	2 A	0.079 in	2 mm	Receptacle Bottom or Top Entry	Female Socket	Black	UL94 V-0	0.177 in	4.5 mm	0.079 in	2 mm
