3325-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

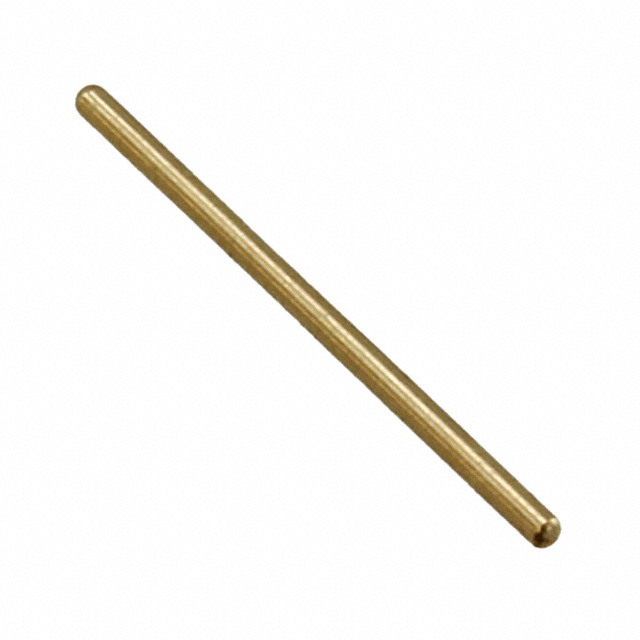

CONN PC PIN CIRC 0.025DIA GOLD
| Part | Length - Overall [custom] | Length - Overall [custom] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Terminal Style | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.5 " | 12.7 mm | 0.64 mm | 0.025 in | Smooth | Brass Alloy | 0.64 mm | 0.025 in | Gold | Solder | Through Hole | 0.25 Ám | 10 Áin | Single Post | Non-Insulated |
