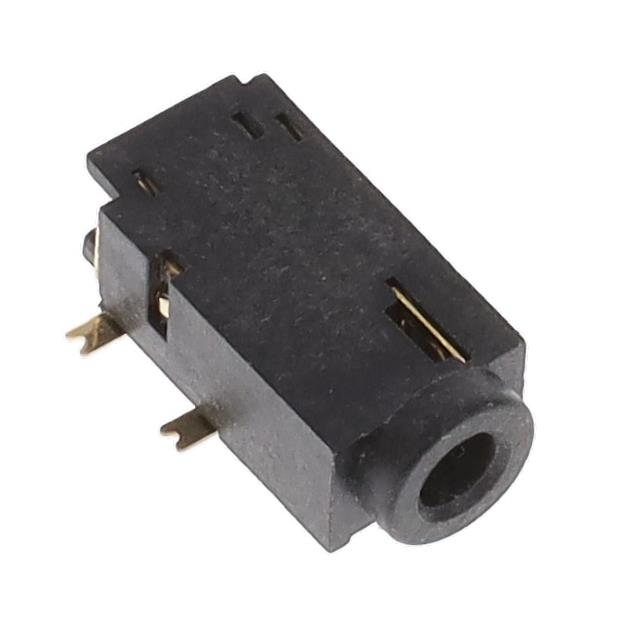

ASJ-103 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK
| Part | Housing Material | Contact Material | Voltage - Rated | Body Color | Current Rating (Amps) | Mating Length/Depth | Mating Length/Depth | Contact Material - Plating | Actual Diameter [diameter] | Actual Diameter [diameter] | Signal Lines | Internal Switch(s) | Gender | Connector Type | Features | Mounting Type | Insulation Color | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Thermoplastic | Brass | 30 V | Black | 0.5 A | 11 mm | 0.433 in | Gold | 2.6 mm | 0.102 in | Stereo (4 Conductor TRRS) | Single Switch | Female | Phone Jack | Board Guide | Right Angle Surface Mount | Black | Solder | -20 ░C | 70 °C | 5 | 4 | 2.5 mm | 0.098 " | Unshielded |
