2842291 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

46P,2MM,SHRD HDR,DRVT,0.38AU,TR

Part	Features	Termination	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Insulation Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Type	Connector Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Shape	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Style	Mounting Type
TE Connectivity Raychem Cable Protection 4-2842291-6	Pick and Place	Solder	Gold	0.079 in	2 mm	46	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
TE Connectivity Raychem Cable Protection 5-2842291-0	Pick and Place	Solder	Gold	0.079 in	2 mm	50	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
TE Connectivity Raychem Cable Protection 3-2842291-8	Pick and Place	Solder	Gold	0.079 in	2 mm	38	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
TE Connectivity Raychem Cable Protection 4-2842291-4	Pick and Place	Solder	Gold	0.079 in	2 mm	44	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole

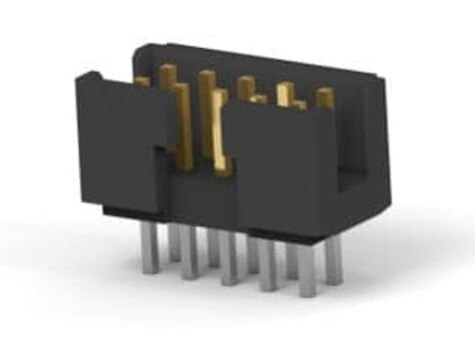

TE Connectivity Raychem Cable Protection 1-2842291-4	Pick and Place	Solder	Gold	0.079 in	2 mm	14	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
TE Connectivity Raychem Cable Protection 2-2842291-2	Pick and Place	Solder	Gold	0.079 in	2 mm	22 positions	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
TE Connectivity Raychem Cable Protection 2-2842291-0	Pick and Place	Solder	Gold	0.079 in	2 mm	20	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
TE Connectivity Raychem Cable Protection 3-2842291-6	Pick and Place	Solder	Gold	0.079 in	2 mm	36	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
TE Connectivity Raychem Cable Protection 2-2842291-6	Pick and Place	Solder	Gold	0.079 in	2 mm	26	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
TE Connectivity Raychem Cable Protection 4-2842291-8	Pick and Place	Solder	Gold	0.079 in	2 mm	48	All	Tin	2 çm	78.7 çin	Black	0.11 in	2.8 mm	Shrouded - 2 Wall	Thermoplastic	Copper Alloy	125 °C	-40 °C	125 VAC	Male Pin	Header	2	3.7 mm	0.146 in	6.05 mm	0.238 in	UL94 V-0	15 µin	0.38 µm	Detent Lock	Square	2 A	0.079 in	2 mm	Board to Board Cable	Through Hole
