LIQUID LEVEL CONTROL
Description
AI

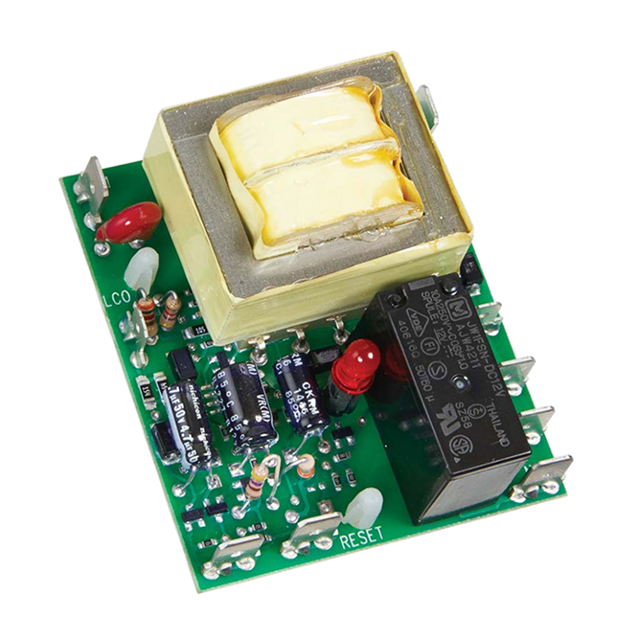

LLC843F26M is a low level, conductive liquid level control with ac input voltage of 120, a fixed time delay of 3 s, and sensing resistance fixed at 26 kΩ.
Beta
⌘K
LIQUID LEVEL CONTROL
LIQUID LEVEL CONTROL
| Part | Contact Form | Mounting Type | Termination Style | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Features | Sensitivity | Sensitivity | Type | Output Type | Voltage - Supply | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | SPDT (1 Form C) | Chassis Mount | 0.187 in 0.25 in | Quick Connect | 70 °C | -40 C | LED Indicator | Fixed | 26 kOhm | Constant Level | Relay | 120 VAC | 10 A 120 VAC |
