BG240V Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 23-26MM M40 S STEEL

Part	Panel Hole Size	Panel Hole Size	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Thread Length	Thread Length	Material	Type	Color	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min)

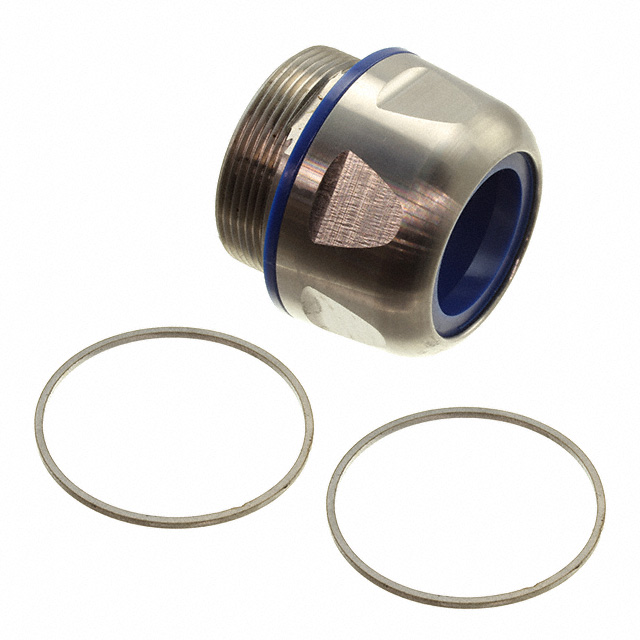

Pflitsch BG240VA26CP	1.575 in	40 mm	Sealing Ring	85 °C	-40 C	0.906 "	23 mm	M40x1.5	26 mm	1.024 in	IP66 IP68 IP69	11 mm	0.433 in	Stainless Steel	Cable Gland	Silver

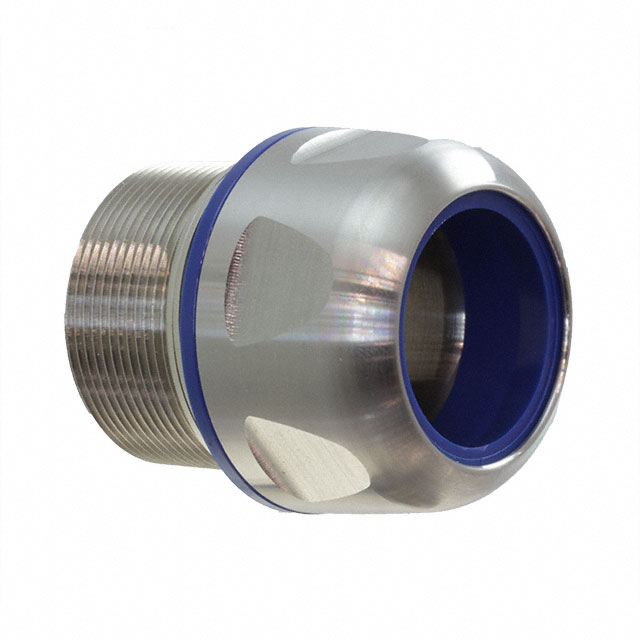

Pflitsch BG240VATRICP	1.575 in	40 mm	Sealing Ring	85 °C	-40 C			M40x1.5			IP68 IP69	22.5 mm	0.886 in	Brass Nickel Plated	Cable Gland	Silver	29 mm	1.142 in	1.024 in	26 mm

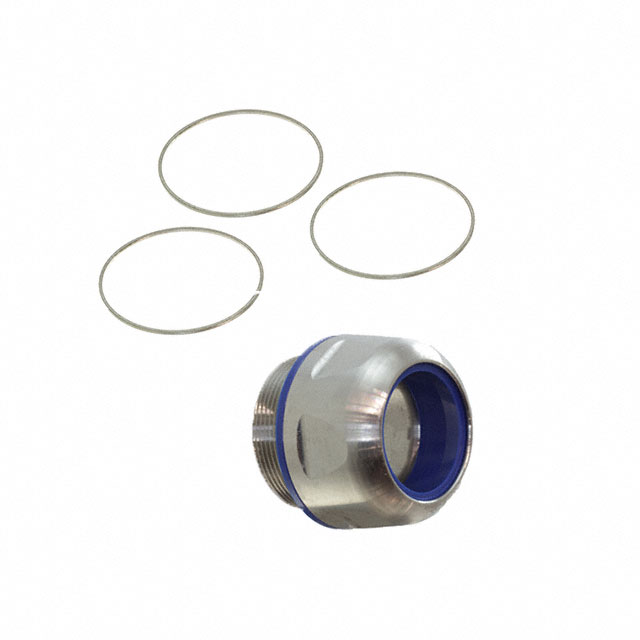

Pflitsch BG240VACP	1.575 in	40 mm	Sealing Ring	85 °C	-40 C			M40x1.5			IP66 IP68 IP69	11 mm	0.433 in	Stainless Steel	Cable Gland	Silver	29 mm	1.142 in	1.024 in	26 mm
