GWE18 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN PCI EXP FMALE 36POS 0.039

Part	Material - Insulation	Contact Type	Read Out	Termination	Contact Finish	Pitch	Pitch	Number of Rows [custom]	Gender	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Card Thickness	Card Thickness	Contact Finish Thickness	Card Type	Contact Material	Number of Positions	Color

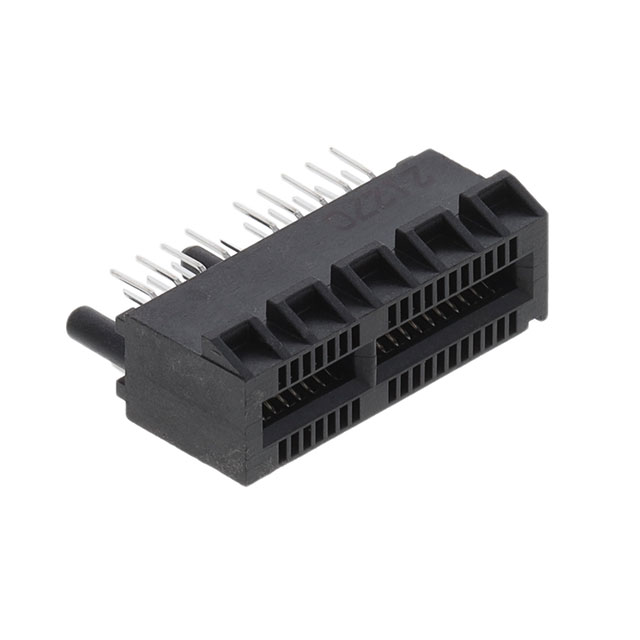

Sullins Connector Solutions GWE18DHHN-T931	Polyamide (PA9T) Nylon 9T	Cantilever	Dual	Solder Staggered	Gold	1 mm	0.039 in	2	Female	Board Guide Locking Ramp	-65 ░C	125 °C	Through Hole	1.57 mm	0.062 in	Flash	PCI Express™	Phosphor Bronze	36

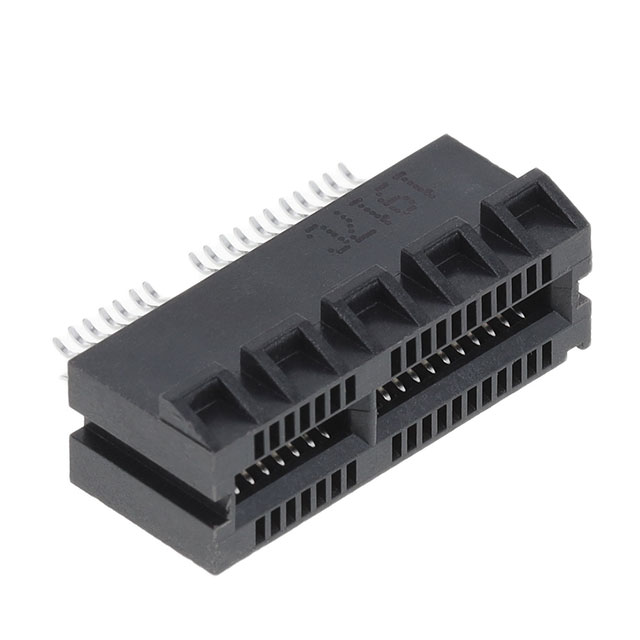

Sullins Connector Solutions GWE18DHRN-T941	Polyamide (PA9T) Nylon 9T	Cantilever	Dual	Solder	Gold	1 mm	0.039 in	2	Female	Cap Card Extender Locking Ramp	-10 °C	85 °C	Board Edge Straddle Mount	1.57 mm	0.062 in	Flash	PCI Express™	Phosphor Bronze	36	Black
Sullins Connector Solutions GWE18DHHN-T911	Polyamide (PA9T) Nylon 9T	Cantilever	Dual	Solder Staggered	Gold	1 mm	0.039 in	2	Female	Board Guide Locking Ramp	-65 ░C	125 °C	Through Hole	1.57 mm	0.062 in	Flash	PCI Express™	Phosphor Bronze	36

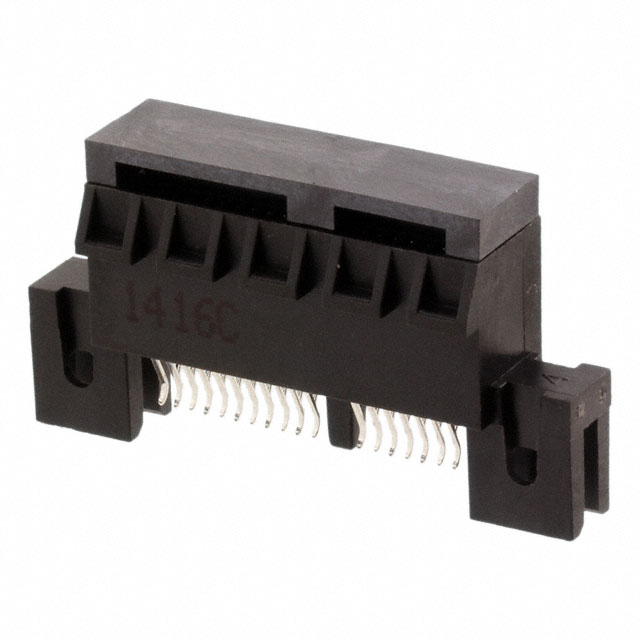

Sullins Connector Solutions GWE18DHRQ-T941	Polyamide (PA9T) Nylon 9T	Cantilever	Dual	Solder	Gold	1 mm	0.039 in	2	Female	Cap Card Extender Locking Ramp	-10 °C	85 °C	Board Edge Straddle Mount	1.57 mm	0.062 in	Flash	PCI Express™	Phosphor Bronze	36	Black
Sullins Connector Solutions GWE18DHFN-T951	Polyamide (PA9T) Nylon 9T	Cantilever	Dual	Solder	Gold	1 mm	0.039 in	2	Female	Board Guide	-10 °C	85 °C	Surface Mount	1.57 mm	0.062 in	Flash	PCI Express™	Phosphor Bronze	36	Black

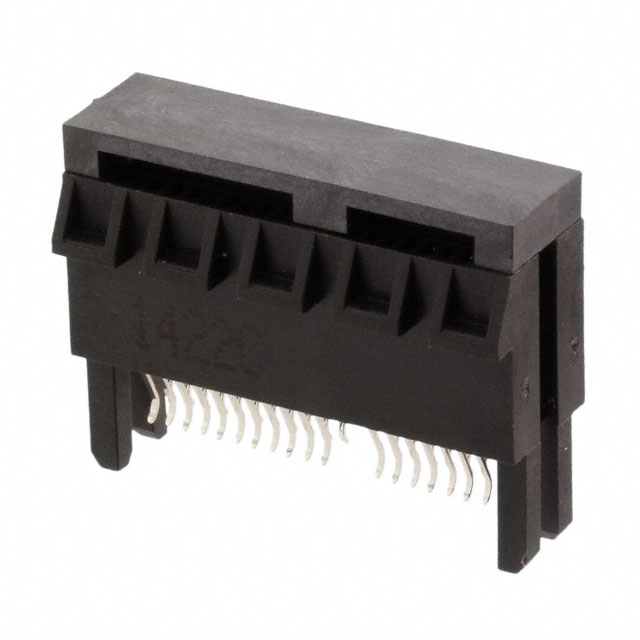

Sullins Connector Solutions GWE18DHRN-T9410	Polyamide (PA9T) Nylon 9T	Cantilever	Dual	Solder	Gold	1 mm	0.039 in	2	Female	Cap Card Extender Locking Ramp	-10 °C	85 °C	Board Edge Straddle Mount	1.57 mm	0.062 in	Flash	PCI Express™	Phosphor Bronze	36	Black
