B72205S Series

Catalog

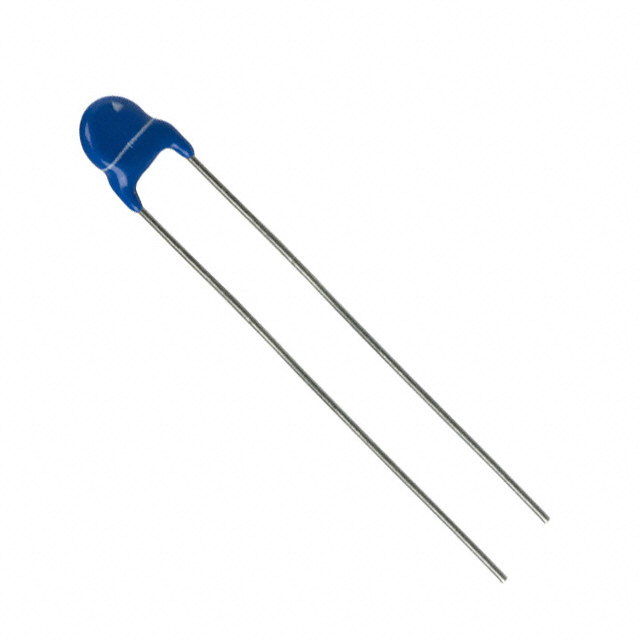

VARISTOR 150V 400A DISC 5MM

Part	Current - Surge	Mounting Type	Varistor Voltage (Typ)	Energy	Capacitance @ Frequency	Varistor Voltage (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Package / Case	Number of Circuits	Maximum DC Volts [Max]	Varistor Voltage (Max) [Max]	Maximum DC Volts
EPCOS - TDK Electronics B72205S0950K111	400 A	Through Hole	150 V	3.4 J	1 kHz 185 pF	165 V	-40 °C	105 °C	95 V	135 V	Disc 5mm	1	125 V
EPCOS - TDK Electronics B72205S0300K101	100 A	Through Hole	47 V	0.9 J	720 pF		-40 °C	105 °C	30 V	42.3 V	Disc 5mm	1		51.7 V	38 V
EPCOS - TDK Electronics B72205S0131K101	400 A	Through Hole	205 V	4.2 J	135 pF		-40 °C	105 °C	130 V	184.5 V	Disc 5mm	1	170 V	225.5 V
EPCOS - TDK Electronics B72205S0140K111	100 A	Through Hole	22 V	0.4 J	1 kHz 1450 pF		-40 °C	105 °C	14 V	19.8 V	Disc 5mm	1	18 V	24.2 V
EPCOS - TDK Electronics B72205S0600K111	400 A	Through Hole	100 V	2.2 J	1 kHz 250 pF		-40 °C	105 °C	60 V	90 V	Disc 5mm	1		110 V	85 V
EPCOS - TDK Electronics B72205S0400K211	100 A	Through Hole	68 V	1.3 J	520 pF		-40 °C	105 °C	40 V	61.2 V	Disc 5mm	1	56 V	74.8 V
EPCOS - TDK Electronics B72205S2211K101	800 A	Through Hole	330 V	9.5 J	1 kHz 75 pF		-40 °C	105 °C	210 V	297 V	Disc 5mm	1	270 V	363 V
EPCOS - TDK Electronics B72205S0110K111	100 A	Through Hole	18 V	0.3 J	1 kHz 1750 pF		-40 °C	105 °C	11 V	16.2 V	Disc 5mm	1	14 V	19.8 V
EPCOS - TDK Electronics B72205S0141K211	400 A	Through Hole	220 V	4.5 J	1 kHz 125 pF	242 V	-40 °C	105 °C	140 V	198 V	Disc 5mm	1	180 V
EPCOS - TDK Electronics B72205S2271K311	800 A	Through Hole	430 V	13.5 J	60 pF	473 V	-40 °C	105 °C	275 V	387 V	Disc 5mm	1	350 V
