TR9KE1500 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 18W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Cord Length	Cord Length	Input Connector	Polarization	Voltage - Output	Approval Agency	Region Utilized	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption	Efficiency	Form	Output Connector [diameter]	Output Connector	Output Connector [x]	Current - Output (Max) [Max]	Input Type	Applications	Standard Number	Size / Dimension [z]	Size / Dimension [y]

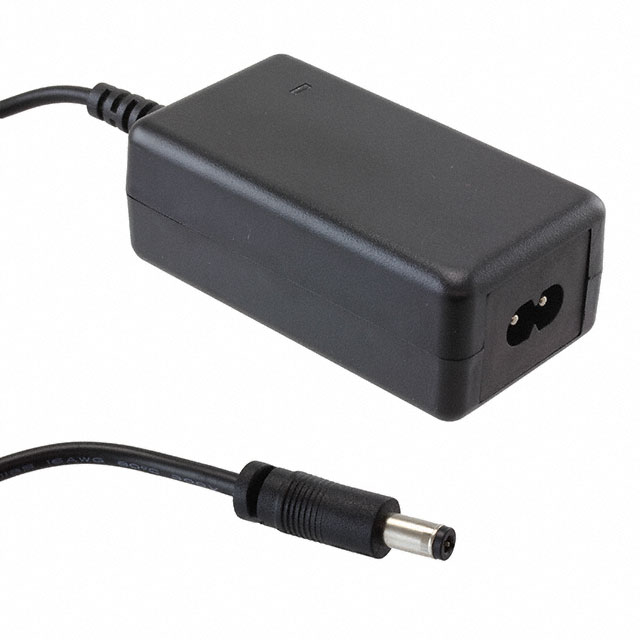

GlobTek, Inc. TR9KE1500LCP-IMR6B	264 VAC	90 VAC	18 W	1.2 m	47.2 in	IEC 320-C8	Positive Center	12 V	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI	International	1.26 "	1.85 in	47 mm	87 mm	32 mm	3.43 "	-20 ░C	40 °C	75 mW	Level VI	Desktop (Class II)	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.5 A	Cord (Sold Separately)	Household Appliances ITE (Commercial) Medical	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1

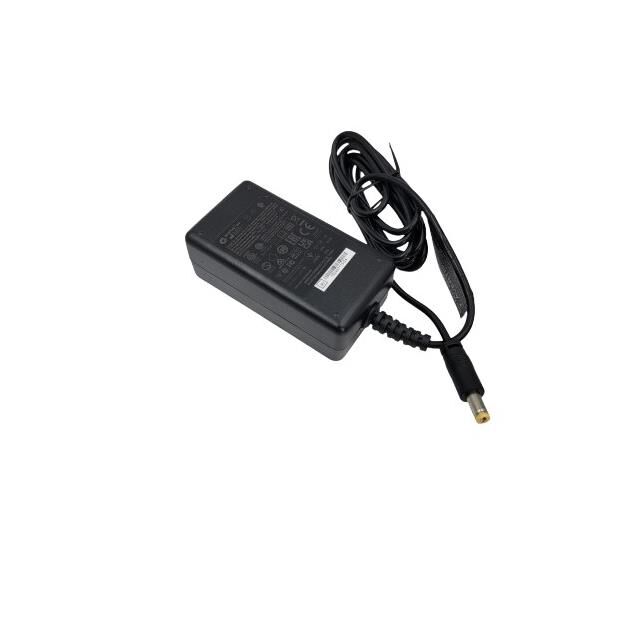

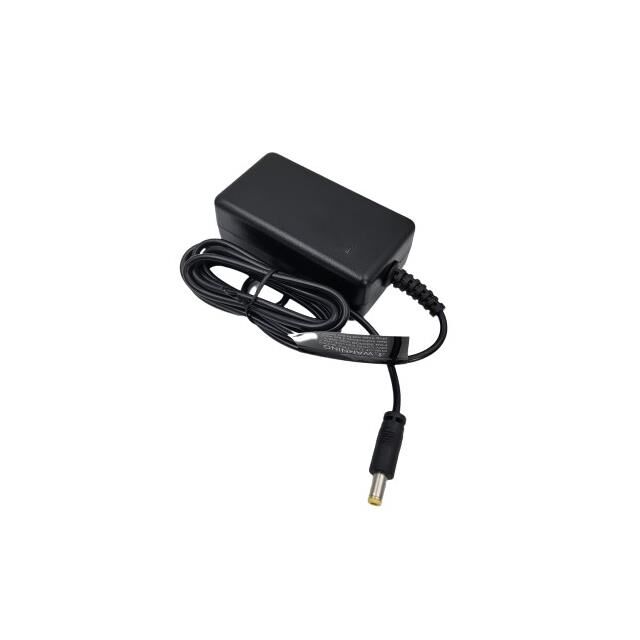

GlobTek, Inc. TR9KE1500CCP-IMR6B	264 VAC	90 VAC	18 W	1.2 m	47.2 in	IEC 320-C8	Positive Center	12 V	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI	International	1.26 "	1.85 in	47 mm	87 mm	32 mm	3.43 "	-20 ░C	40 °C	75 mW	Level VI	Desktop (Class II)	2.1 mm 5.5 mm	Barrel Plug	11 mm	1.5 A	Cord (Sold Separately)	Household Appliances ITE (Commercial) Medical	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1

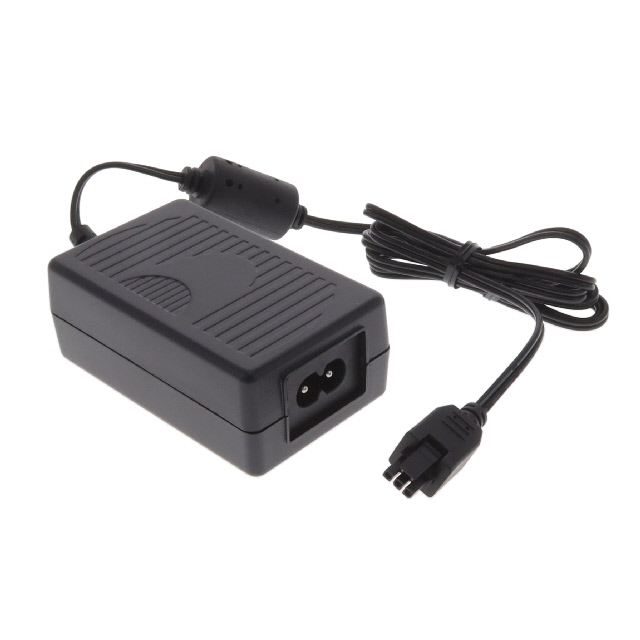

GlobTek, Inc. TR9KE1500MLX-N(R6B)	264 VAC	90 VAC	18 W	1.2 m	47.2 in	IEC 320-C8		12 V	CB CE cULus EAC LPS PSE S-Mark UkrSEPRO VCCI	International	1.22 in	1.97 in		80.5 mm		3.17 in	0 °C	40 °C		CoC Tier 2 Level VI	Desktop (Class II)		3 Position Rectangular		1.5 A	Cord (Sold Separately)	ITE (Commercial)	60950-1	31 mm	50 mm

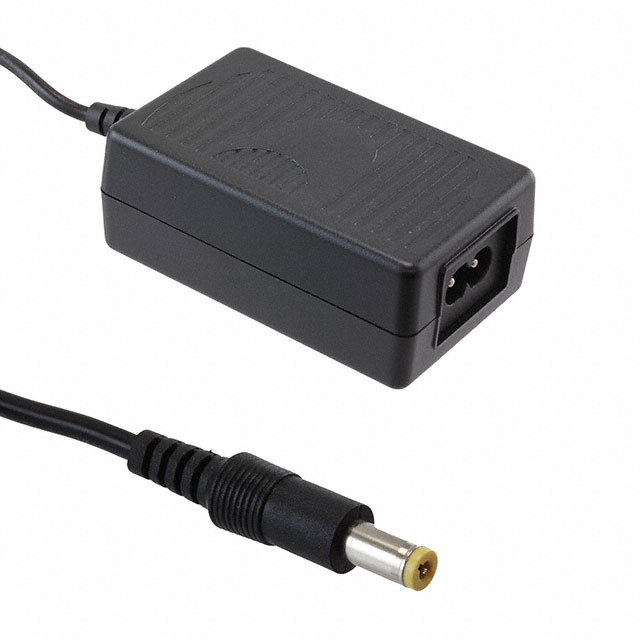

GlobTek, Inc. TR9KE1500CCP-N(R6B)	264 VAC	90 VAC	18 W	1.83 m	72 in	IEC 320-C8	Positive Center	12 V	CB CE cULus EAC LPS PSE S-Mark UkrSEPRO VCCI	International	1.22 in	3.19 "		50 mm		1.97 "	0 °C	40 °C		Level VI	Desktop (Class II)	2.1 mm 5.5 mm	Barrel Plug	11 mm	1.5 A	Cord (Sold Separately)	ITE (Commercial)	60950-1	31 mm	81 mm

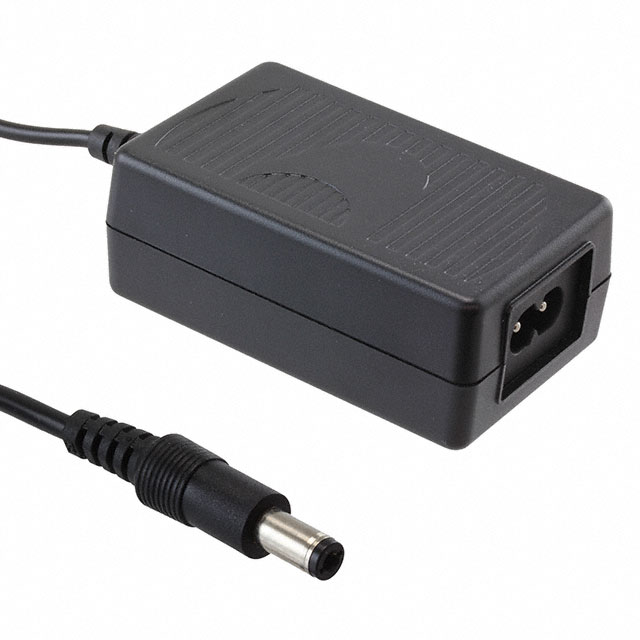

GlobTek, Inc. TR9KE1500LCP-N(R6B)	264 VAC	90 VAC	18 W	1.83 m	72 in	IEC 320-C8	Positive Center	12 V	CB CE cULus EAC LPS PSE S-Mark UkrSEPRO VCCI	International	1.22 in	3.19 "		50 mm		1.97 "	0 °C	40 °C		Level VI	Desktop (Class II)	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.5 A	Cord (Sold Separately)	ITE (Commercial)	60950-1	31 mm	81 mm
