XZFBBA07 Series

Manufacturer: SunLED

Catalog

DISPLAY 7SEG 0.3" SGL BLUE 10SMD

Part	Millicandela Rating	Wavelength - Peak	Package / Case	Display Type	Number of Characters	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Common Pin	Power Dissipation (Max)	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Color	Number of Characters
SunLED XZFBBA07A	2.5 mcd	468 nm	10-SMD No Lead	7-Segment	1	0.148 in	7.3 mm	12 mm	0.472 in	3.75 mm	0.287 in	Common Anode	120 mW	3.05 V	7.62 mm	0.3 in	10 mA	Blue

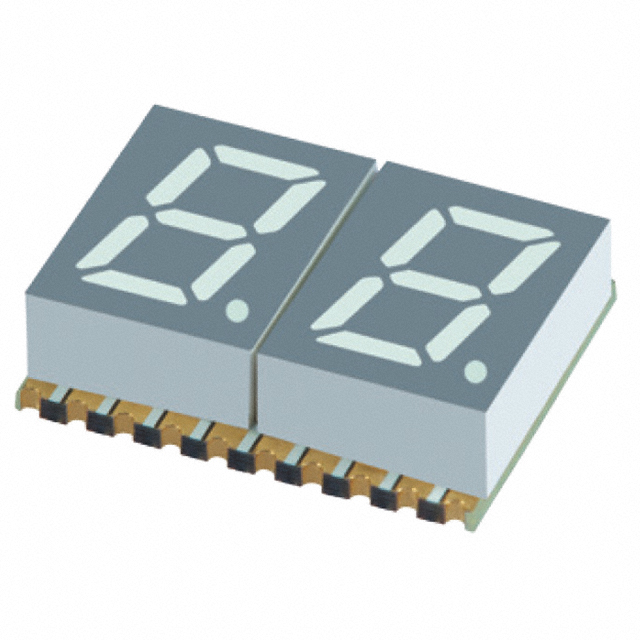

SunLED XZFBBA07A2	2 mcd	468 nm	20-SMD No Lead	7-Segment		3.75 mm	0.583 in	0.472 in	12 mm	0.148 in	14.8 mm	Common Anode	120 mW	3.05 V	7.62 mm	0.3 in	10 mA	Blue	2

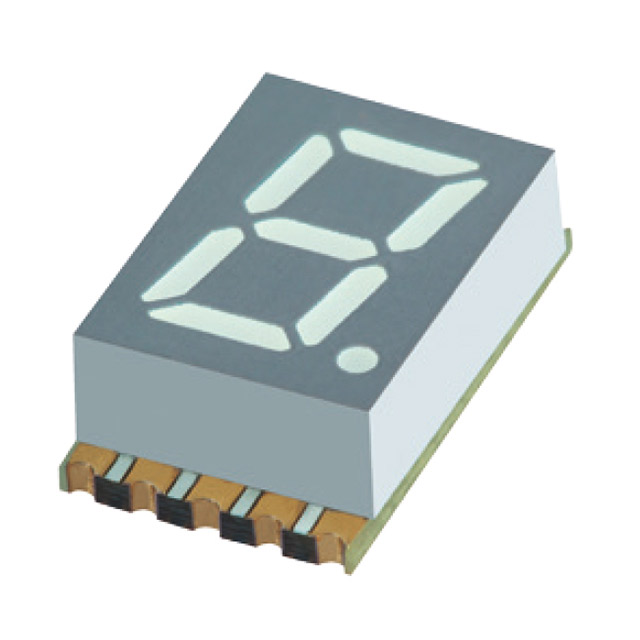

SunLED XZFBBA07C	2 mcd	468 nm	10-SMD No Lead	7-Segment	1	0.148 in	7.3 mm	10 mm	0.394 in	3.75 mm	0.287 in	Common Cathode	120 mW	3.05 V	7.62 mm	0.3 in	10 mA	Blue

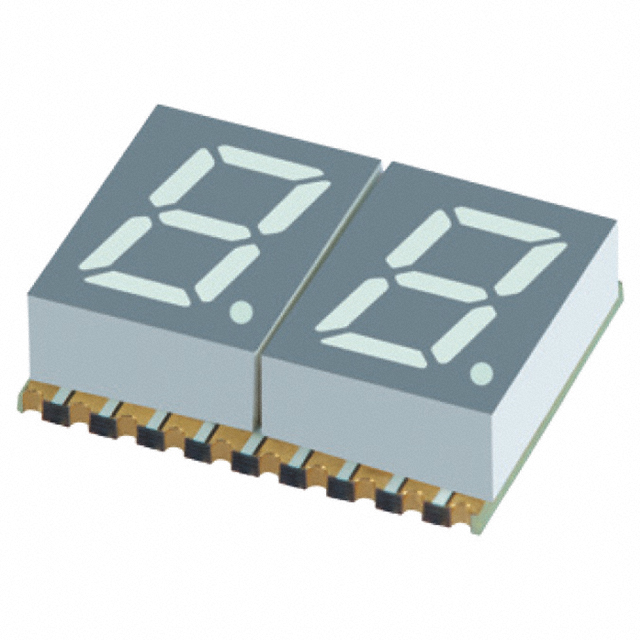

SunLED XZFBBA07C2	2 mcd	468 nm	20-SMD No Lead	7-Segment		3.75 mm	0.583 in	0.472 in	12 mm	0.148 in	14.8 mm	Common Cathode	120 mW	3.05 V	7.62 mm	0.3 in	10 mA	Blue	2
