333-022 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 22POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Number of Positions/Bay/Row | Contact Material | Mounting Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Features | Read Out | Termination | Number of Positions | Gender | Number of Rows [custom] | Color | Contact Finish | Contact Type | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

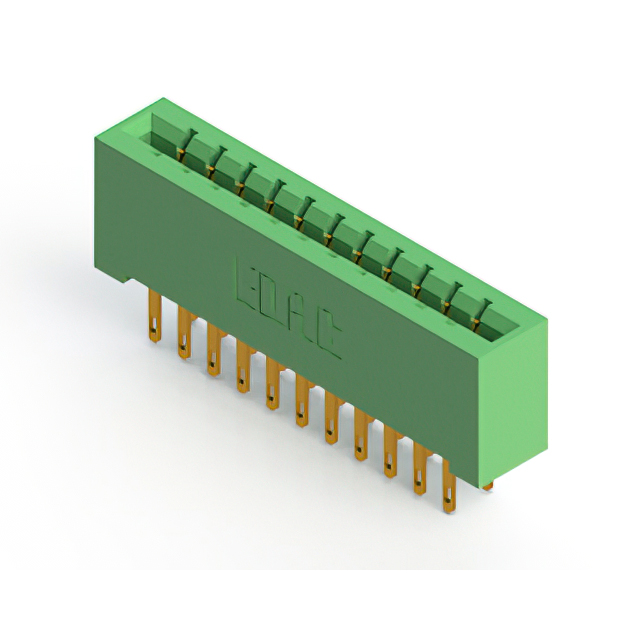

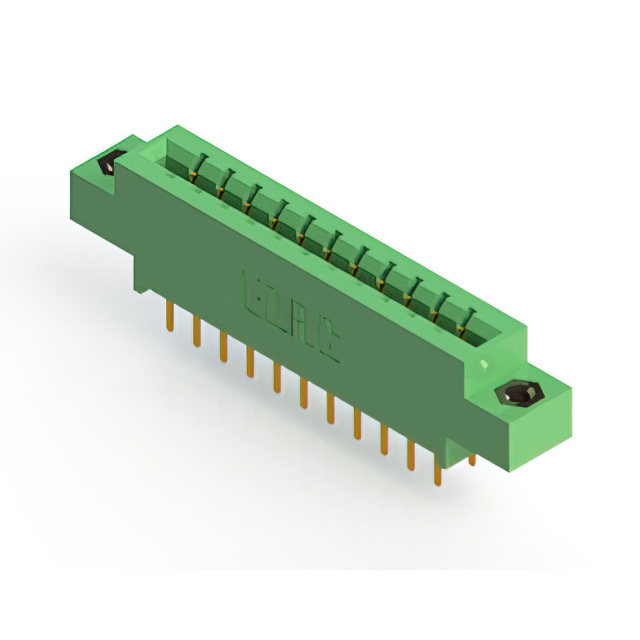

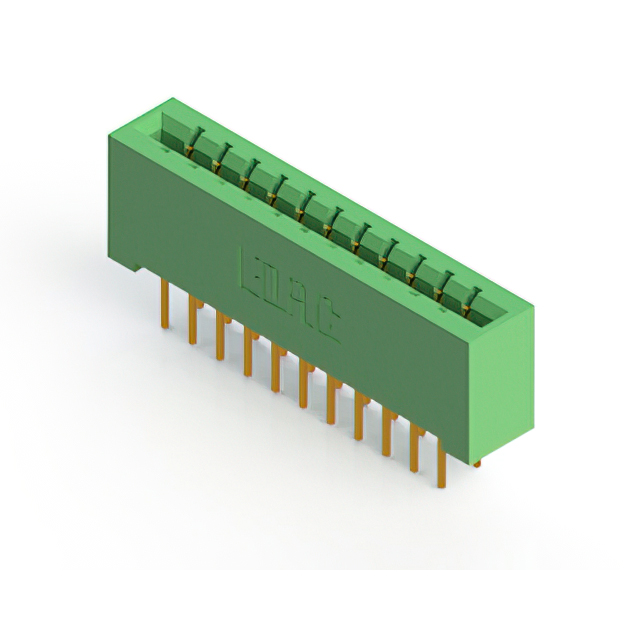

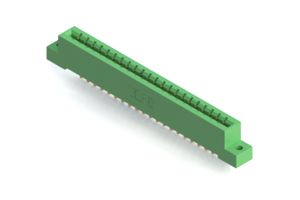

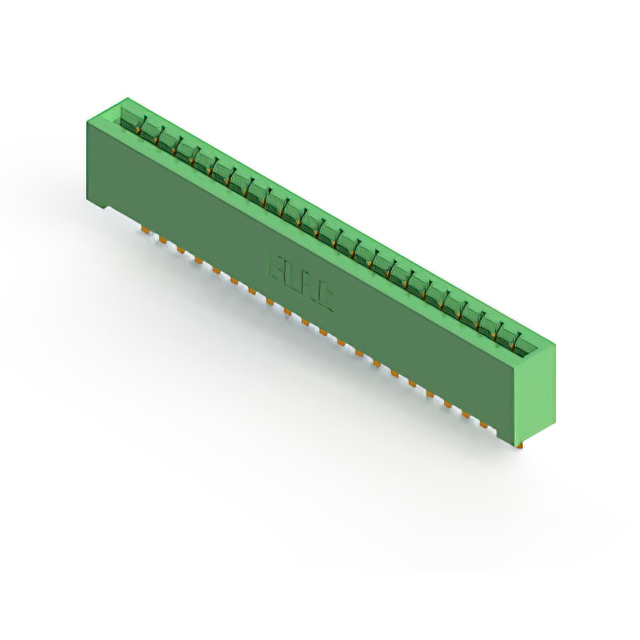

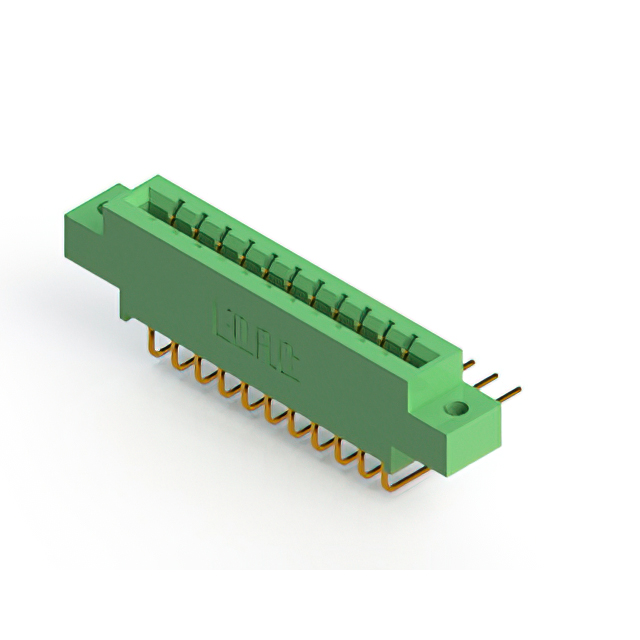

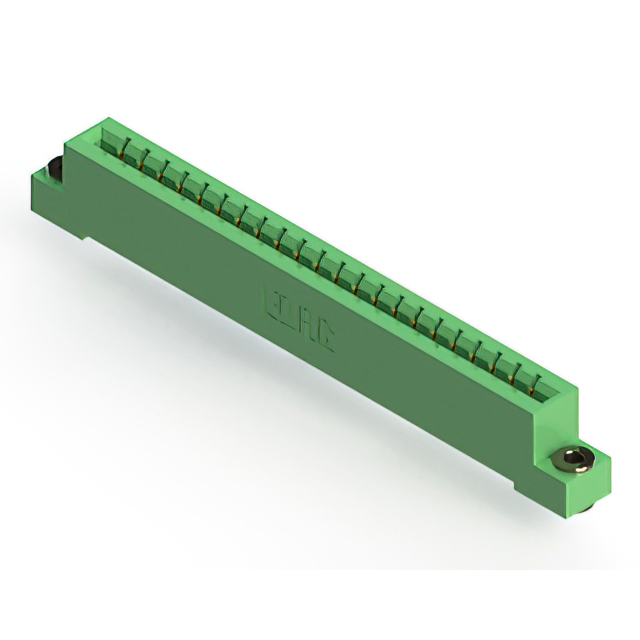

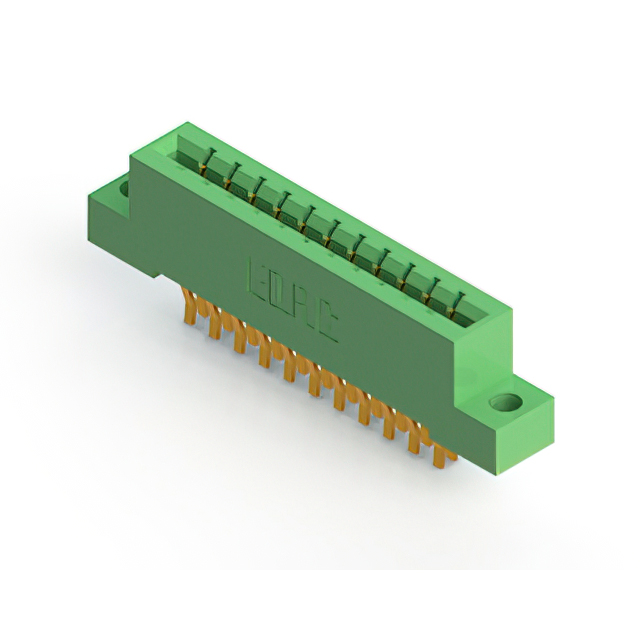

 EDAC Inc. | Polyester Thermoplastic | 2 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | -40 C | 105 ░C | 3.96 mm | 0.156 in | 11 | Copper Alloy | Board Edge Straddle Mount | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Dual | Solder | 22 | Female | 2 | Green | Gold | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | 11 | Copper Alloy | Through Hole | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 22 | Female | 2 | Green | Gold | Cantilever | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.96 mm | 0.156 in | 11 | Copper Alloy | Right Angle Through Hole | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 22 | Female | 2 | Green | Gold | Cantilever | ||||
 EDAC Inc. | Polyester Thermoplastic | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.96 mm | 0.156 in | 22 | Copper Alloy | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Solder | 22 | Female | Green | Gold | Cantilever | 1 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | 11 | Copper Alloy | Through Hole | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder Eyelet(s) | 22 | Female | 2 | Green | Gold | Cantilever | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.96 mm | 0.156 in | 22 | Copper Alloy | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Solder Eyelet(s) | 22 | Female | Green | Gold | Cantilever | 1 | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | 3.96 mm | 0.156 in | 11 | Copper Alloy | Through Hole | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 22 | Female | 2 | Green | Gold | Cantilever | |||||
 EDAC Inc. | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.96 mm | 0.156 in | 22 | Copper Alloy | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Solder | 22 | Female | Green | Gold | Cantilever | 1 | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | 3.96 mm | 0.156 in | 22 | Copper Alloy | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Wire Wrap | 22 | Female | Green | Gold | Cantilever | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | M3 Threaded Insert Top Mount Opening | -40 C | 105 ░C | 3.96 mm | 0.156 in | 11 | Copper Alloy | Through Hole | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Solder | 22 | Female | 2 | Green | Gold | Cantilever |
