HS2L3F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

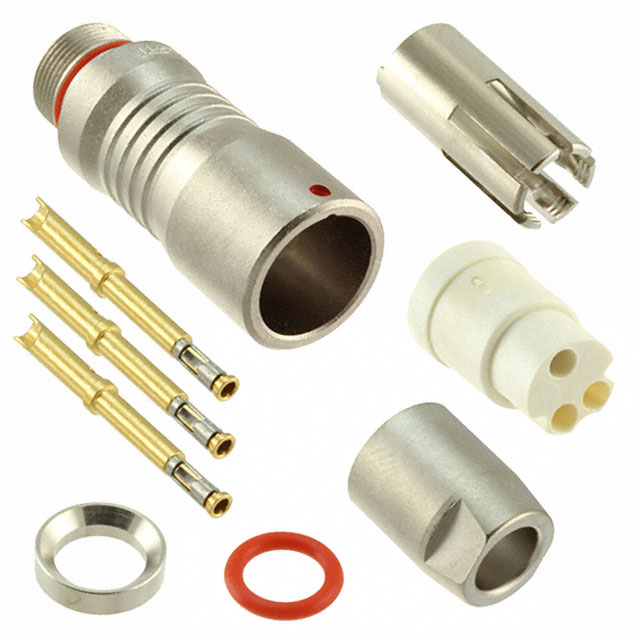

CONN RCPT FMALE 3POS GOLD CRIMP
| Part | Fastening Type | Material Flammability Rating | Connector Type | Shell Material | Shielding | Ingress Protection | Shell Finish | Voltage Rating | Applications | Primary Material | Contact Material | Color | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Mounting Type | Insert Material | Contact Finish - Mating | Orientation | Termination | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Push-Pull | UL94 HF-1 | Receptacle Female Sockets | Copper Alloy | Shielded | IP66 IP67 IP68 | Electroless Nickel | 125 VAC | Agriculture Audio General Medical Testing Equipment & Measurement | Metal | Copper Alloy | Silver | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | Gold | Keyed | Crimp Solder Cup | 135 °C | -40 °C |
