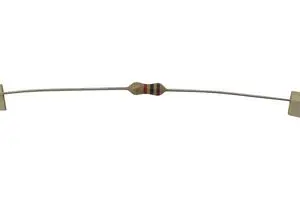

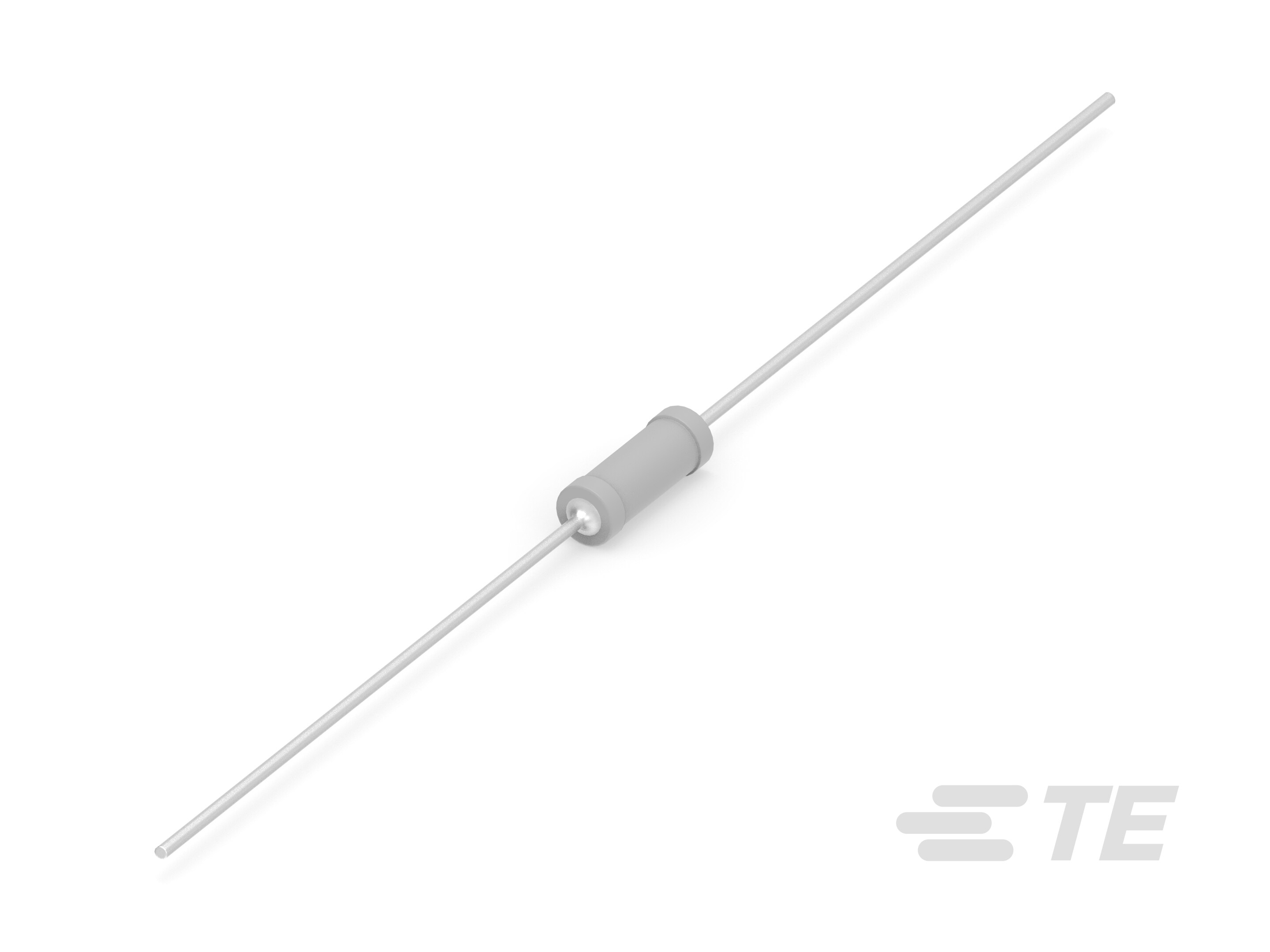

NEOHM CFR Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

RES 1.2M OHM 5% 1/4W AXIAL

...

Part	Supplier Device Package	Composition	Power (Watts)	Power (Watts)	Tolerance	Resistance	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Temperature Coefficient	Size / Dimension [z]	Size / Dimension [z]
TE Connectivity AMP Connectors CFR16J1M2	Axial	Carbon Film	0.25 W	0.25 W	5 %	1.2 MOhms	-1500 ppm/°C	0 ppm/°C	0.138 in	3.5 mm	1.85 mm	0.073 "	Axial	155 C	-55 C	2
TE Connectivity AMP Connectors CFR50J2R7	Axial	Carbon Film	0.5 W	0.5 W	5 %	2.7 Ohms			0.354 in	9 mm	3 mm	0.118 in	Axial	155 C	-55 C	2	350 ppm/°C
TE Connectivity AMP Connectors CFR100G56R	Axial	Carbon Film	1 W		2 %	56 Ohms			0.472 L	12 mm	5 mm	0.197 Dia	Axial	155 C	-55 C	2	-450 ppm/°C 0 ppm/°C
TE Connectivity AMP Connectors CFR25J82K	Axial	Carbon Film	0.333 W	0.3333333333333333 W	5 %	82 kOhms					2.5 mm	0.098 in	Axial	155 C	-55 C	2	-450 ppm/°C 0 ppm/°C	6.8 mm	0.268 "
TE Connectivity AMP Connectors CFR25J820K	Axial	Carbon Film	0.333 W	0.3333333333333333 W	5 %	820 kOhms	-700 ppm/°C	0 ppm/°C			2.5 mm	0.098 in	Axial	155 C	-55 C	2		6.8 mm	0.268 "
TE Connectivity AMP Connectors CFR16J680R	Axial	Carbon Film	0.25 W	0.25 W	5 %	680 Ohms			0.138 in	3.5 mm	1.85 mm	0.073 "	Axial	155 C	-55 C	2	-450 ppm/°C 0 ppm/°C
TE Connectivity AMP Connectors CFR25J6K8	Axial	Carbon Film	0.333 W	0.3333333333333333 W	5 %	6.8 kOhms					2.5 mm	0.098 in	Axial	155 C	-55 C	2	-450 ppm/°C 0 ppm/°C	6.8 mm	0.268 "
TE Connectivity AMP Connectors CFR200J100K	Axial	Carbon Film	2 W		5 %	100 kOhms	-700 ppm/°C	0 ppm/°C	0.63 in	16 mm	5.5 mm	0.217 in	Axial	155 C	-55 C	2
TE Connectivity AMP Connectors CFR50J6K8	Axial	Carbon Film	0.5 W	0.5 W	5 %	6.8 kOhms			0.354 in	9 mm	3 mm	0.118 in	Axial	155 C	-55 C	2	-450 ppm/°C 0 ppm/°C
TE Connectivity AMP Connectors CFR200J18K	Axial	Carbon Film	2 W		5 %	18 kOhms			0.63 in	16 mm	5.5 mm	0.217 in	Axial	155 C	-55 C	2	-450 ppm/°C 0 ppm/°C
