84826 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Catalog

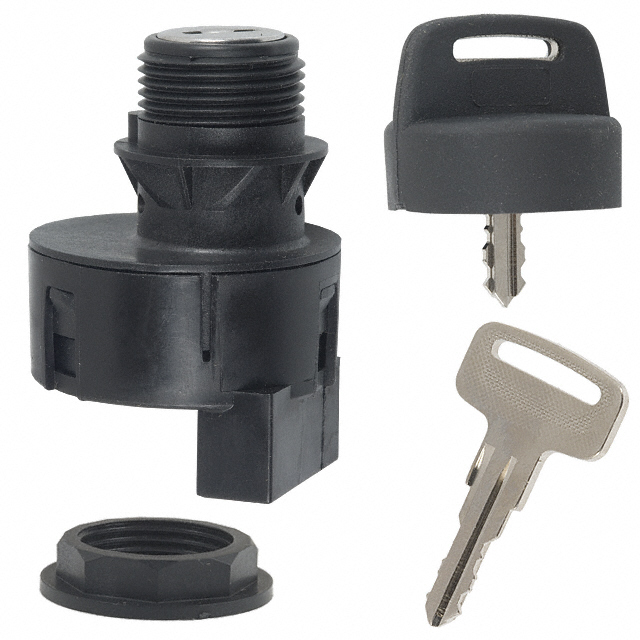

SWITCH KEYLOCK 3POS SPDT 20A 12V
| Part | Electrical Life | Depth Behind Flange | Mechanical Life | Voltage Rating - DC | Circuit | Mounting Type | Switch Function | Panel Cutout Dimensions [diameter] | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Timing | Angle of Throw | Contact Finish | Termination Style | Key Removable Positions [custom] | Actuator Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 25000 Steps | 43.43 mm | 25000 Steps | 12 V | SPDT | Panel Mount | Off-On-Mom | 22.35 mm | Brass | 85 °C | -40 C | Not Specified | 45 ° | Tin | Connector | Left | Flat Key | 20 A |
