ELSH-J41 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K

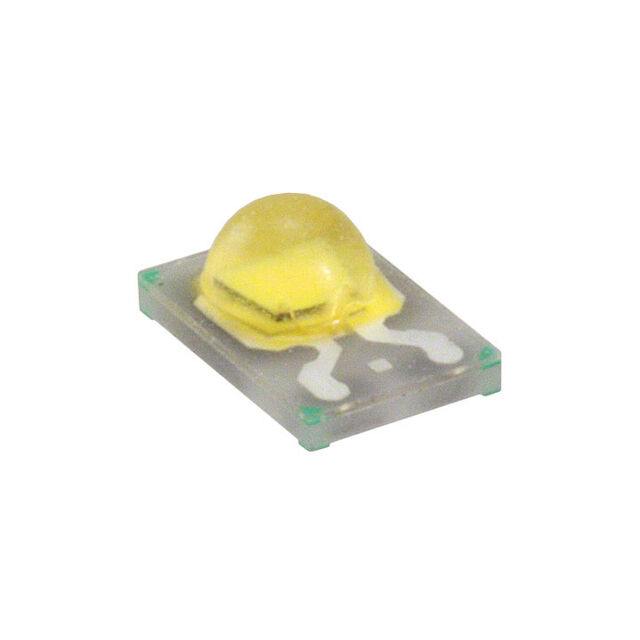

LED SHUEN NEUTRAL WHT 4000K 2SMD
| Part | Thermal Resistance of Package | Package / Case | Mounting Type | Color | Flux @ 85°C, Current - Test | Height - Seated (Max) [Max] | Height - Seated (Max) | Lumens/Watt @ Current - Test | Current - Max [Max] | CCT (K) | CCT (K) [Max] | CCT (K) [Min] | CRI (Color Rendering Index) | Viewing Angle | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Flux @ 25°C, Current - Test [Max] | Flux @ 25°C, Current - Test [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | 6 °C/W | 1812 (4532 Metric) | Surface Mount | Neutral White | 113 lm | 0.085 in | 2.15 mm | 50 lm/W | 750 mA | 4000 K | 4260 K | 3710 K | 75 | 120 ° | 0.12 in | 0.177 in | 3.05 mm | 4.5 mm | 3.7 V | 140 lm | 130 lm |
