CHM-22 Series

Catalog

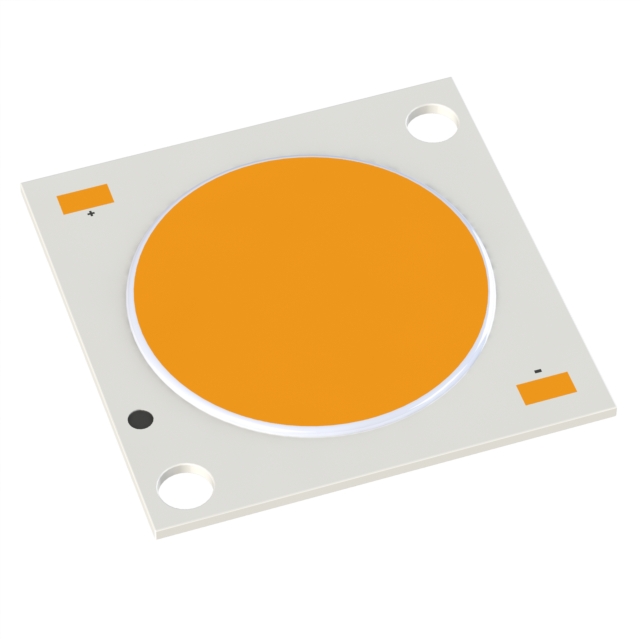

LED COB CHM22 COOL WHT SQU 5000K

Part	Configuration	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Current - Test	Luminous Flux @ Current/Temperature	CCT (K)	CCT (K)	CRI (Color Rendering Index)	Color	Height [z]	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Type	Temperature - Test	Lens Type	Viewing Angle	Lumens/Watt @ Current - Test
Luminus Devices Inc. CHM-22-50-80-36-AC00-F2-3	Square	28 mm	28 mm	3.8 A	1.92 A	8180 lm	5000 K	3-Step MacAdam Ellipse	80	Cool White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	122 lm/W
Luminus Devices Inc. CHM-22-30-80-36-AC02-F2-3	Square	28 mm	28 mm	3.8 A	1.92 A	7465 lm	3000 K	3-Step MacAdam Ellipse	80	Warm White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	111 lm/W
Luminus Devices Inc. CHM-22-40-70-36-AC00-F2-2	Square	28 mm	28 mm	3.84 A	1.92 A	8385 lm	4000 K	2-Step MacAdam Ellipse	70	Neutral White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	125 lm/W
Luminus Devices Inc. CHM-22-27-95-36-AC00-F2-3	Square	28 mm	28 mm	3.8 A	1.92 A	5200 lm	2700 K	3-Step MacAdam Ellipse	95	Warm White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	77 lm/W
Luminus Devices Inc. CHM-22-35-80-36-AC00-F2-2	Square	28 mm	28 mm	3.8 A	1.92 A	7730 lm	3500 K		80	Warm White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	115 lm/W
Luminus Devices Inc. CHM-22-30-90-36-AC00-F2-2	Square	28 mm	28 mm	3.8 A	1.92 A	6365 lm	3000 K		90	Warm White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	95 lm/W
Luminus Devices Inc. CHM-22-30-90-36-AC00-F2-3	Square	28 mm	28 mm	3.8 A	1.92 A	6365 lm	3000 K	3-Step MacAdam Ellipse	90	Warm White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	95 lm/W
Luminus Devices Inc. CHM-22-50-80-36-AC00-F2-5	Square	28 mm	28 mm	3.8 A	1.92 A	8180 lm	5000 K	5-Step MacAdam Ellipse	80	Cool White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	122 lm/W
Luminus Devices Inc. CHM-22-30-80-36-AC00-F2-2	Square	28 mm	28 mm	3.8 A	1.92 A	7465 lm	3000 K		80	Warm White	1.37 mm	22 mm	35 V	Chip On Board (COB)	85 °C	Flat	120 °	111 lm/W
